Name: BARTH 0850-0560
SKU: 457823

Product Details ＋

Product Attribute	Attribute Value
Series

Overview

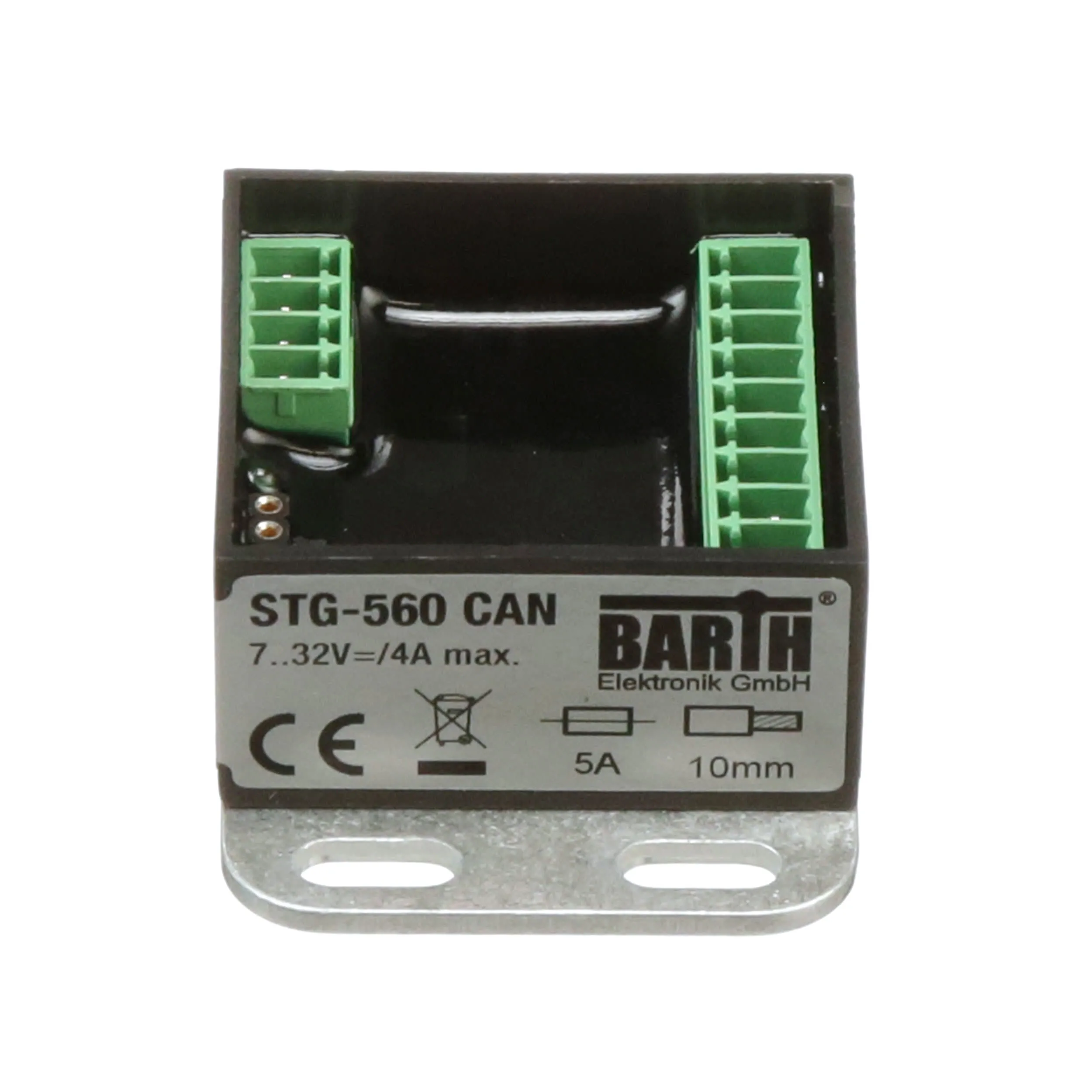

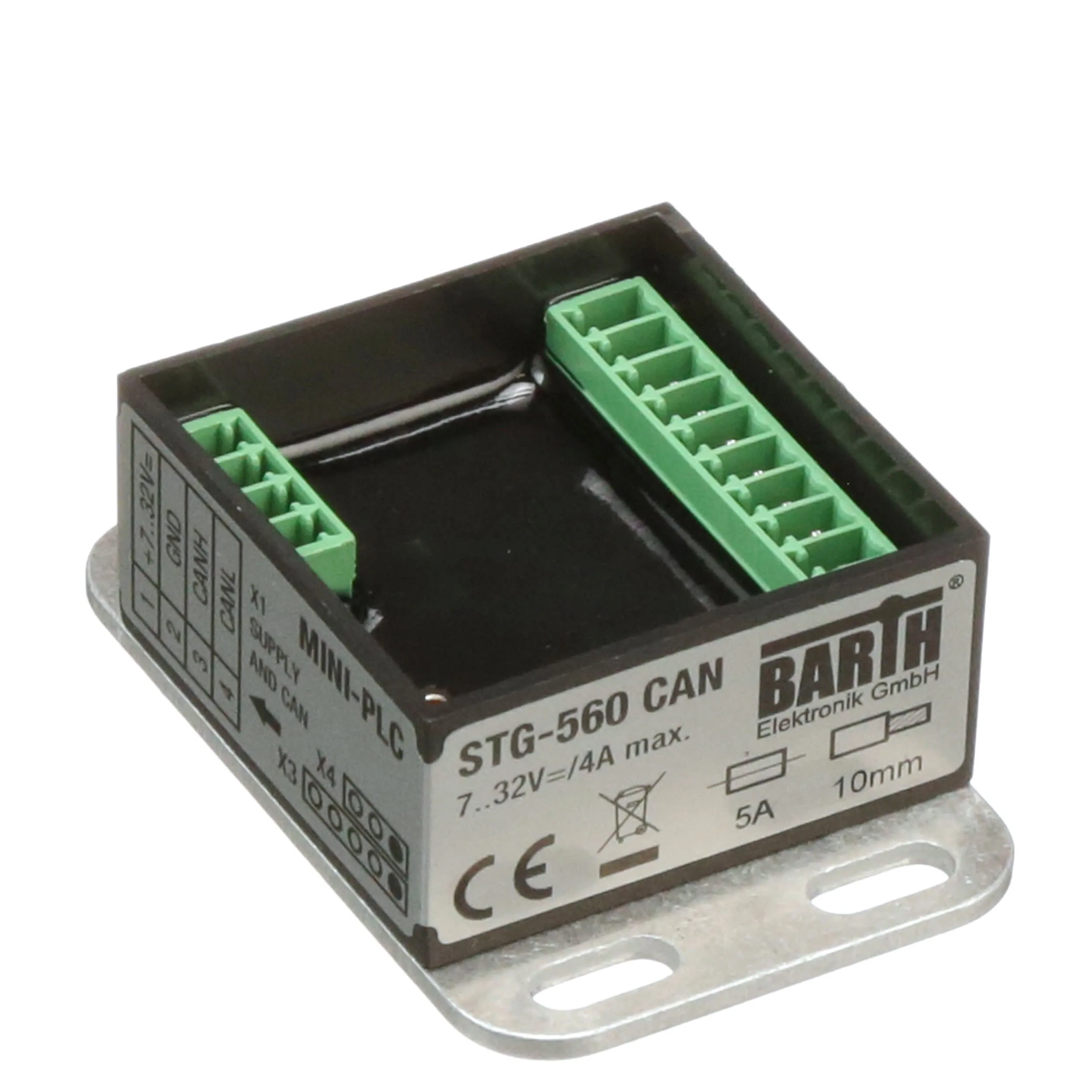

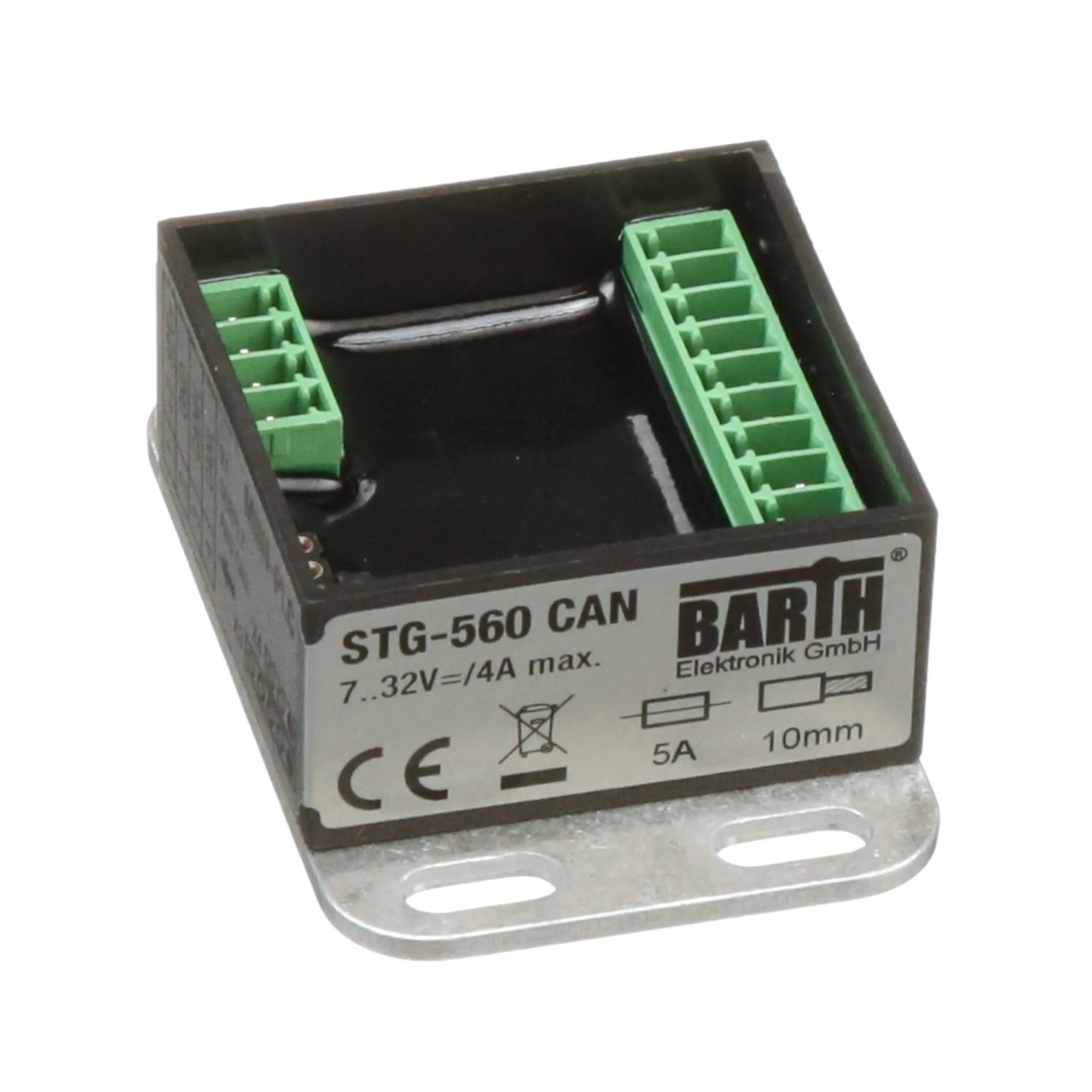

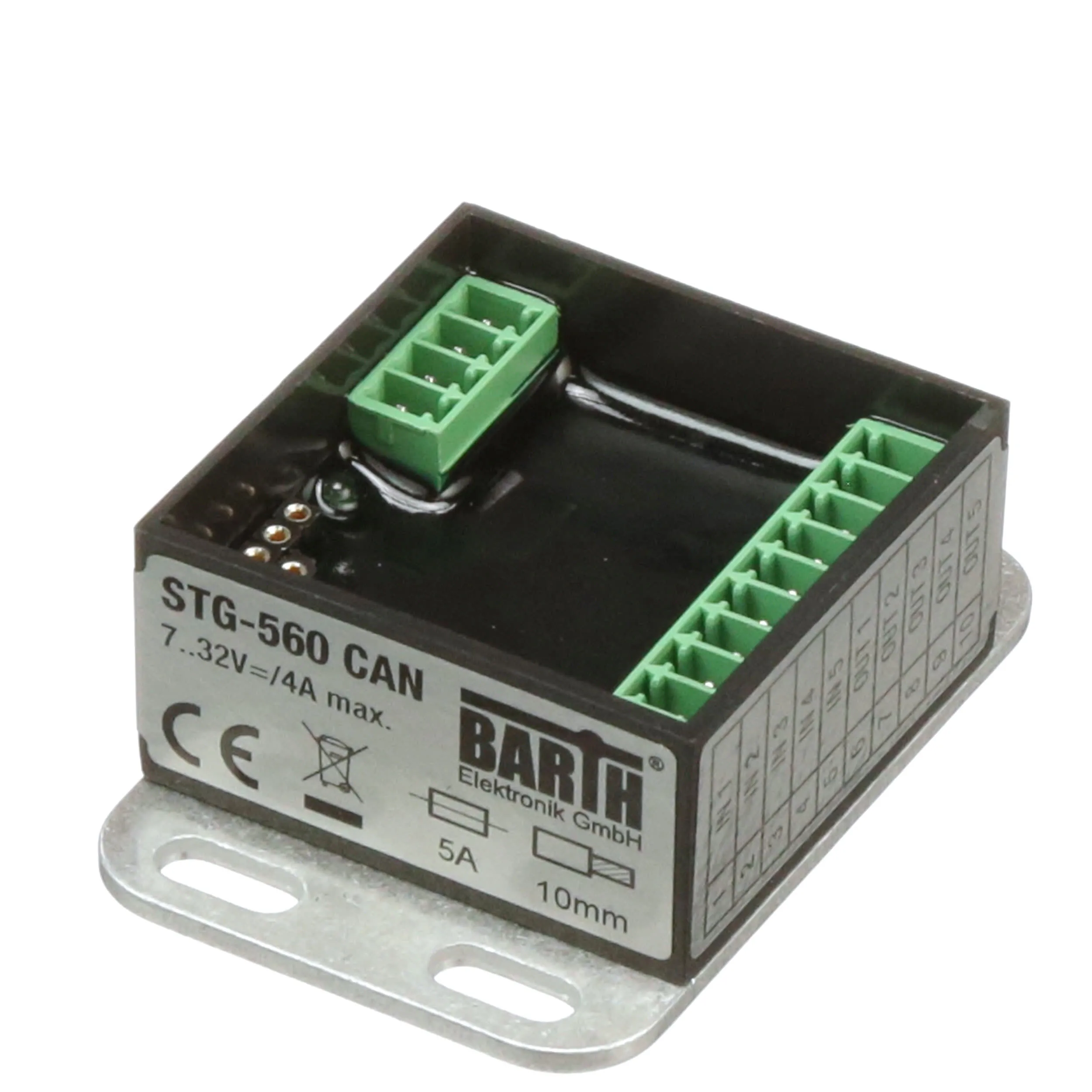

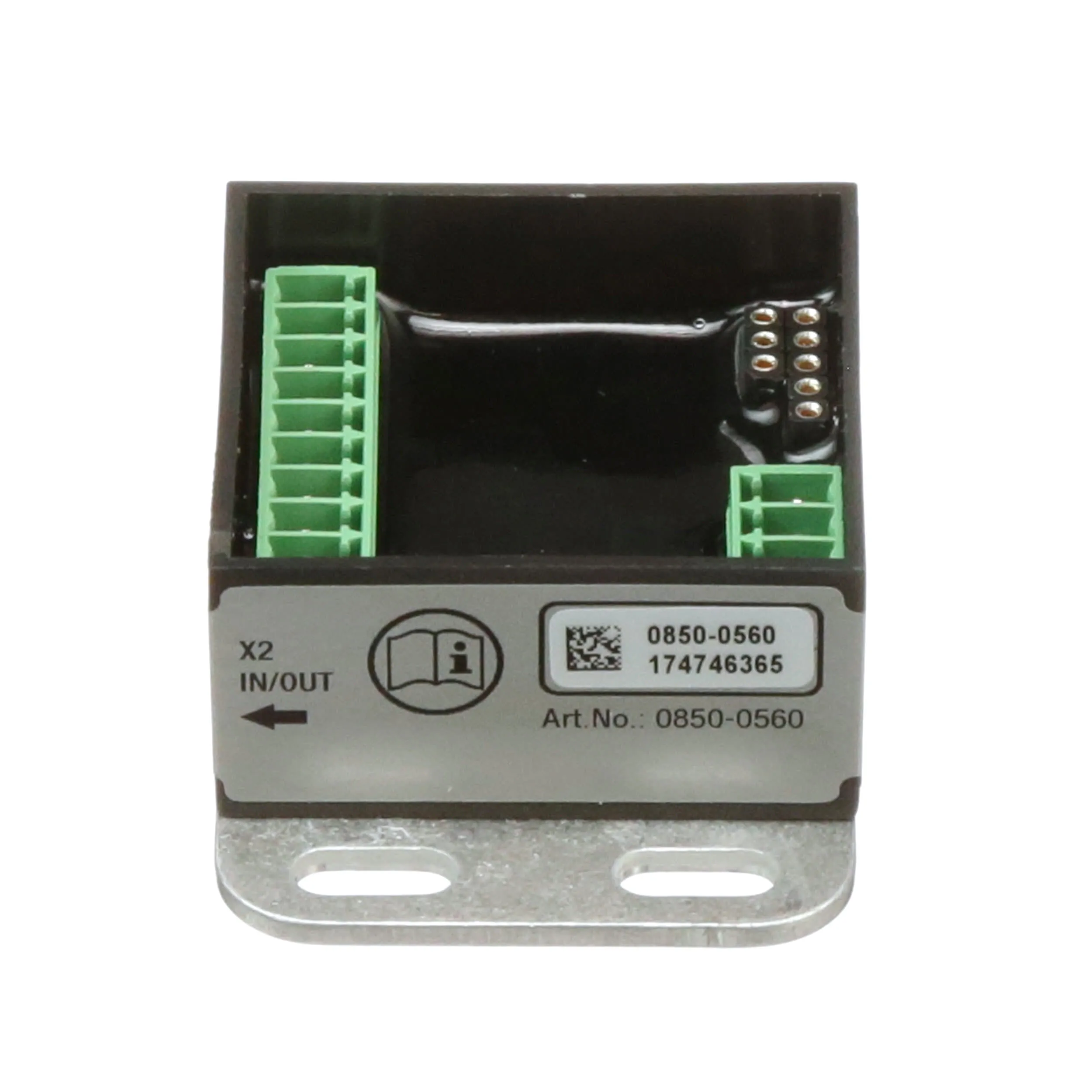

STG-560 CAN - Mini-PLC
A professional range of STG-560 CAN Mini-PLC from Barth. The STG-560 Mini-PLC has extended the established Barth CAN Mini-PLC series with an excellent open source hardware concept. These Mini-PLC’s provide hardware-oriented microcontroller programming at lowest current consumption and the well-known small form factor. Various network components can be connected to the Mini-PLC through the CAN/RS485 interface, such as; displays & CAN sensors. Both inputs and outputs feature highly integrated and rugged protection circuits to operate the Mini-PLC in harsh environments. The STG-560 does not need any peripheral components to operate and all models are highly reliable and excellent quality.

Features:

Small and universal CAN Logic Controller

Programmable with all PIC18® Compiler

3 analog Inputs 0..30 VDC, 12 bit ADC

2 digital Inputs up to 10 kHz

4 Power Outputs up to 1.5 A

1 Power PWM Output 2 A/1 to 32 kHz

1 CAN/RS485 Interface

Reliable Solid-State Outputs

Fail Safe Oscillator 16 MHz

Programmable Status LED

TTL-232/USB Connection to PC

Wide Operating Voltage Range; 7 to 32 VDC
