Name: BARTH 0850-0570
SKU: 466125

Product Details ＋

Product Attribute	Attribute Value
Series

Overview

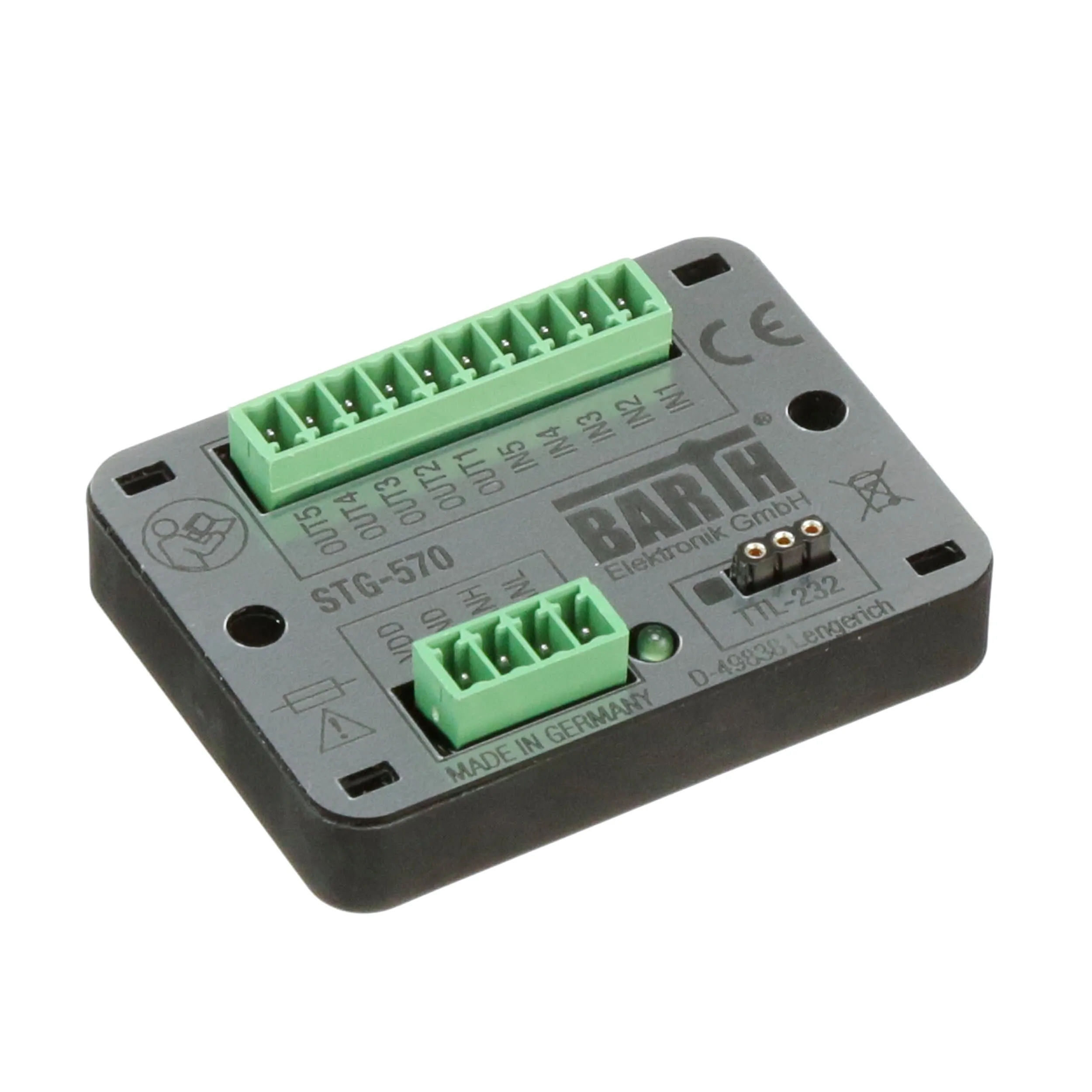

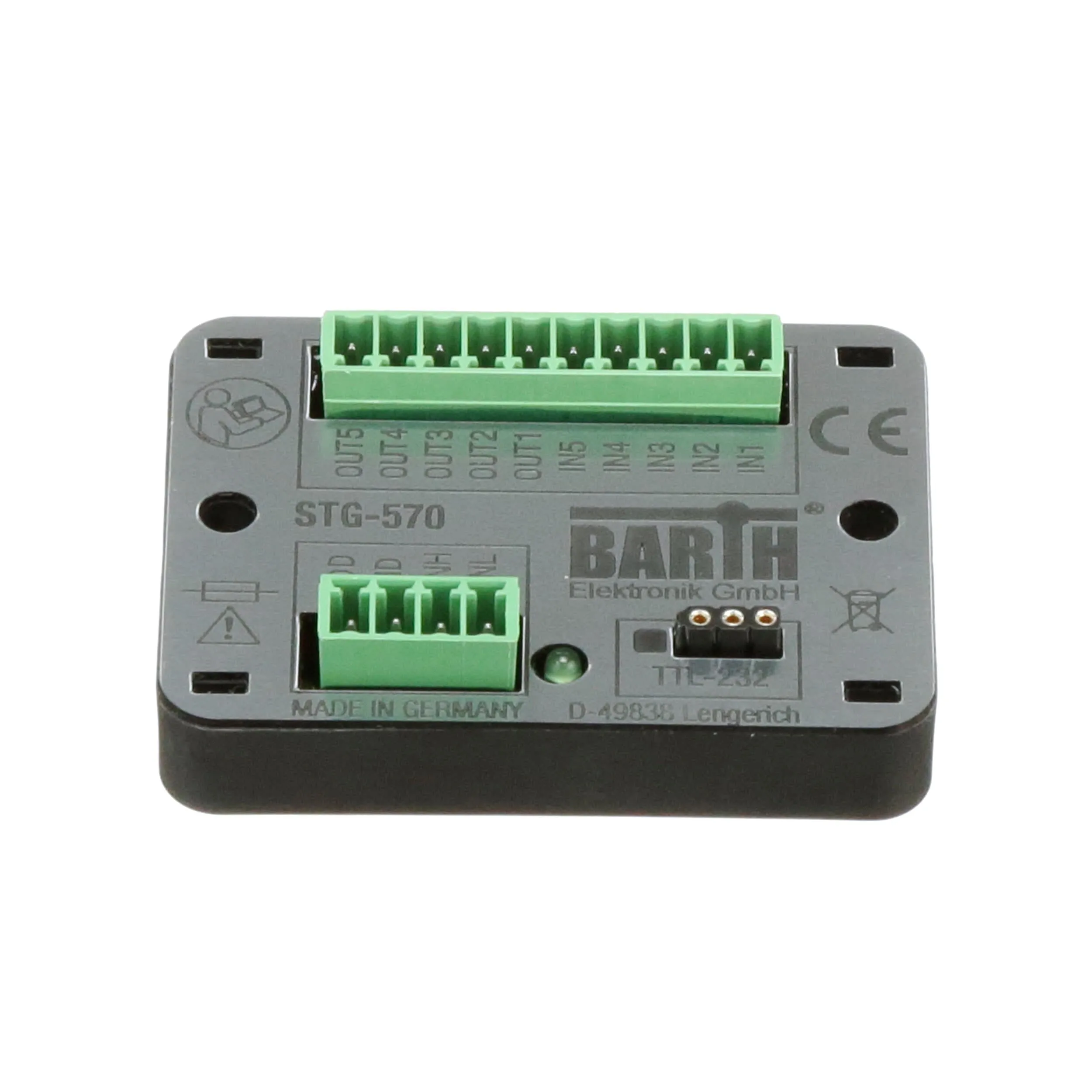

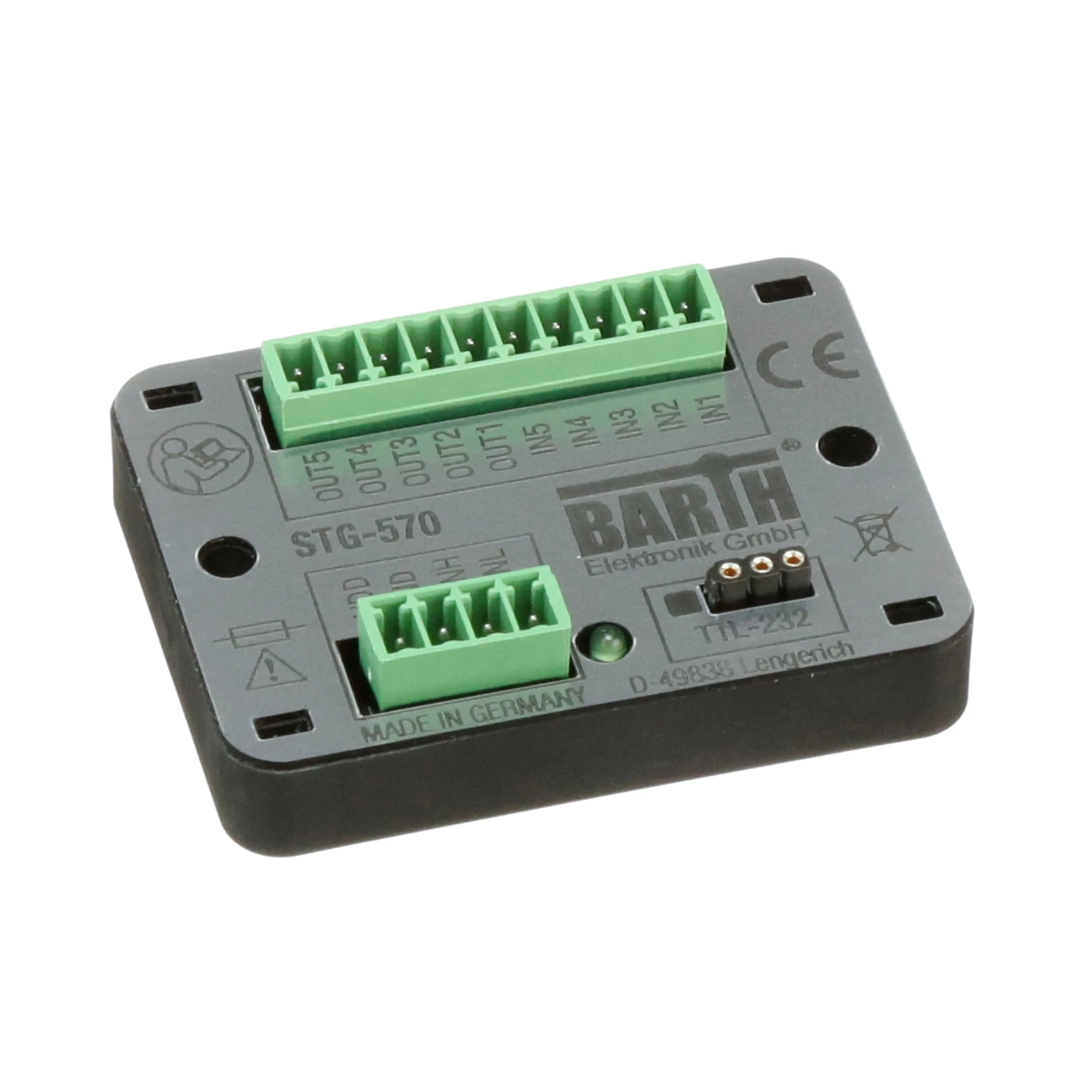

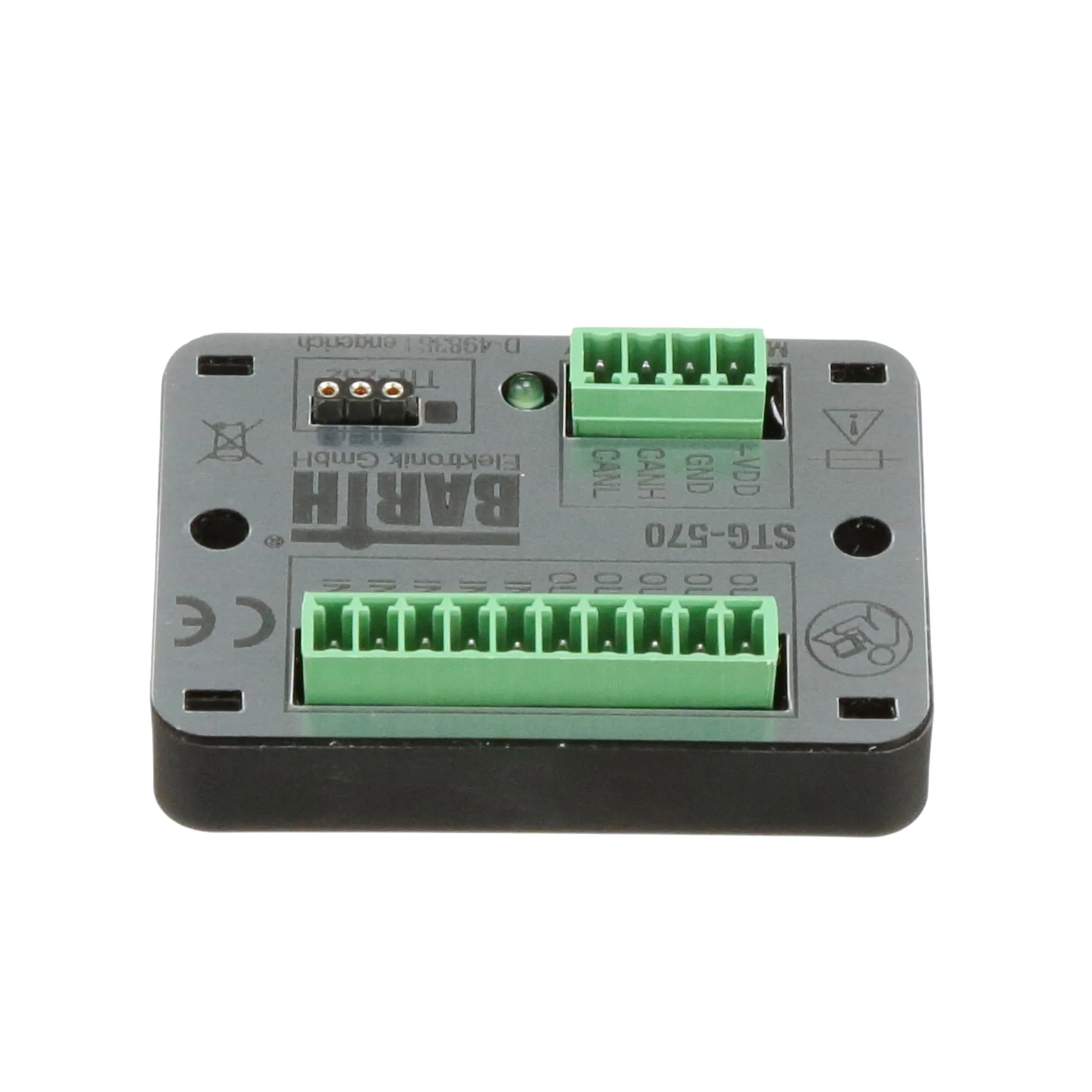

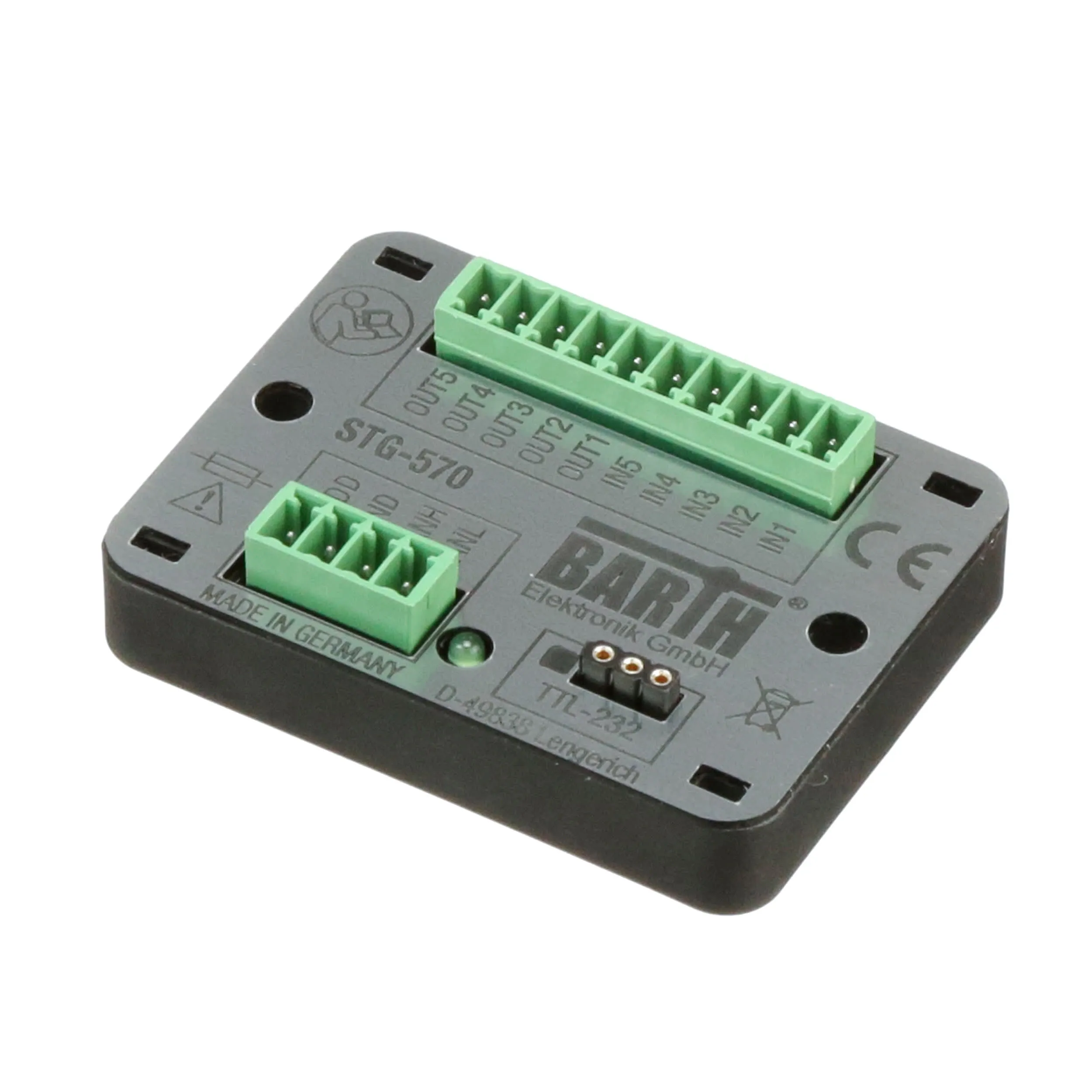

STG-570 CAN- Mini-PLC
The tiny STG-570 CAN is a highly integrated programmable logic controller providing outstanding graphical programming capability at lowest current consumption and small form factor.
The CAN bus allows the user to connect a variety of network components to the Mini-PLC, for example: displays, stepper motors or CAN sensors.
The controller does not need any peripheral components to operate. Both inputs and outputs features highly integrated and rugged protection circuits to operate the Mini-PLC in harsh environment.
Due to it is extremely low current consumption and wide operation voltage range the STG-570 is suitable for 12 V and 24 V battery-powered systems. These outstanding features open up a variety of application fields in industrial, automotive and maritime technology.

Features and Benefits

Tiny and super-flat CAN logic controller

3 analogue inputs 0-30 V dc, 12-bit ADC

2 digital inputs up to 1 kHz

4 power outputs up to 1.5 A

1 power PWM output 2 A/1 to 10 kHz

Reliable solid-state outputs

Fail-safe oscillator

Programmable status LED

1 CAN 2.0 A/B Interface

TTL-232/USB connection to PC

Intuitive graphical programming capability

Wide operating voltage range 7-32 V dc
