Product Details
+

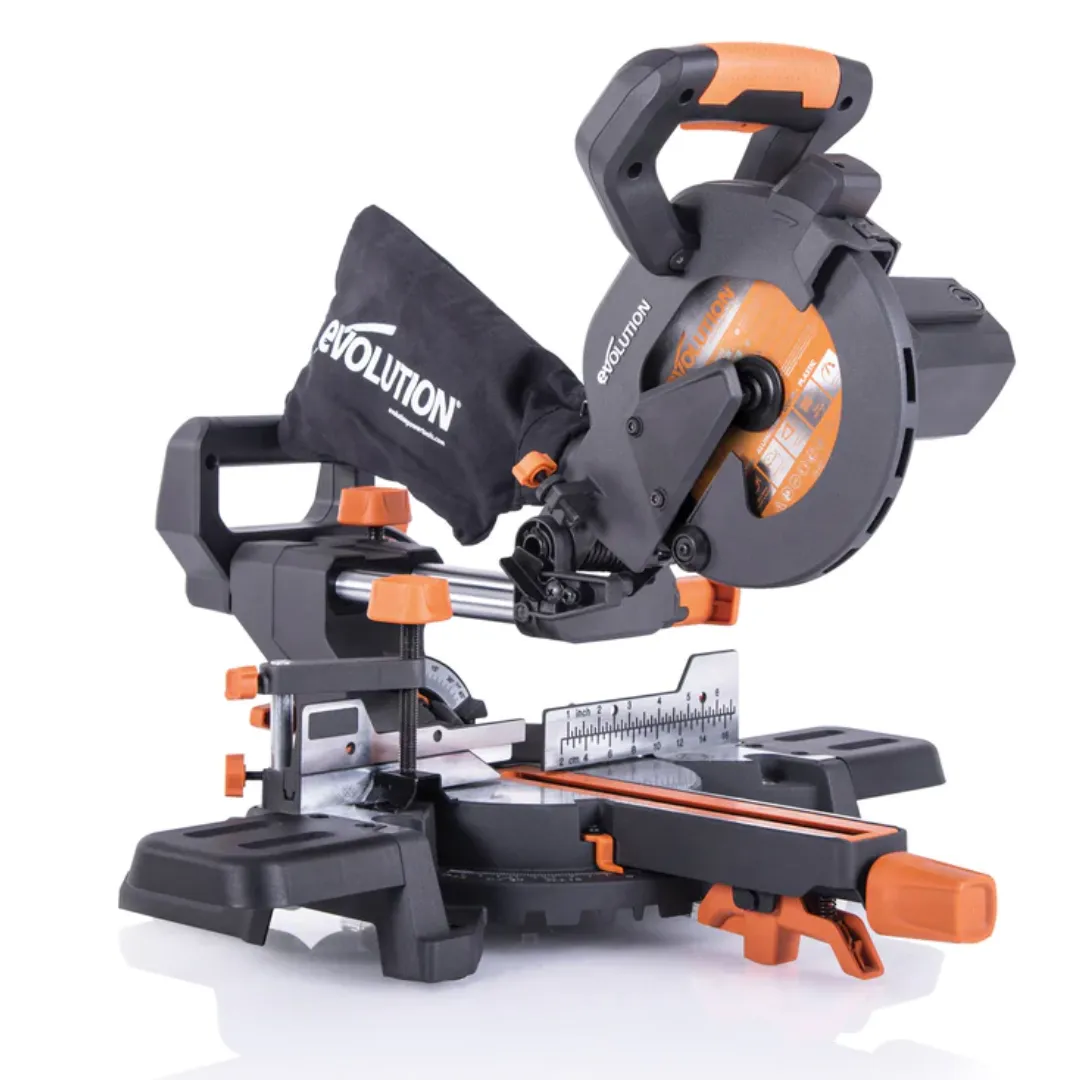

Evolution R185SMS : Single Bevel Sliding Miter Saw With 7-1/4 In. Multi-Material Cutting Blade
Features:
- Multi-Material cutting technology

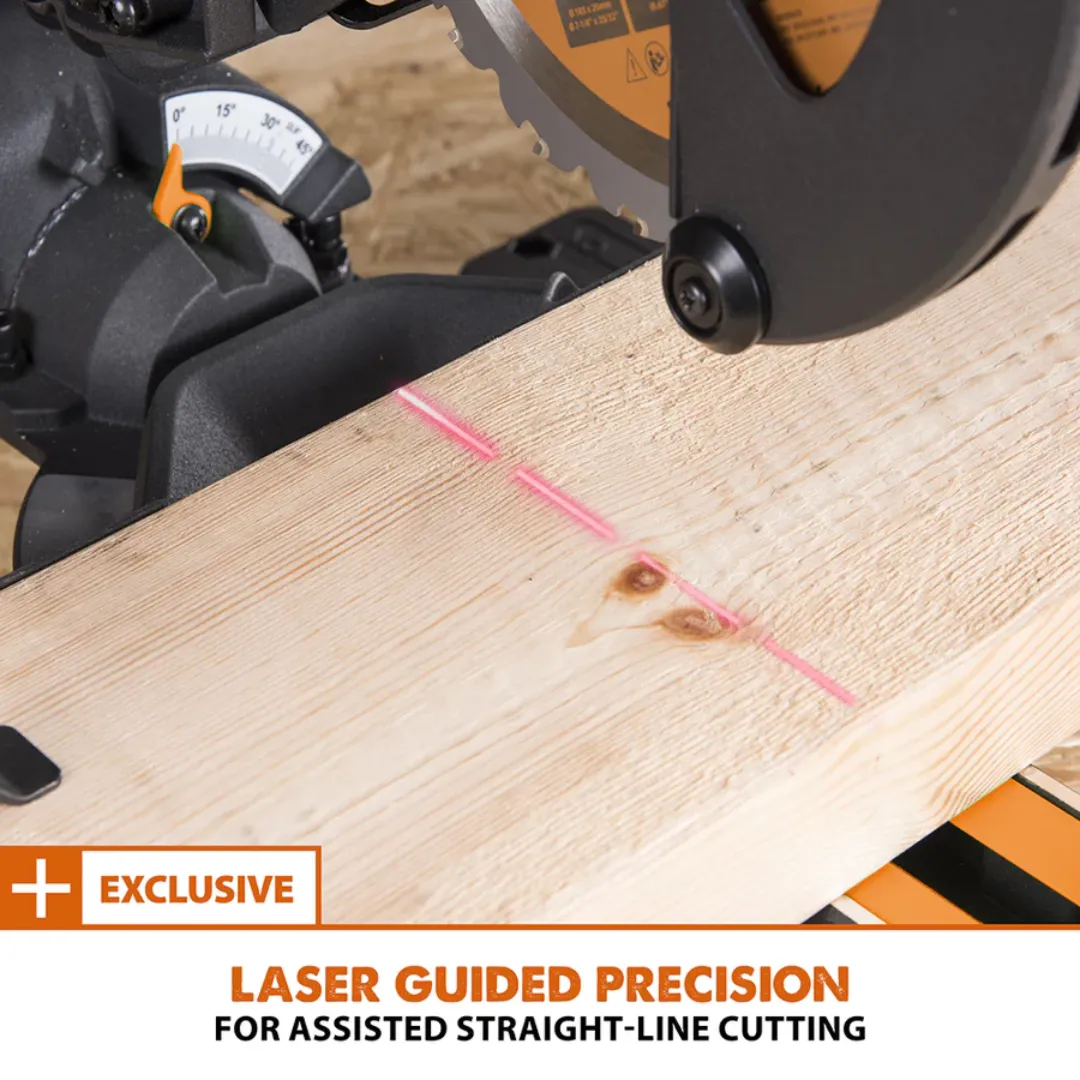

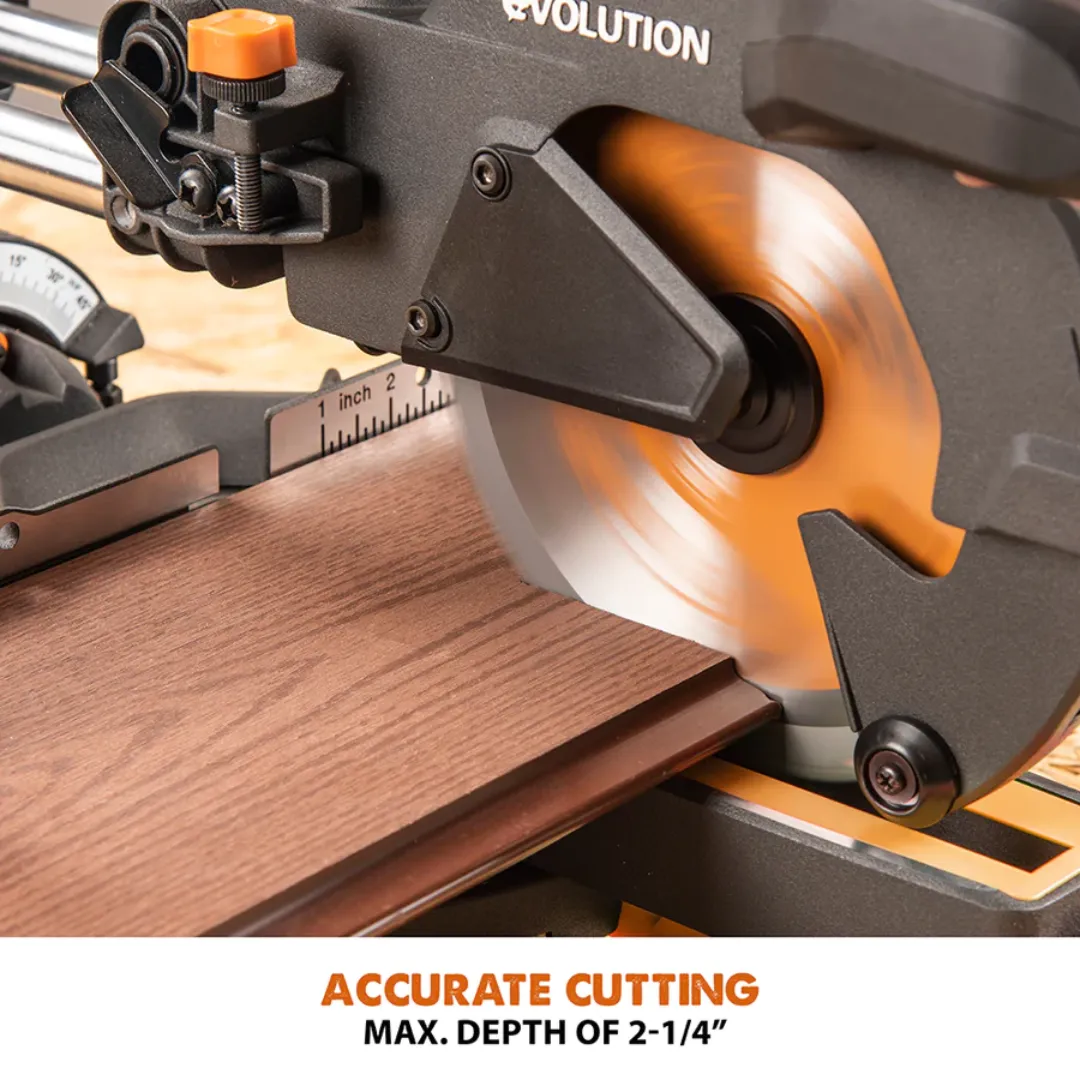

- Accurate cutting with laser guidance, smooth sliding functionality, adjustable depth of cut, and 9 positive miter stops
- Reliable, smooth square cutting every time in a variety of materials

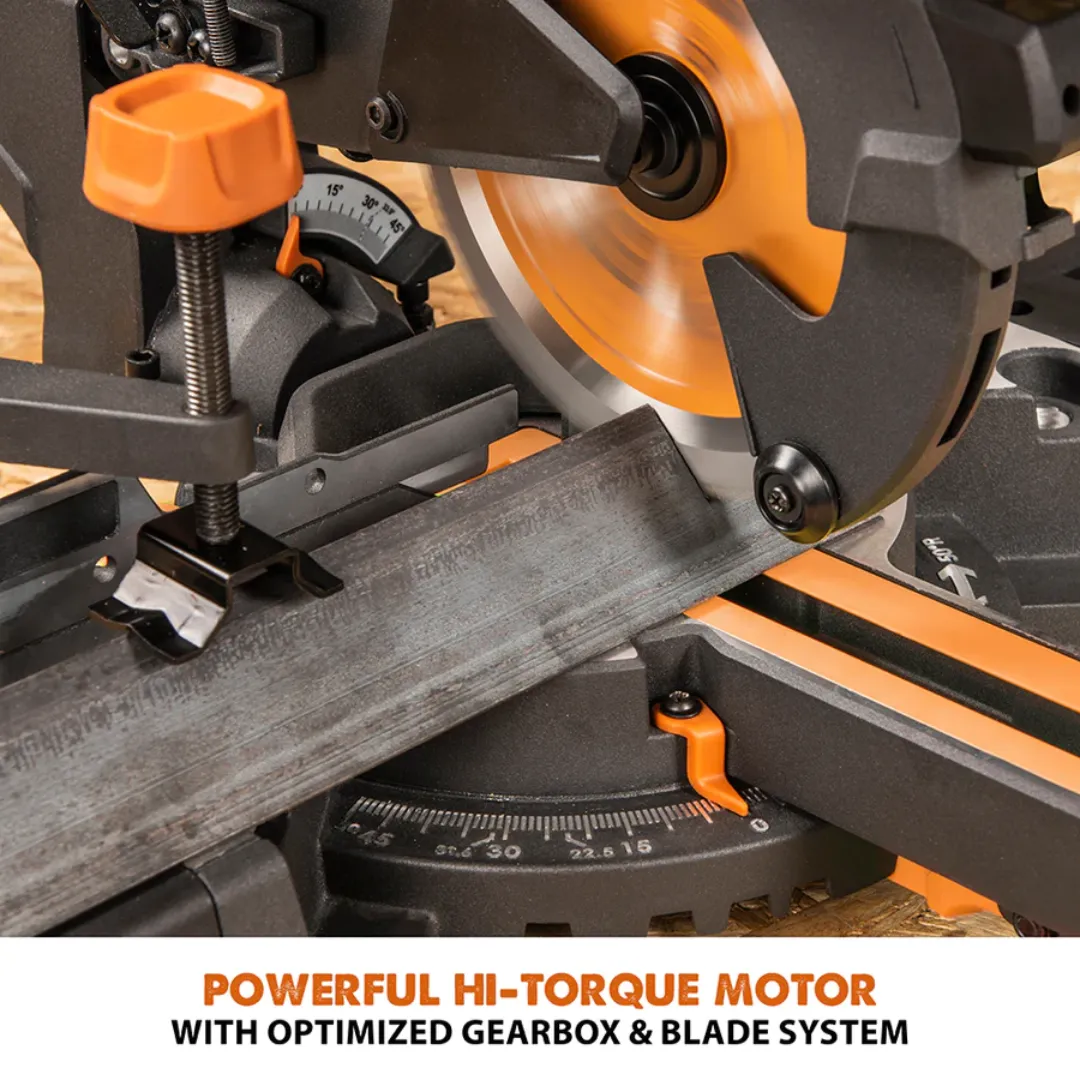

- Powerful 10A hi-torque motor with an optimized gearbox and blade system

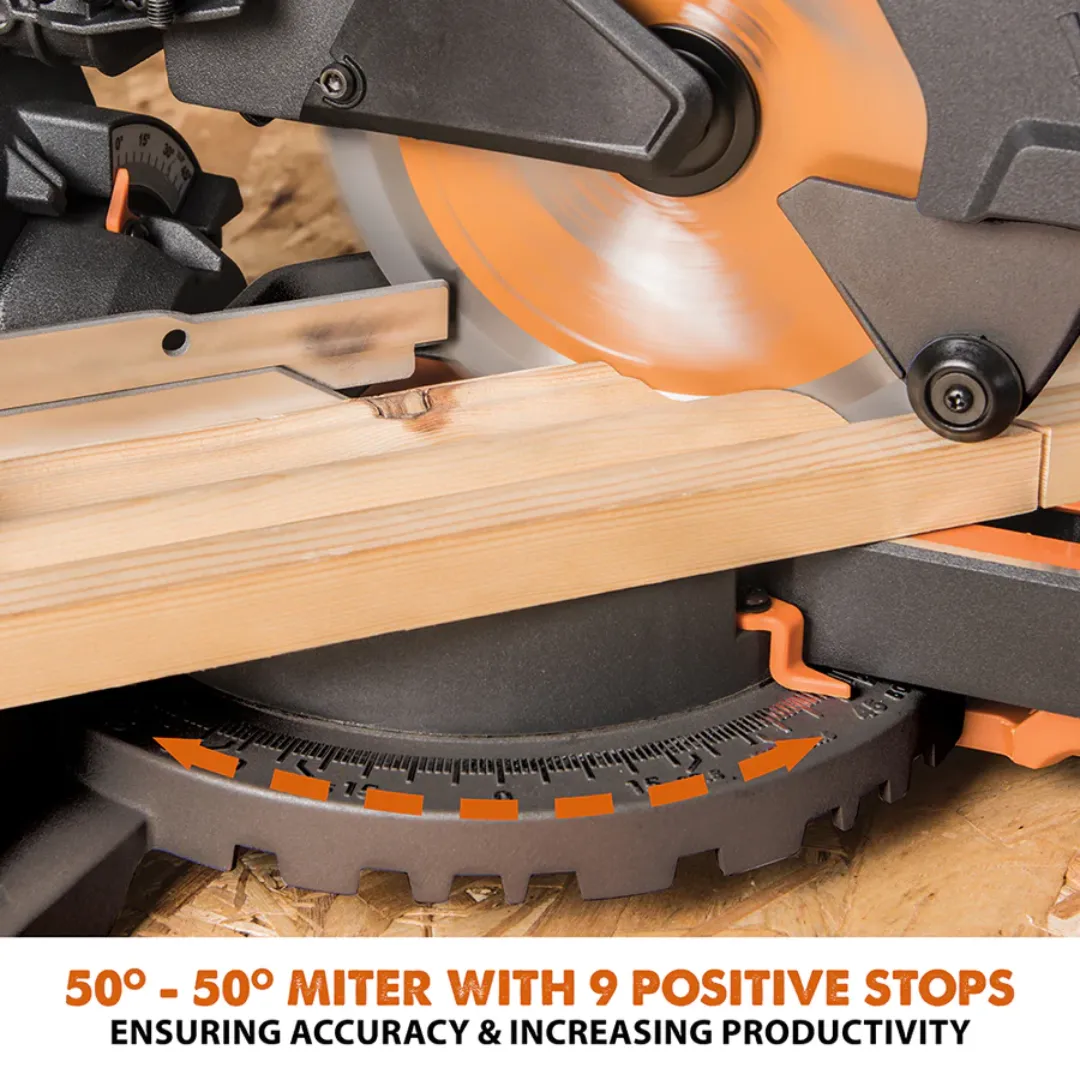

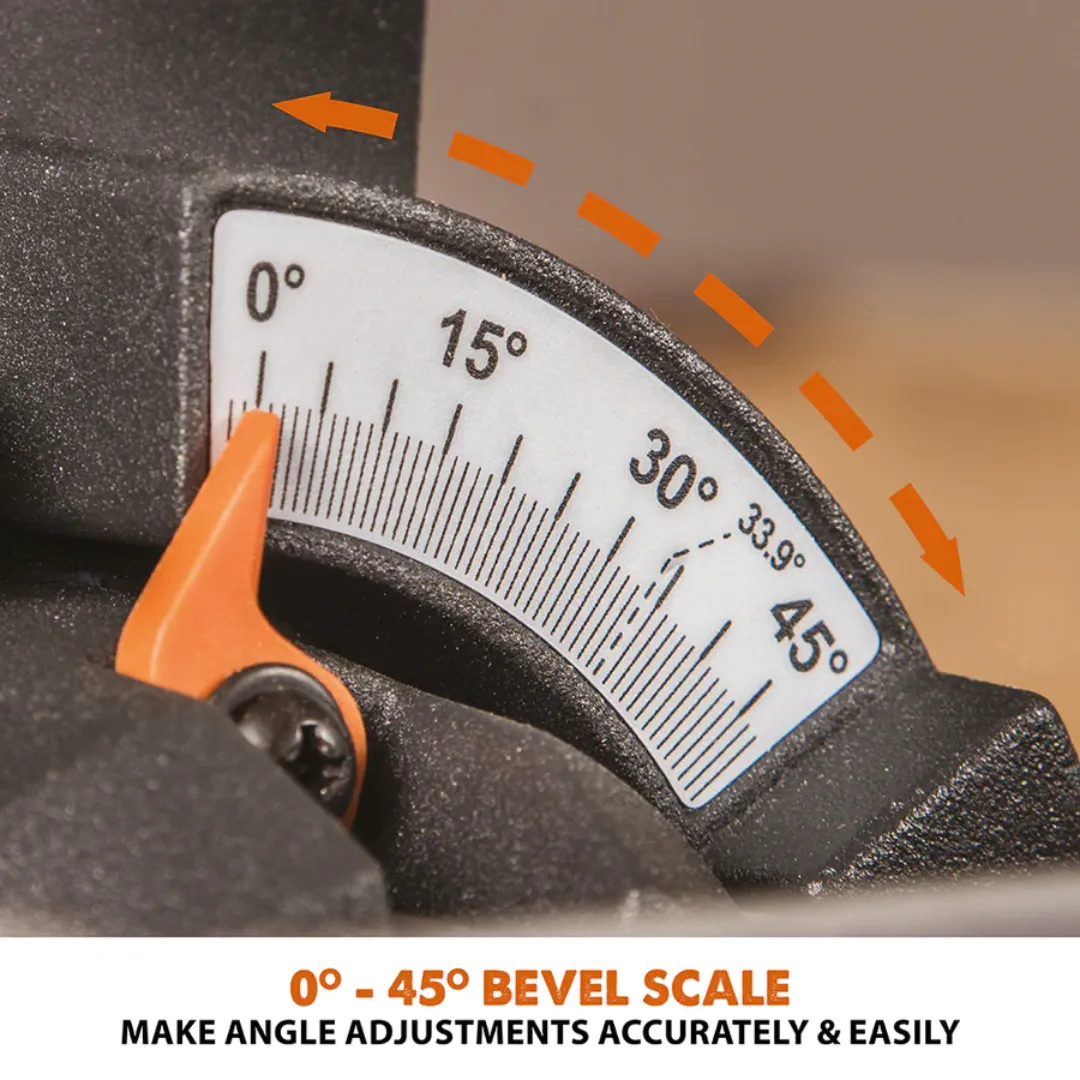

- 0° - 45° bevel tilt and 50˚ - 50˚ miter covers all common cutting angles accurately and easily
- 8-1/4 x 2-1/4 inch max. crosscut capacity

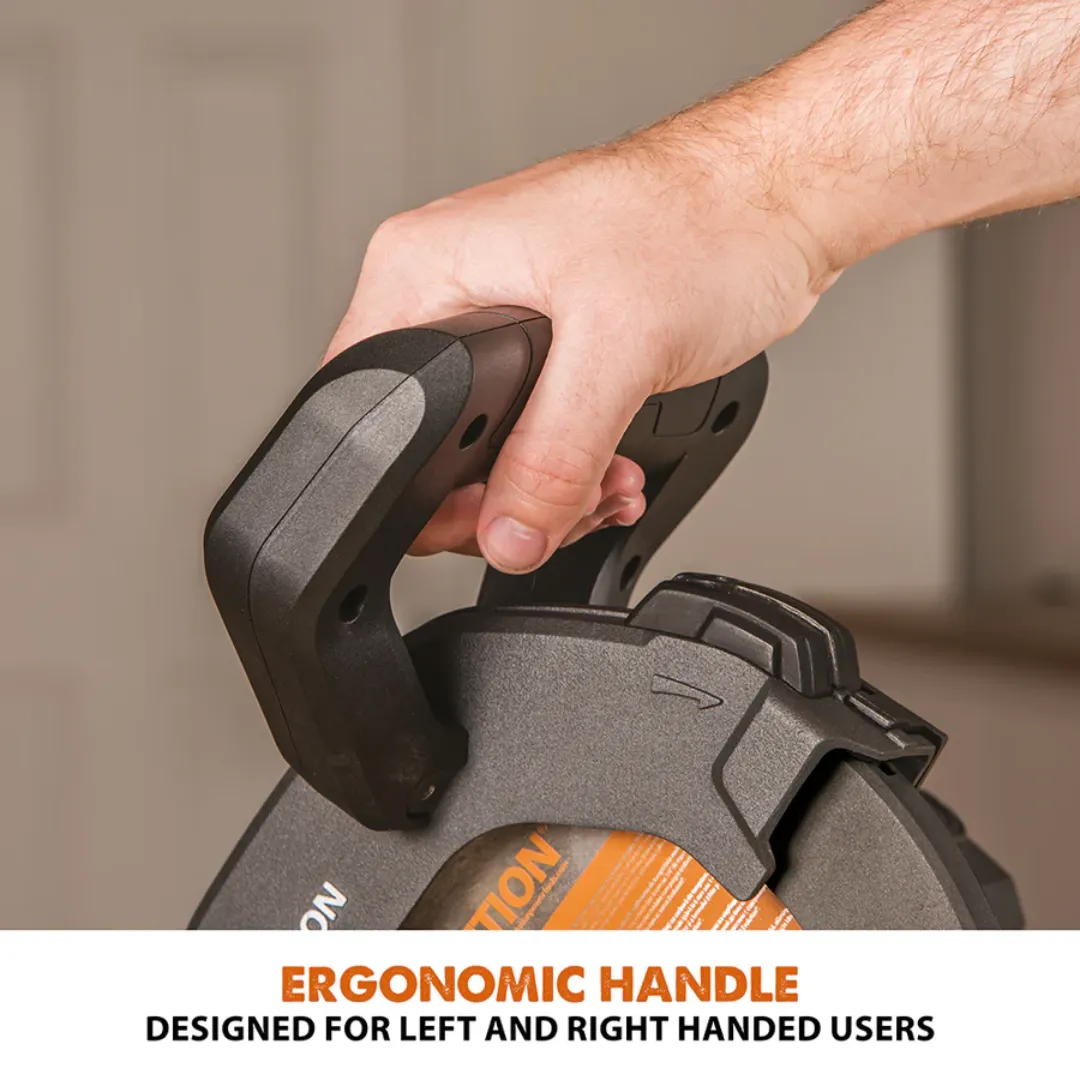

- Ergonomic trigger handle designed for left and right-handed use
- Compatible with the Evolution Miter Saw Stand
- Compact, lightweight & robust design, weighing under 20 lbs
- 3 Year limited warranty
- Manufacturer Part Number: R185SMS
Items Included:
- 20T Multi-Material TCT Blade
- Machine Table Extensions

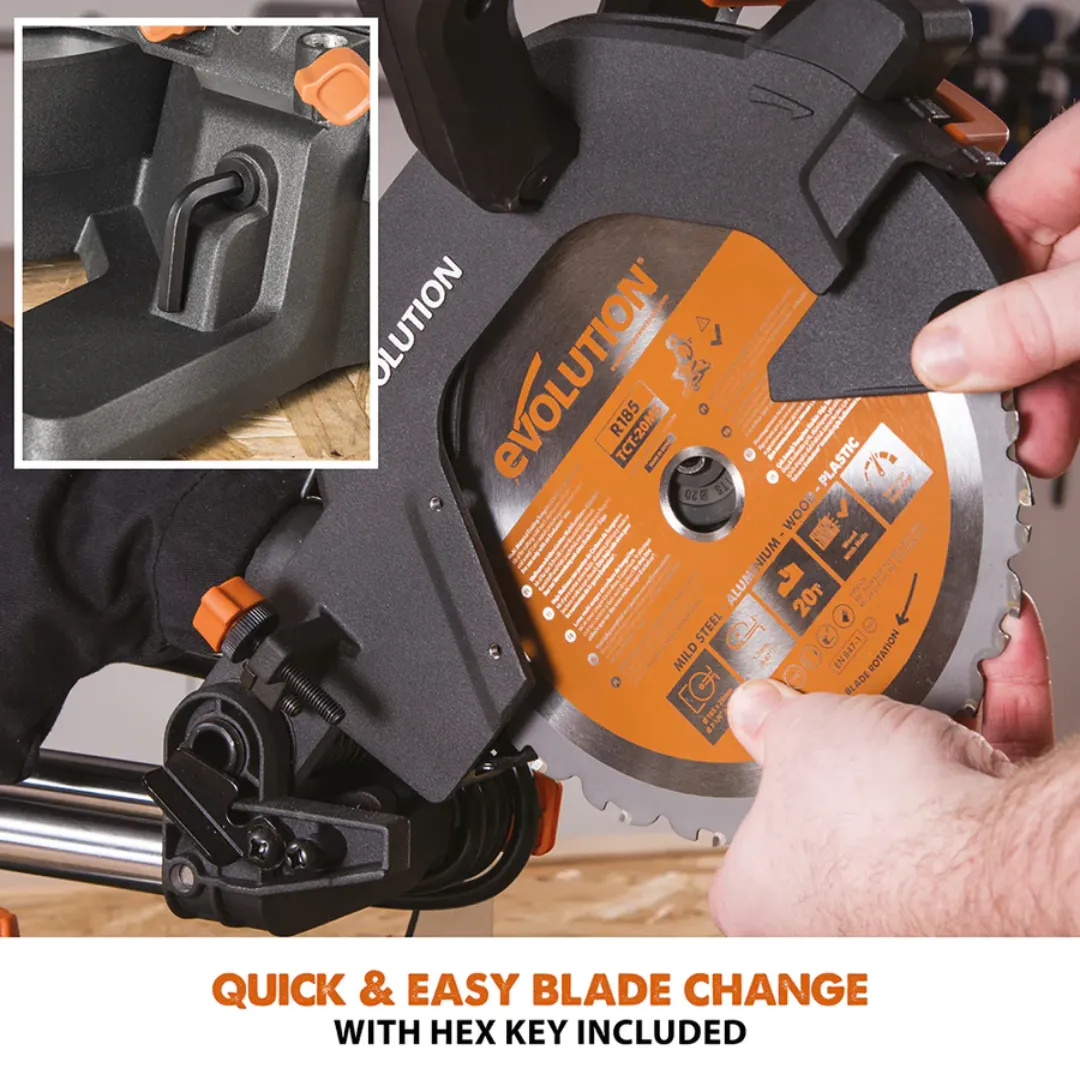

- Double Ended Hex Key (M6 & M4)
- Cutting Head
- Miter Locking Knob
- Self Tapping Cap Screw
- Cable Clamp Component
- Dust Port Adaptor
- 10 ft Cable

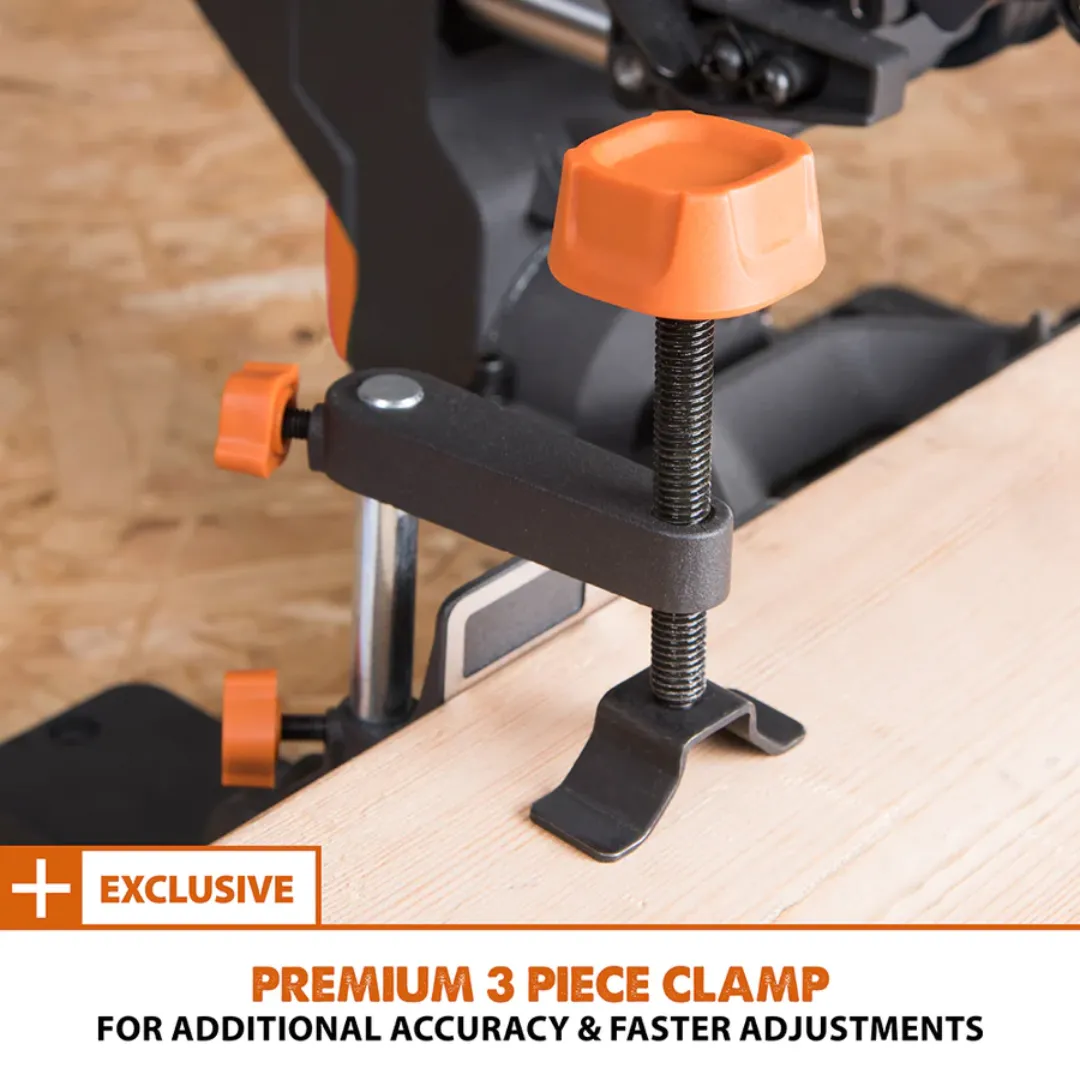

- 3 Pc Hold Down Clamp

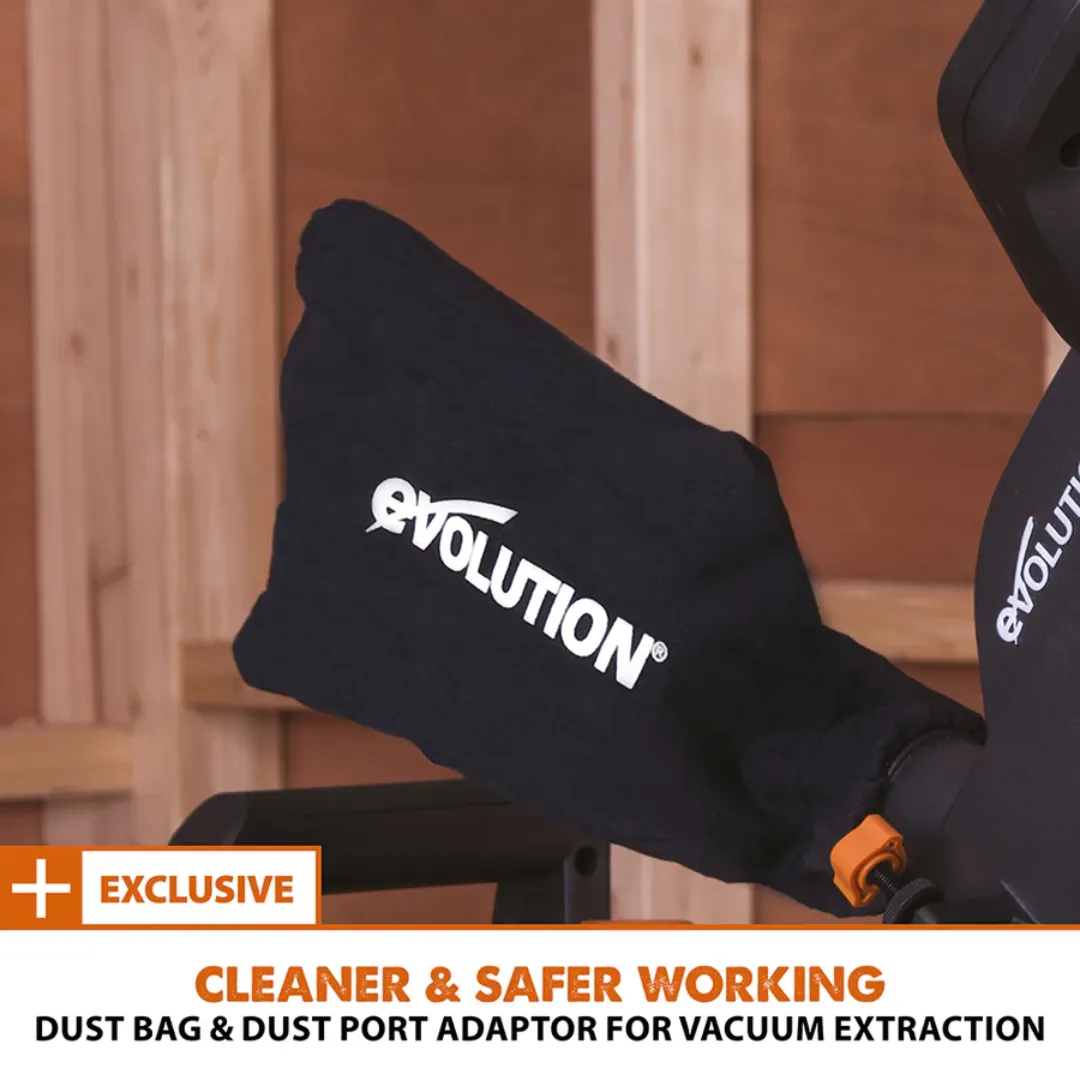

- Dust Collection Bag
- Rotary Table And Neck
- Carriage Slides
- Mains Cable Guide/Clamp (1 Fitted)
- Socket Headed Screws (Fitted)
- Laser Lens Cap (Fitted)

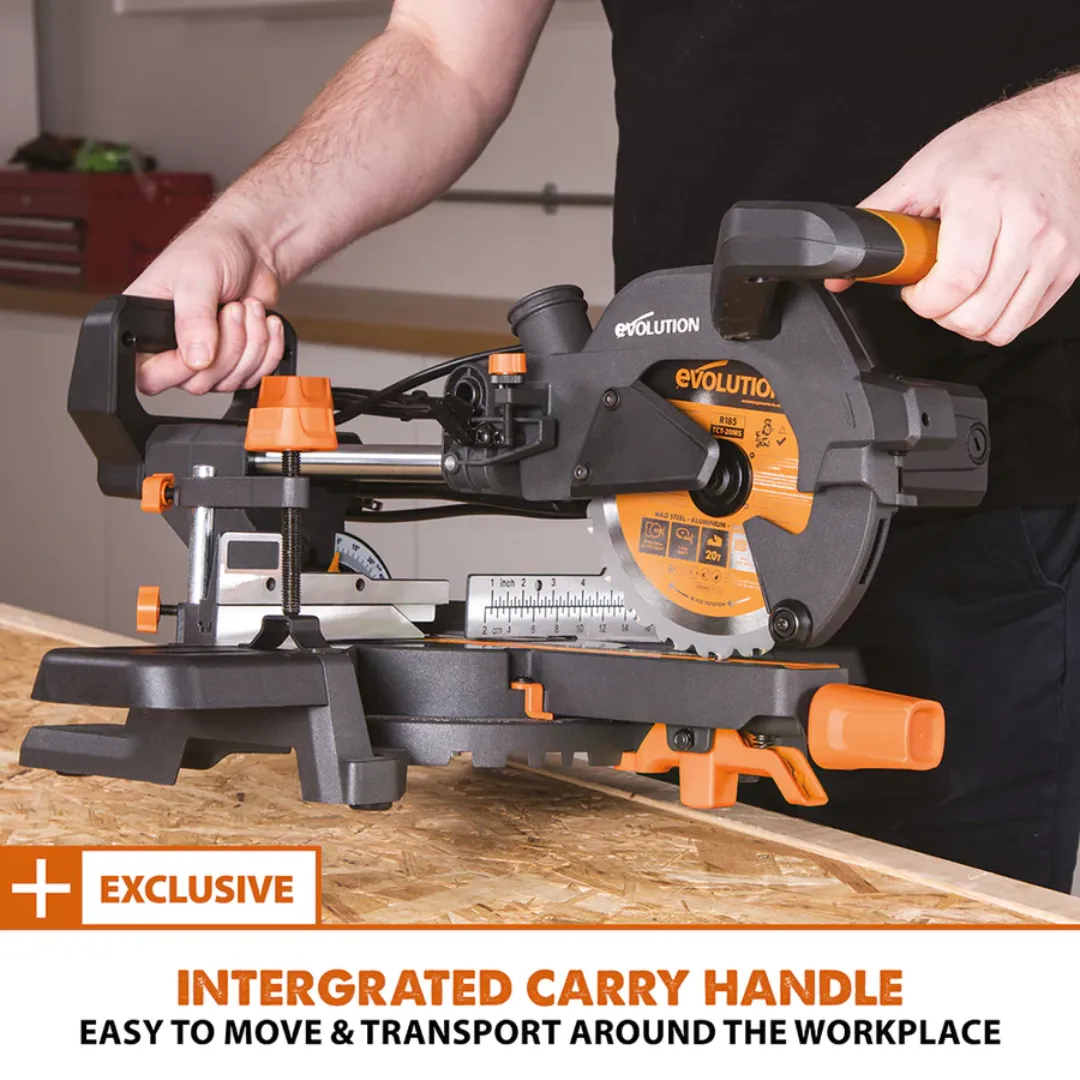

- Rear Carry Handle
Specifications:
Motor (120V 60Hz): | 10 A |
Speed No Load: | 3700 rpm |
Max. Bevel (Left): | 45° |
Max. Miter: | 50° |
Cable Length: | 10ft |
Blade Dia.: | 7-1/4 In. |
No. of Teeth: | 20 |
Bore: | 25/32 In. |
Kerf: | 0.066 in. |

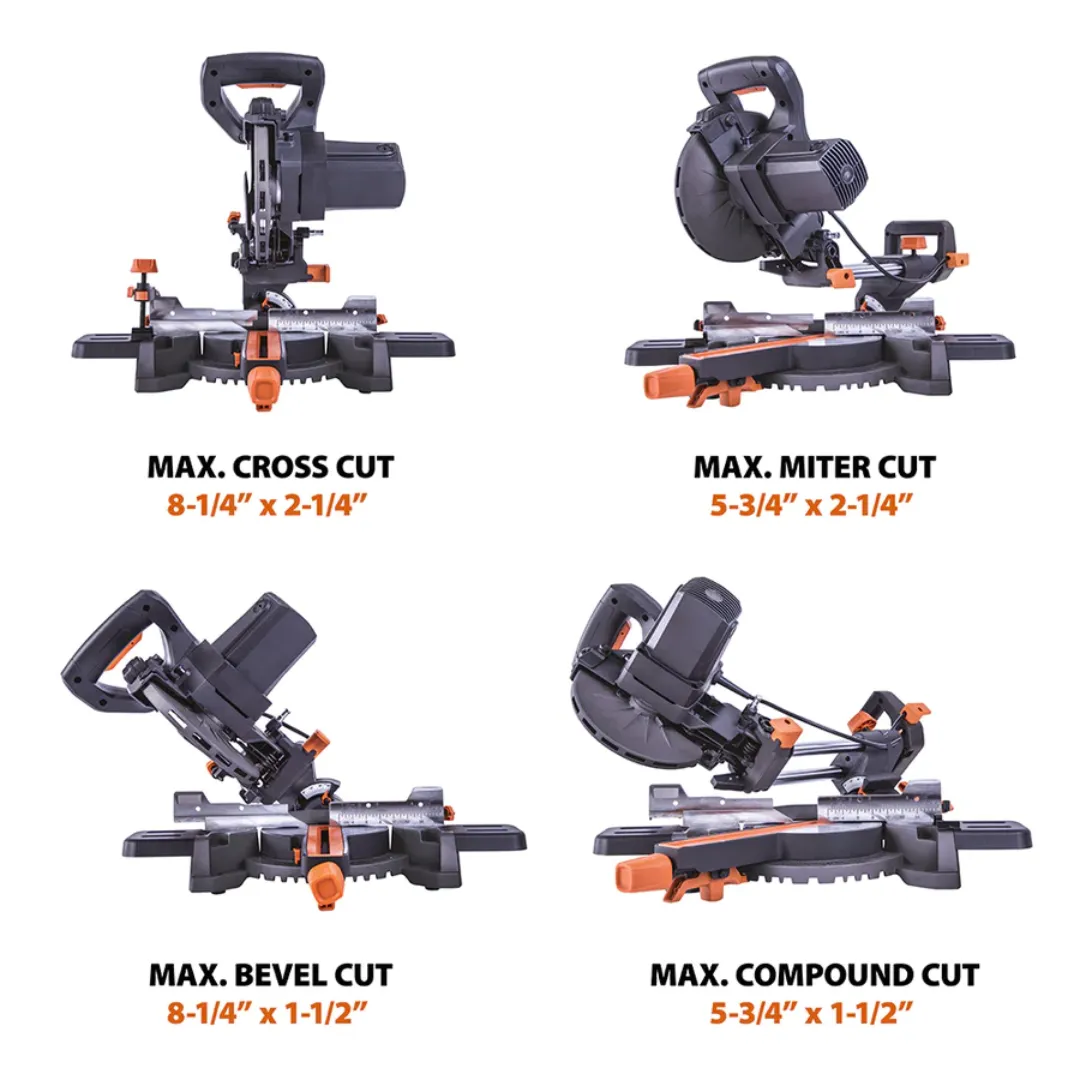

Max. Cross Cut (0° x 0°): | 8-1/4 In. x 2-1/4 In. |
Max. Bevel Cut (0° x 45°): | 8-1/4 In. x 1-1/2 In. |
Max. Miter Cut (45° x 0°): | 5-3/4 In. x 2-1/4 In. |
Max. Compound Cut (45° x 45°): | 5-3/4 In. x 1-1/2 In. |
Mild Steel Box Section (Max. Wall Thickness): | 1/4 In. |
Mild Steel Plate (Max. Thickness): | 1/4 In. |
Product Dimensions: | 11-3/8 In. x 23-1/2 In. x 22-1/4 In. |
Packaging Dimensions: | 17-33/64 In. x 17-1/8 In. x 12-13/32 In. |
Product Weight: | 19.7lbs |
Packaged Weight: | 23.5lbs |
Sound Pressure Level LPA: | 91,9dB(A) K=3 dB(A) |
Sound Power Level LWA: | 104,9dB(A) K=3 dB(A) |
