Product Details
＋

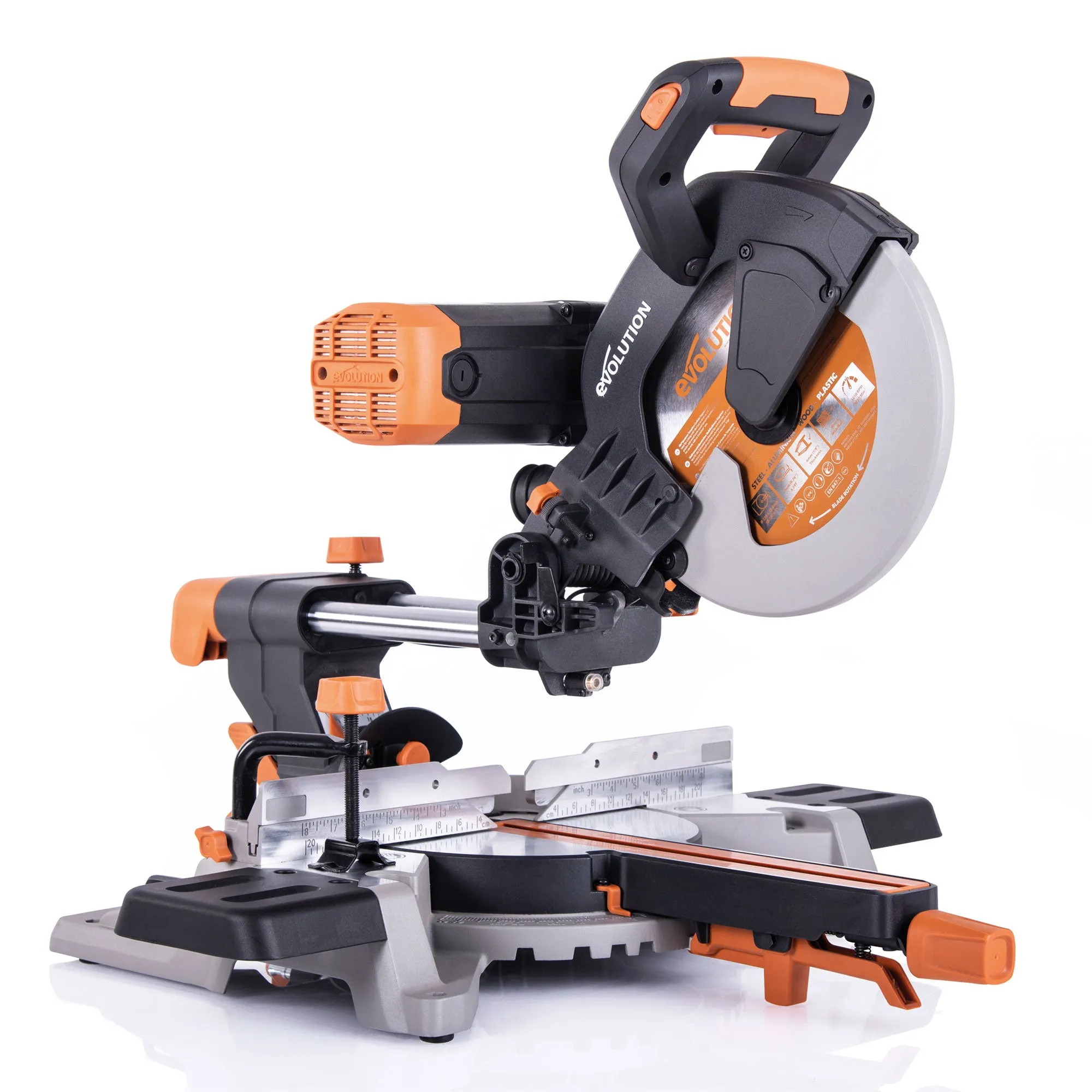

For those who demand complete versatility, power, and accuracy. The 'DB' stands for Dual-Bevel which means, not only can you miter 50˚ left and right, but you can also bevel 45˚ left and right. This provides you the ability to perform compound cutting with precision at any angle. With the additional ability to cut wood (even with embedded nails), steel, aluminum, and plastics with the same Evolution blade included. Plus cut masonry; brick, tile, stone when fitted with an Evolution diamond blade (sold separately). The R255SMS-DB is also compatible with Evolution Miter Saw Stand.

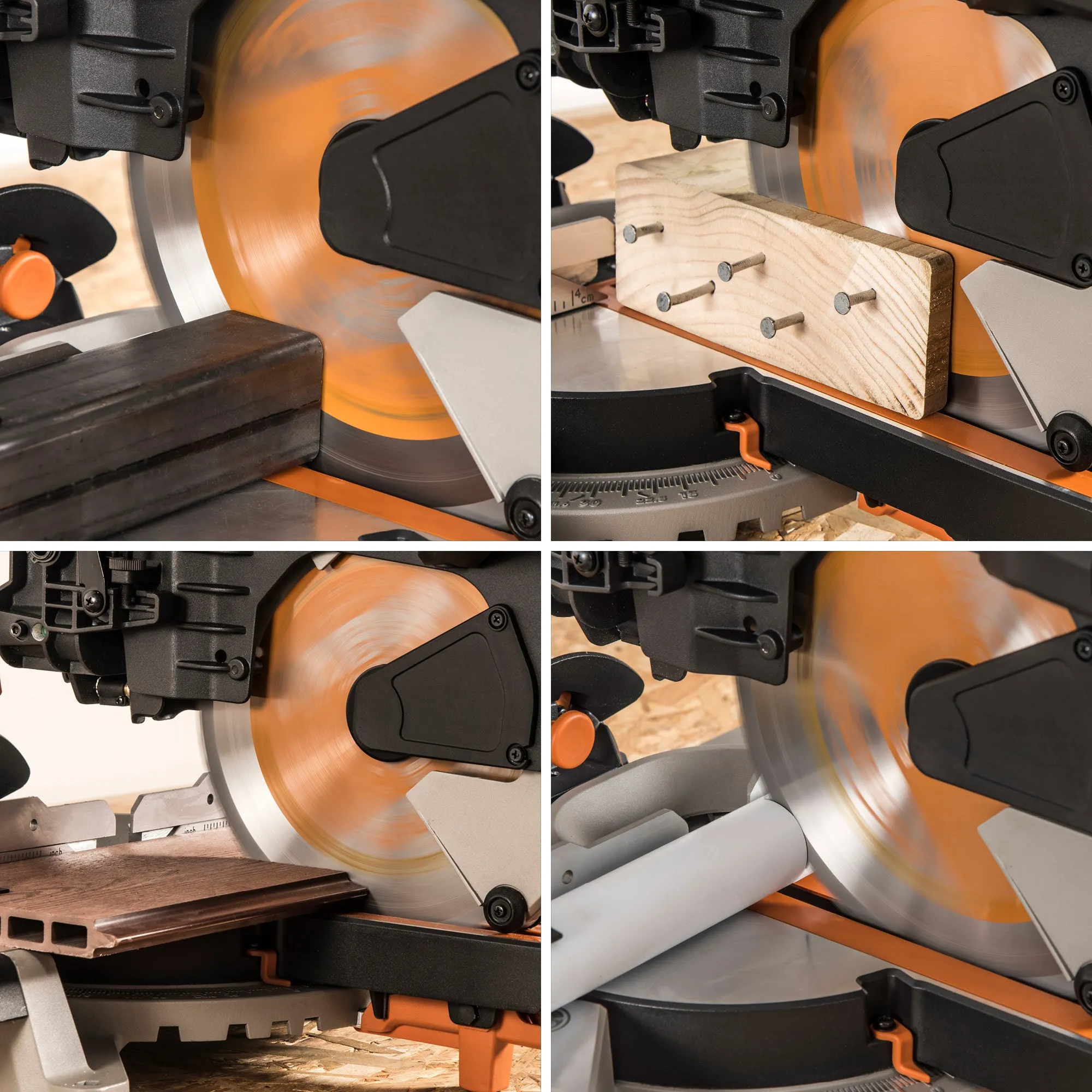

- Multi-Material cutting technology. One saw, one blade, cuts all.*

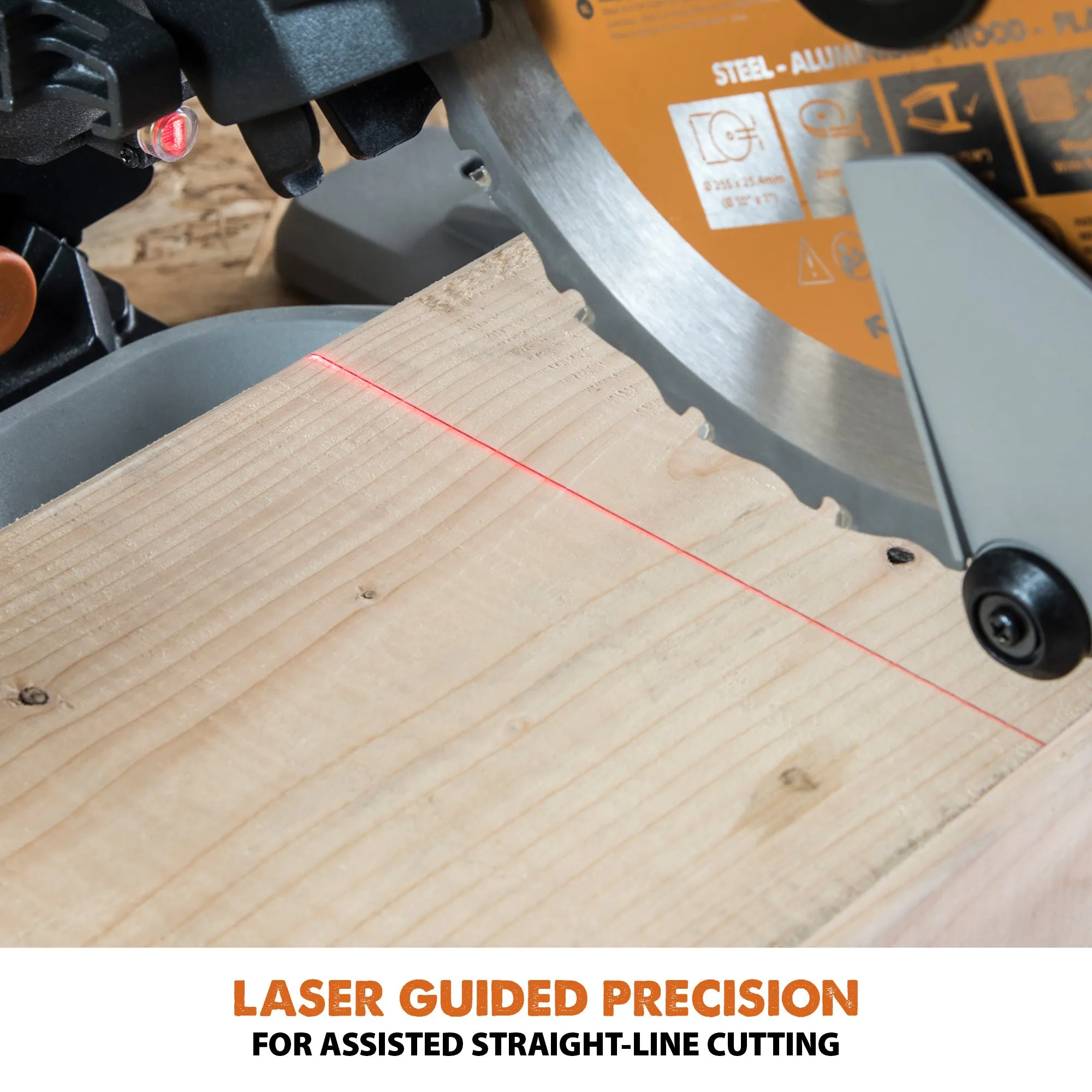

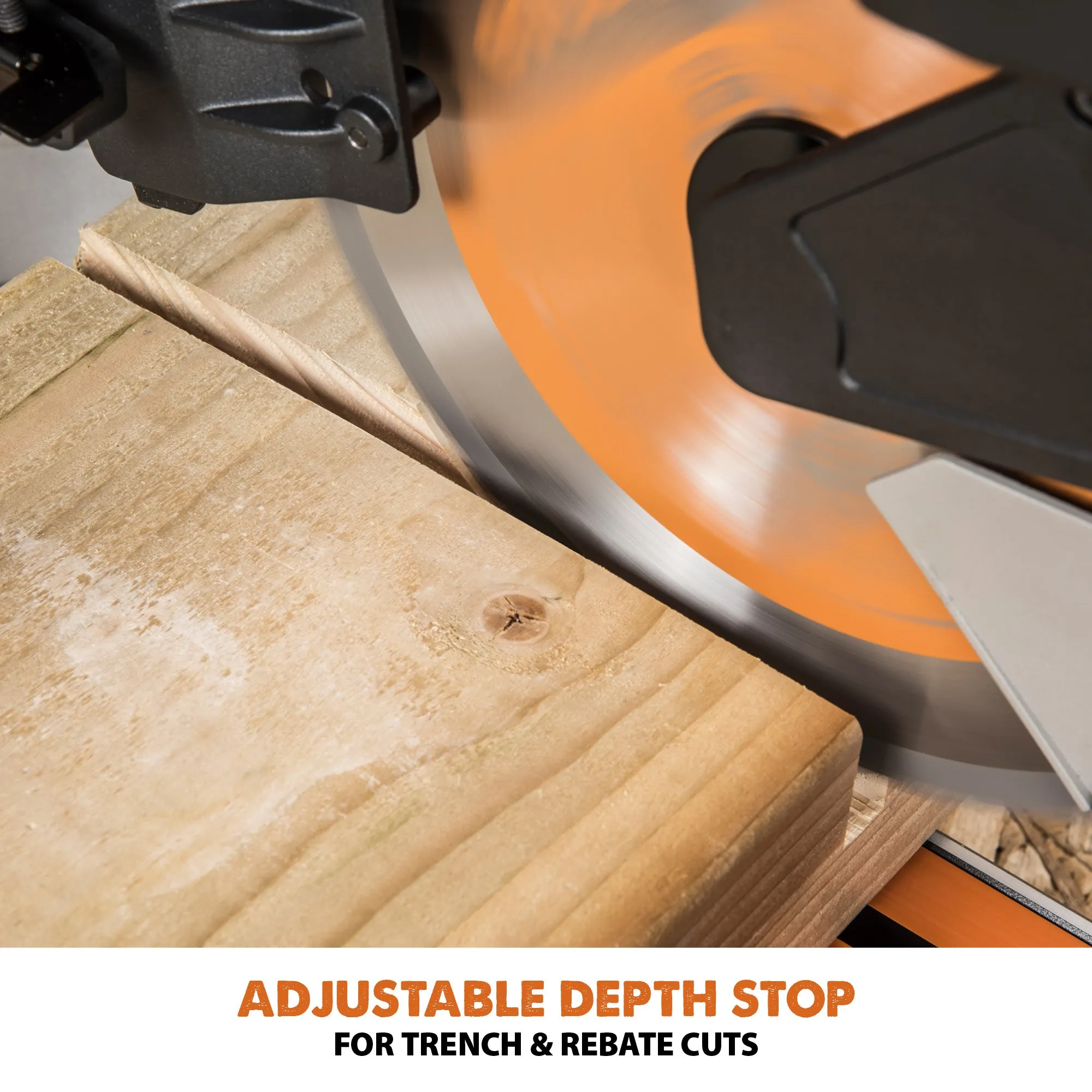

- Accurate cutting with 11-13/16-inch sliding functionality, adjustable depth of cut and laser precision guidance.

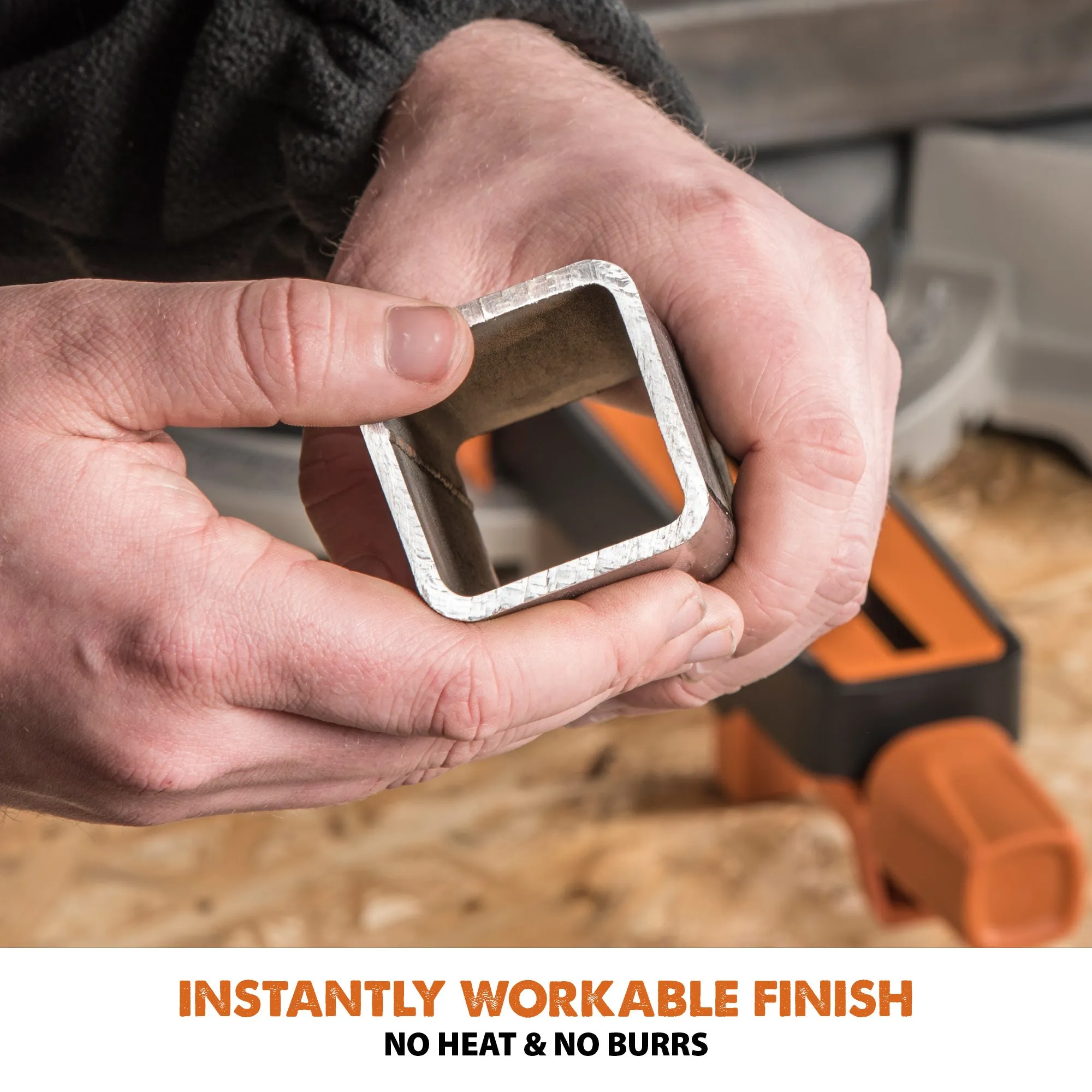

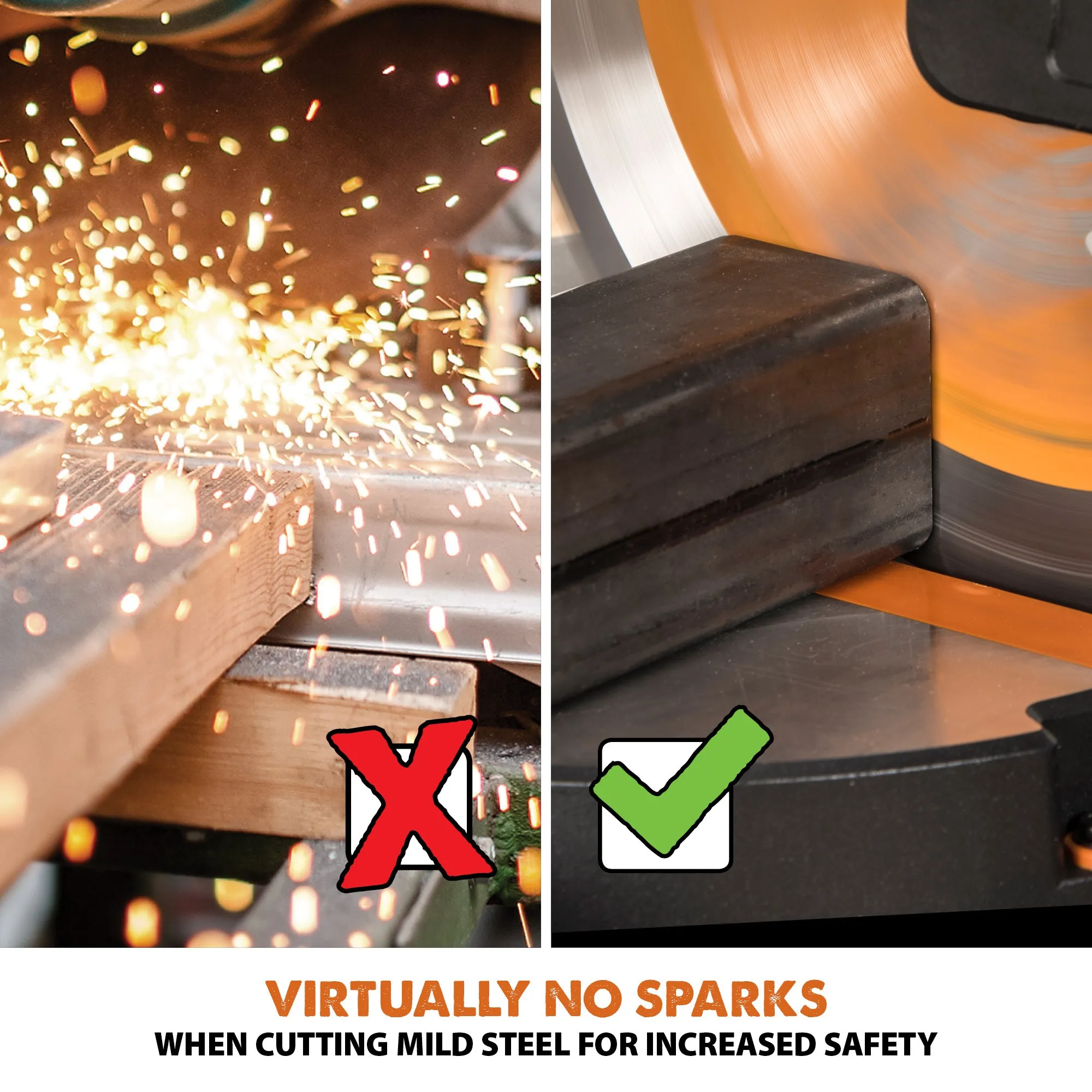

- Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs & virtually no sparks.

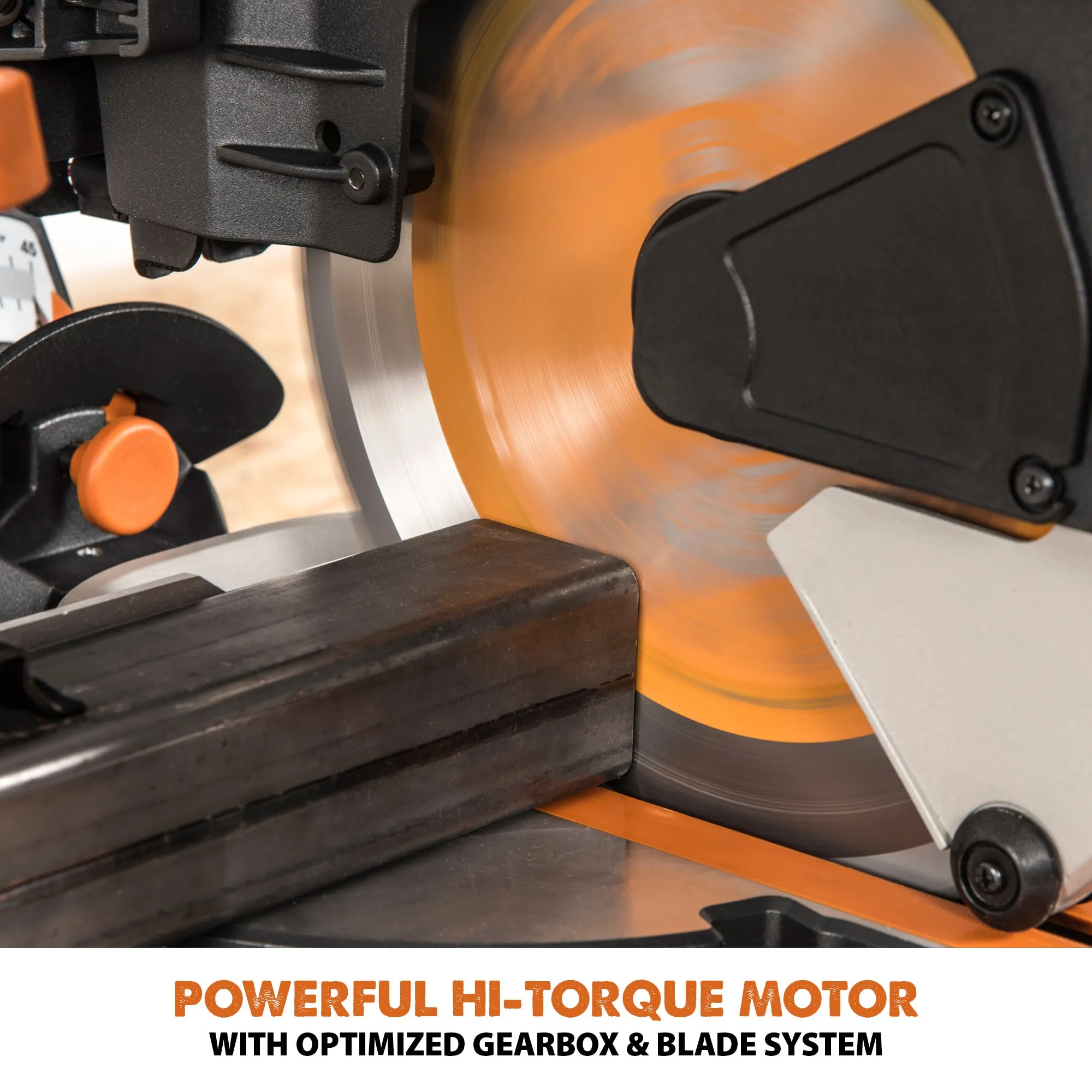

- Powerful 15A hi-torque, optimized gearbox, and blade system increase motor and blade life to cut through a variety of materials with ease.
- Perform accurate Crosscuts, miter cuts, bevel cuts and Compound cuts with adjustable precision settings.

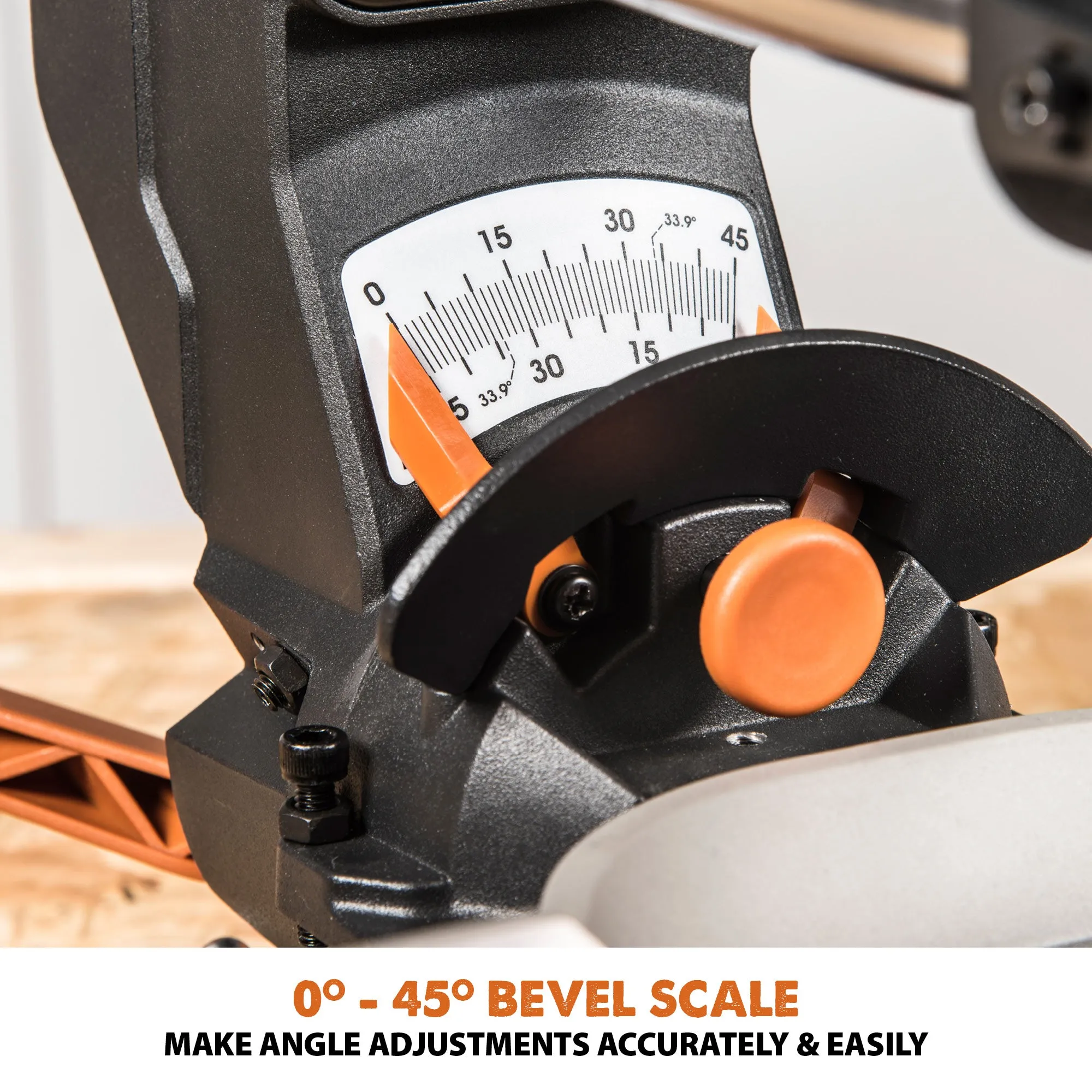

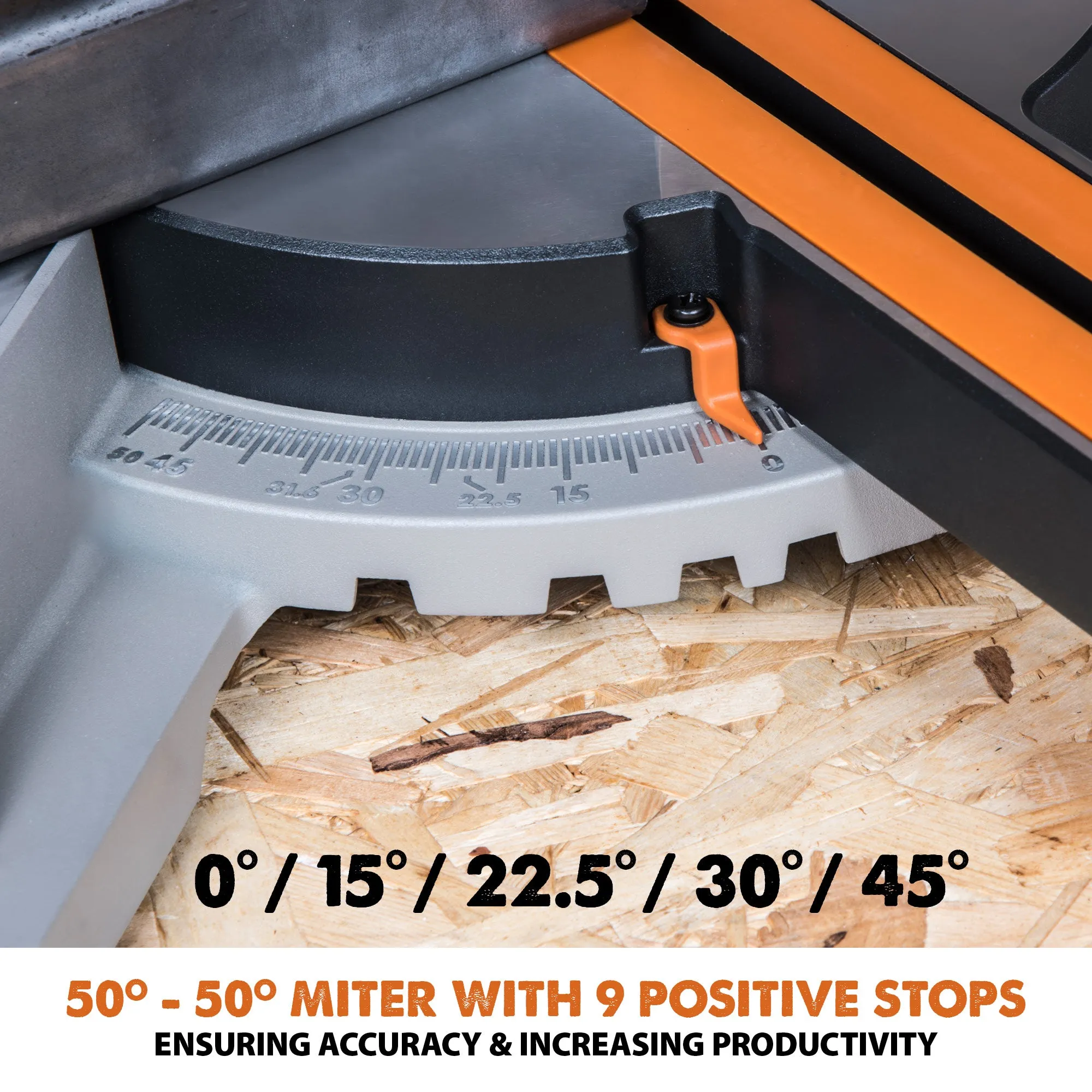

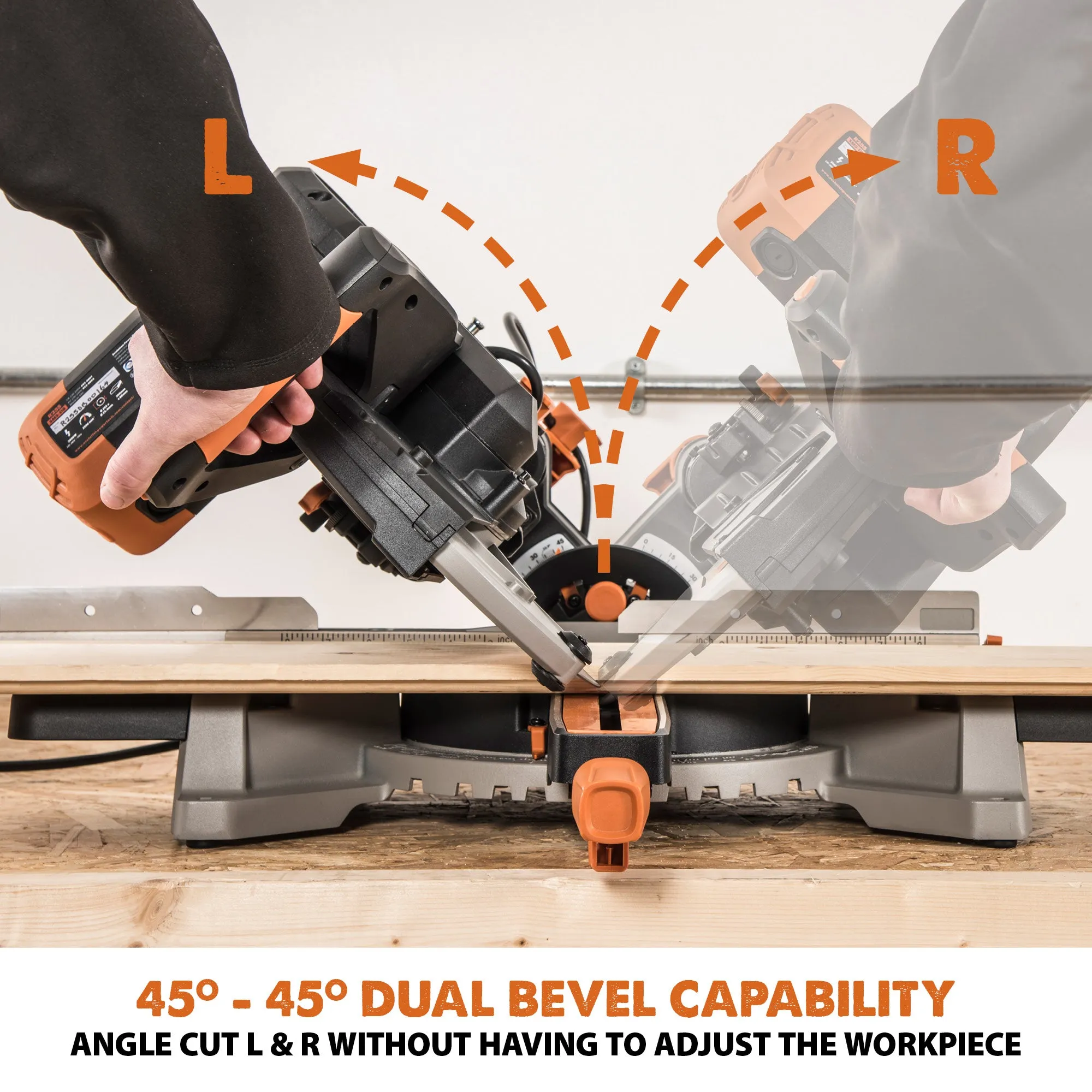

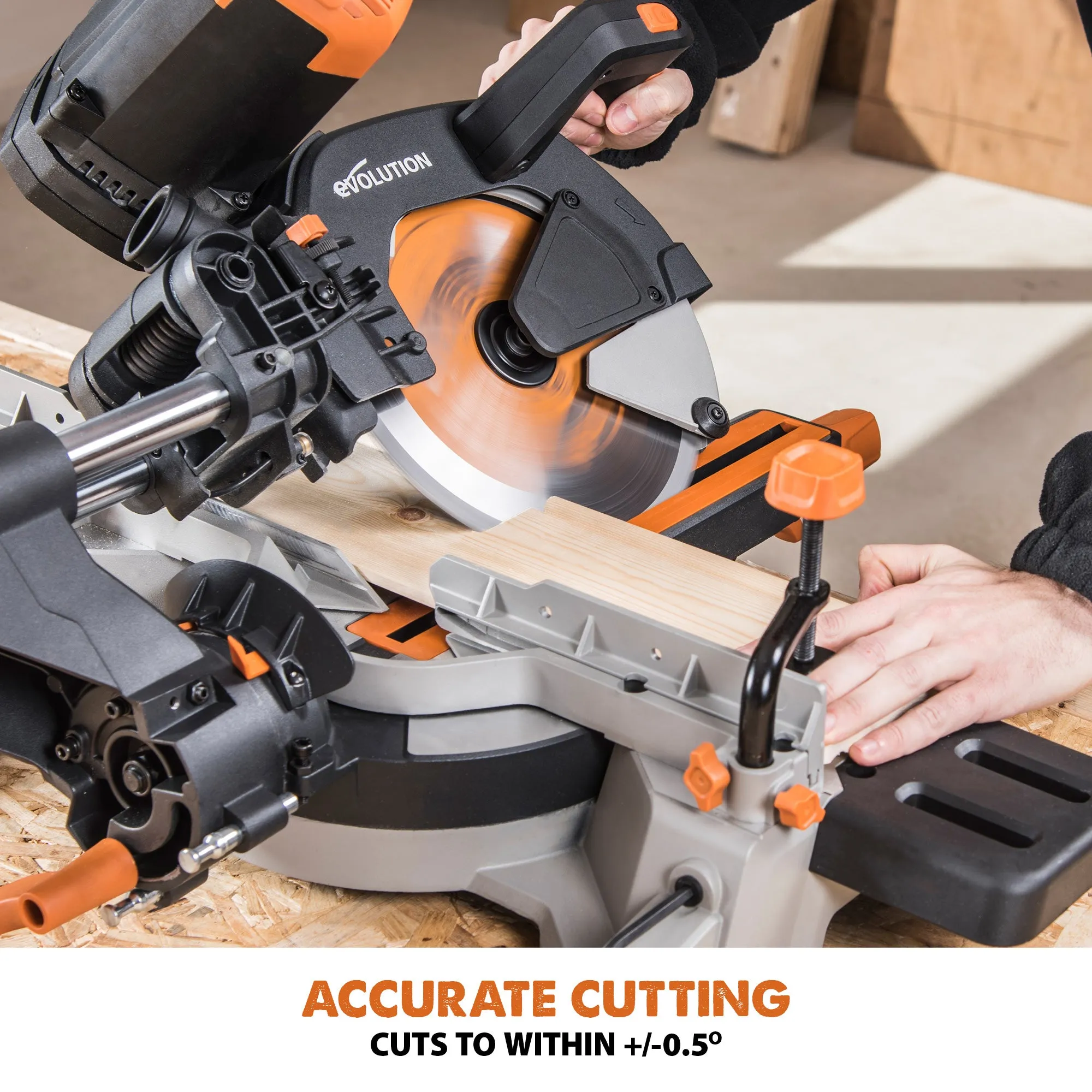

- Cut to within /- 0.5˚ with 45° - 45° bevel tilt and 50˚ - 50˚ miter angles with quick click miter stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.
- An impressive 11-13/16 x 3-1/8 inch max. crosscut capacity.

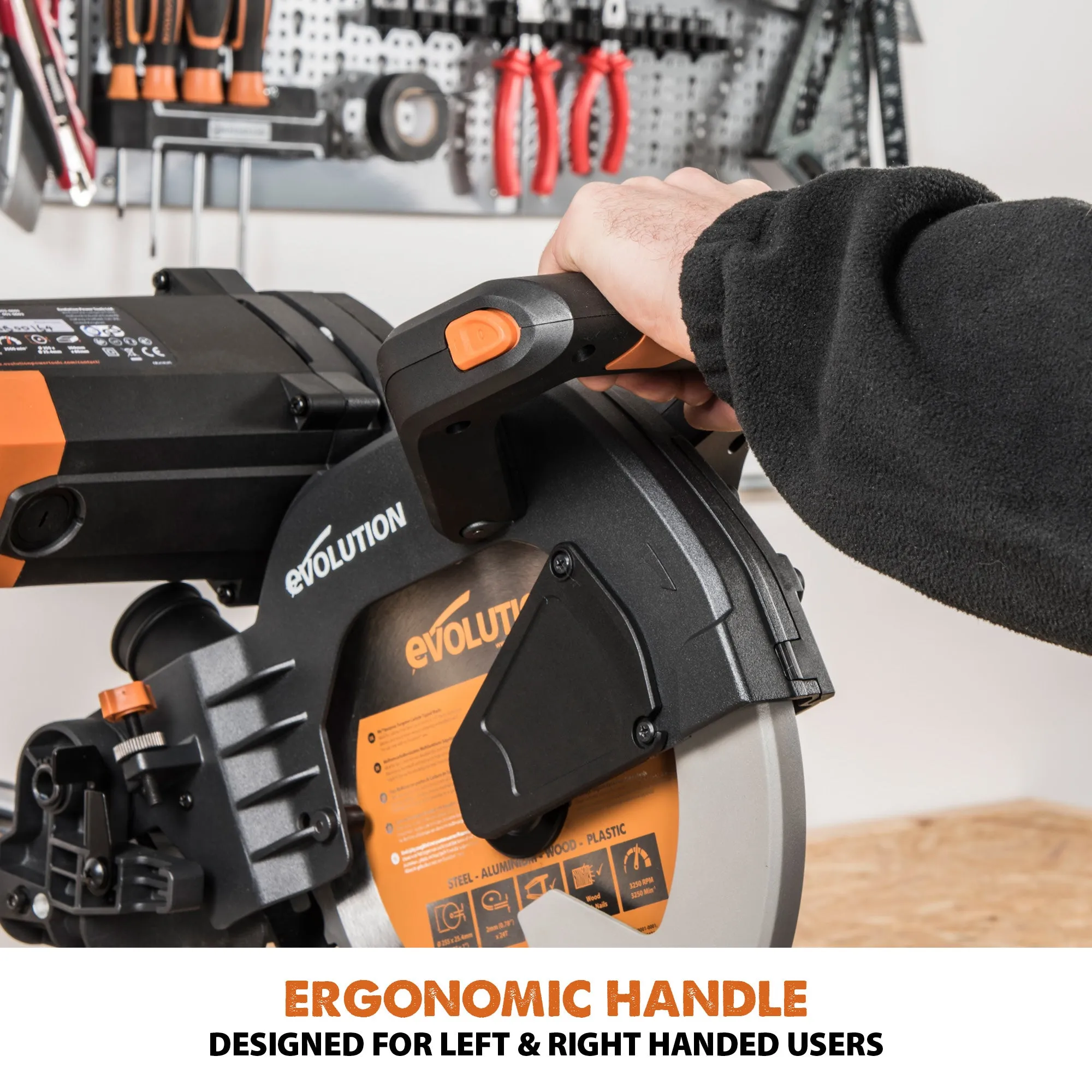

- Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combat repetitive strain.

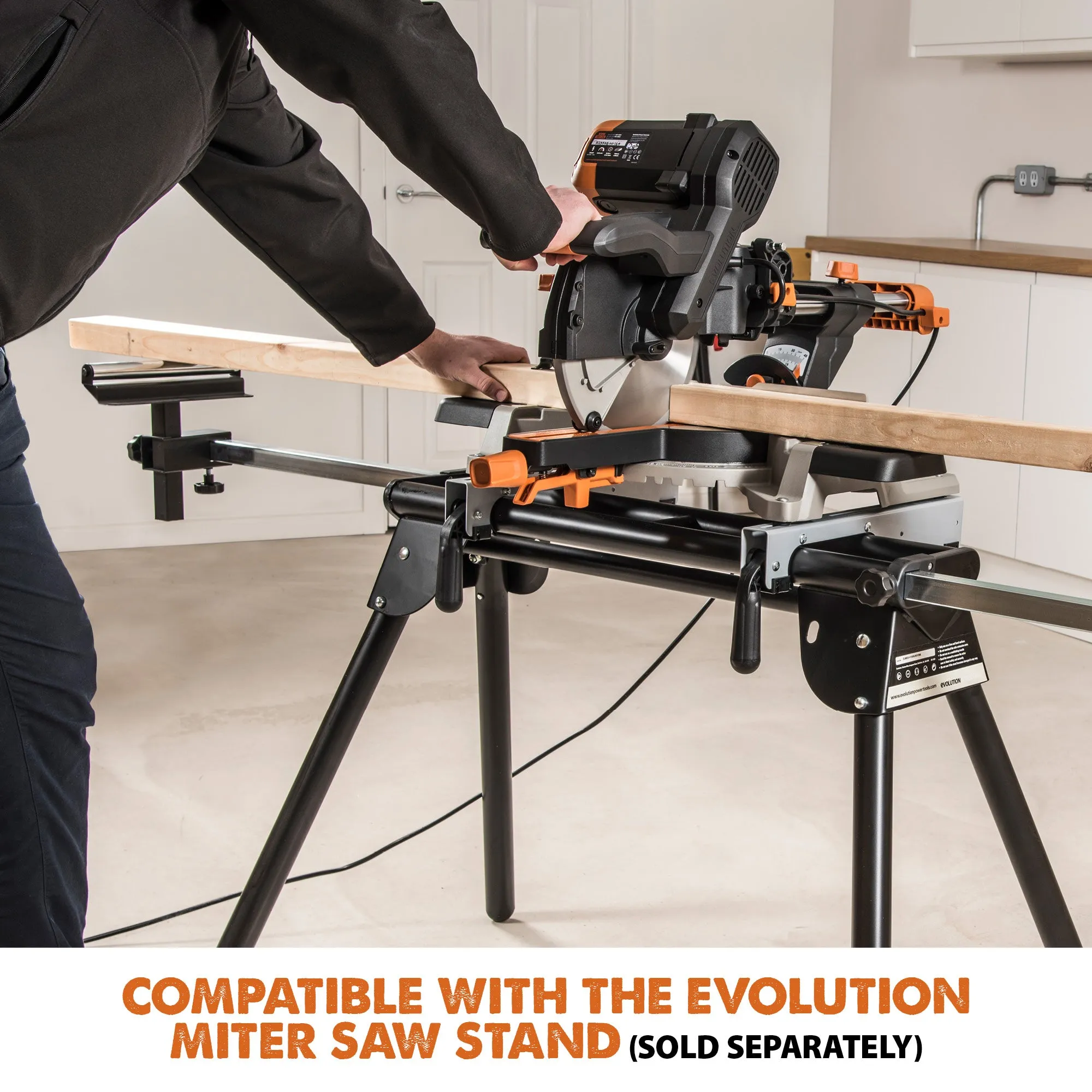

- Compatible with Evolution's Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease.

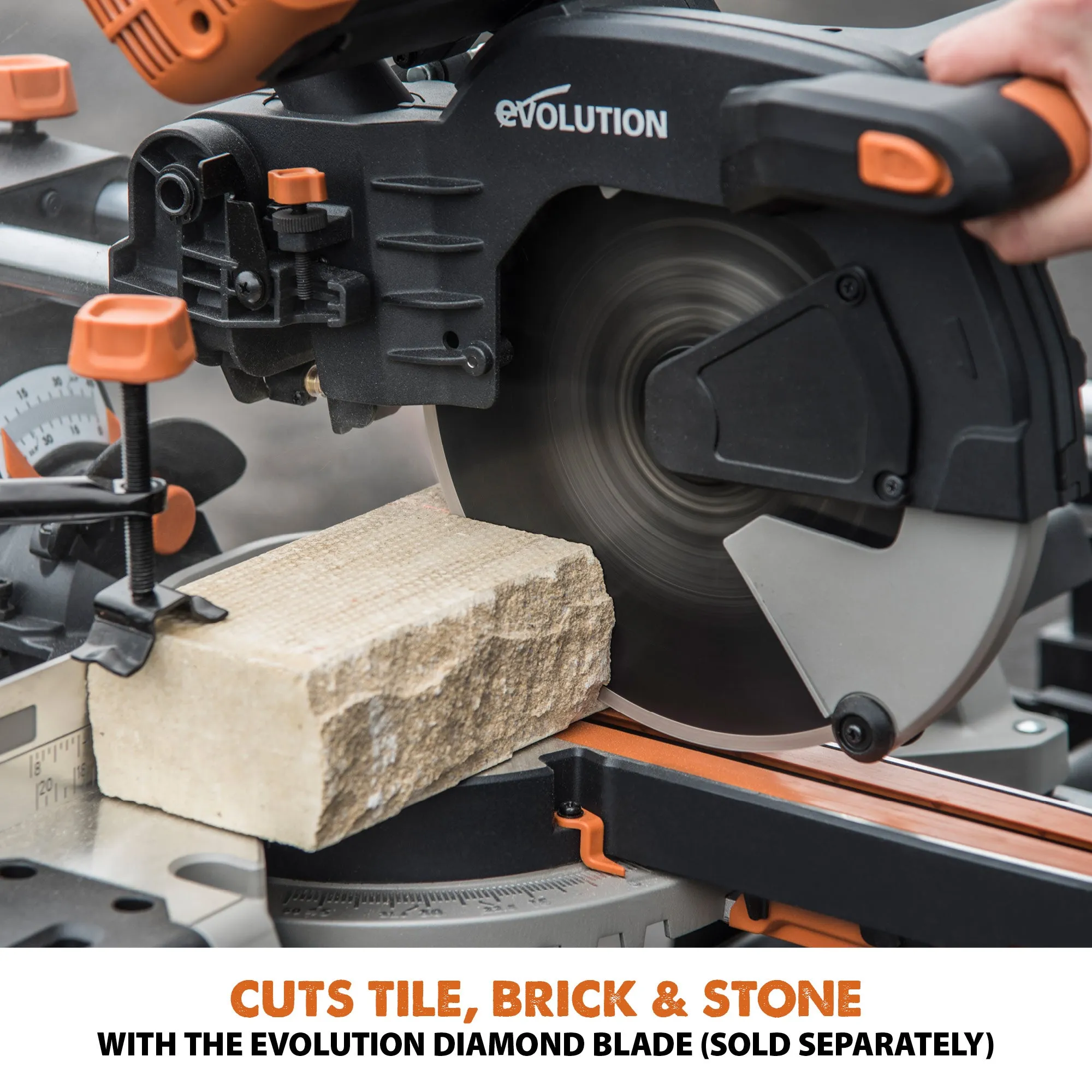

- The Evolution 10 in. diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
- Premium Japanese Tungsten-Carbide-Tipped (TCT) 10-inch blade included for long-life, multi-material cutting.
- Integrated carry handles - easy to carry & transport around the workplace.

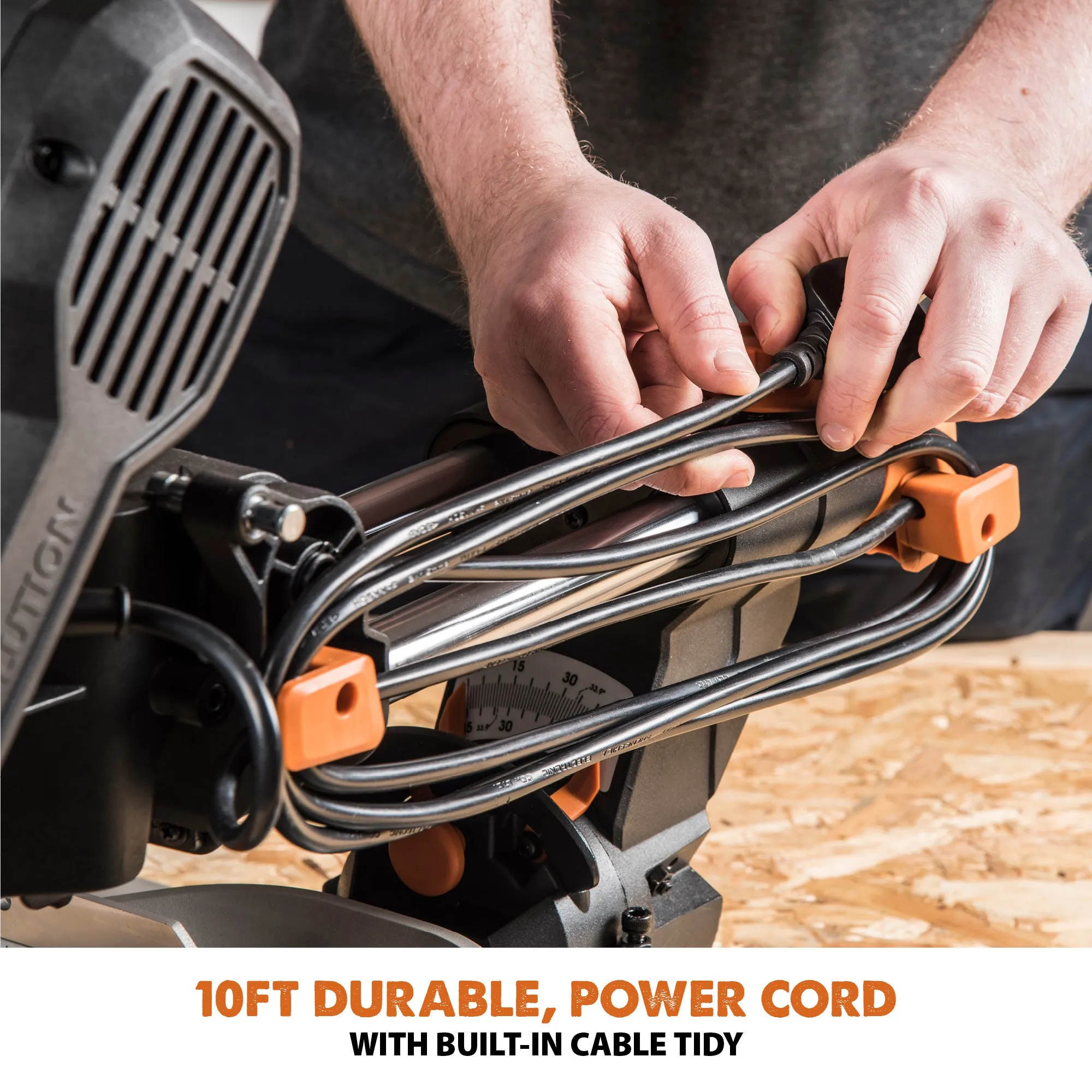

- 10ft rubber power cable gives you the power and reaches you need to get the job done.
- 3 Year limited warranty.
Machine Spec
| Motor (120V 60Hz): | 15 A |
| Speed No Load: | 2600 rpm |
| Max. Bevel (Left): | 45° - 45° |
| Max. Miter: | 50° - 50° |
| Cable Length: | 10 ft |
Blade Spec
| Blade Dia.: | 10 in. |
| No. of Teeth: | 24 |
| Bore: | 1 in. |
| Kerf: | 0-5/64 in. |
Cutting Capacities

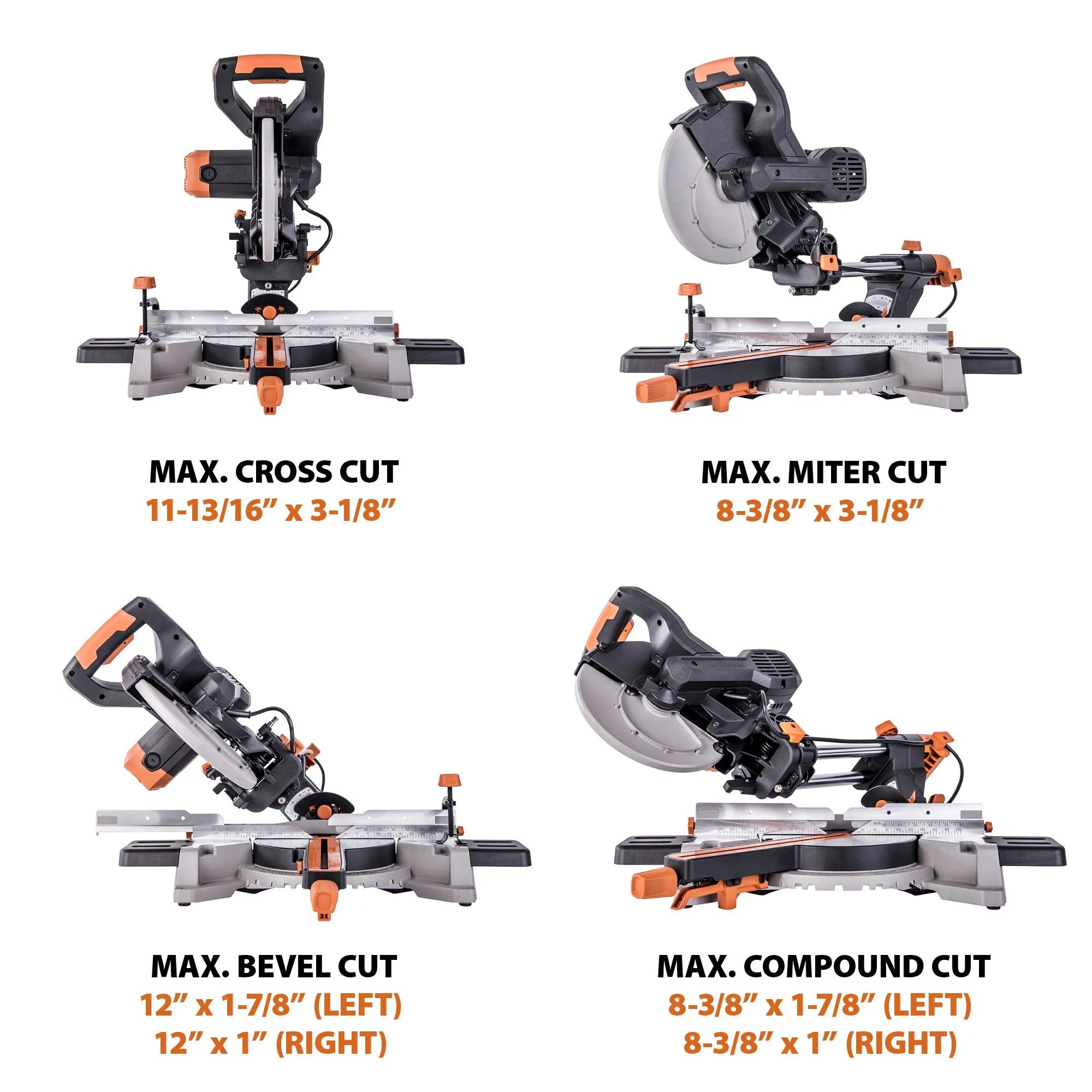

| Max. Cross Cut (0° x 0°): | 11-13/16 x 3-1/8 in. |
| Max. Bevel Cut Left (0° x 45°): | 11-13/16 x 1-7/8 in. |
| Max. Bevel Cut Right (0° x 45°): | 11-13/16 x 1 in. |
| Max. Miter Cut (45° x 0°): | 8-3/8 x 3-1/8 in. |
| Max. Compound Cut Left (45° x 45°): | 8-3/8 x 1-7/8 in. |
| Max. Compound Cut Right (45° x 45°): | 8-3/8 x 1 in. |
| Mild Steel Plate (Max. Thickness): | 1/4 in. |
| Mild Steel Box Section (Max. Wall Thickness): | 1/8 in. |
Items Included
| Machine Table Extensions x2 | 6mm & 4mm Dual-Ended Hex Key |
| Rotary Table And Neck | Cutting Head |
| Carriage Slides | Mitre Locking Knob |
| Mains Cable | Guide/Clamp |
| Self Tapping Cap Screw x1 | M6 x 16mm Socket Headed |
| Screws x4 M5 x 12mm | Socket Headed Screws x2 |
| Laser Lens Cap | Cable Clip |
| Slide Locking Knob | Hold Down Clamp |
| 10 In. (255mm) 24 Tooth Blade | Instruction Manual |
Dimensions & Weights
| Packaging Dimensions: | 22-7/16 x 21-29/64 x 15-5/32 in. |
| Product Weight: | 36.3 lbs |
| Packaged Weight: | 38 lbs |
Noise Data
| Sound Pressure Level LPA: | 95,8dB(A) K:3dB(A) |
| Sound Power Level LWA: | 108,8dB(A) K=3 dB(A) |

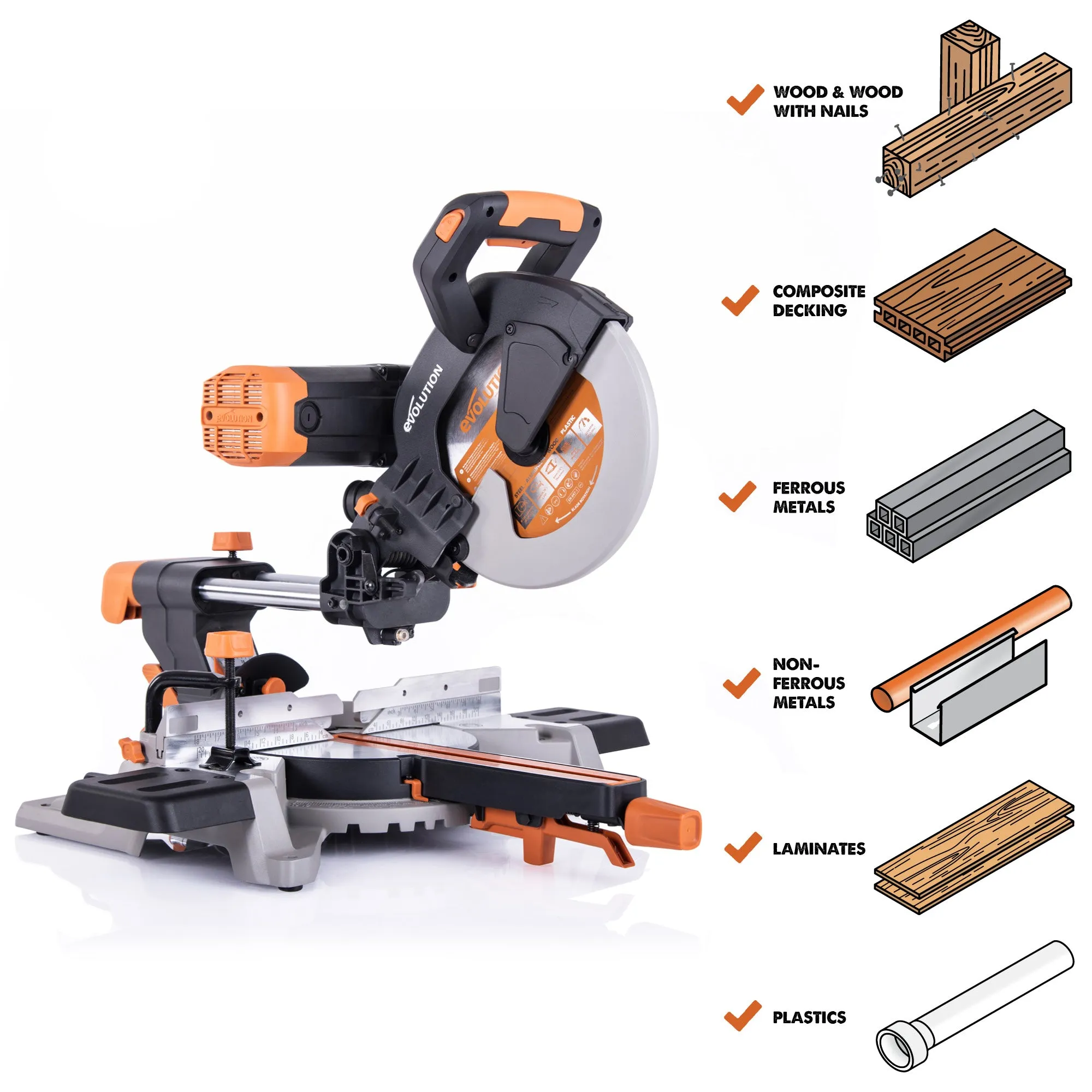

Cutting Applications
| Wood | Hardwood & tanalized decking, MDF laminates, moldings, reclaimed wood with nails, scaffold boards & poles, stud-work. |
| Ferrous Metal | Mild Steel, angled, box section, square tube, metal stud drywalling, rebar, RSJs, plate (1/4 inch), unistrut. |
| Non-Ferrous Metal | Aluminum, armored cables, cable tray, copper, floor edgings, roof flashings, stair nosings. |
| Plastic | Electrical conduit, plastic pipes, plexiglass, rubber & reinforced hoses, (WPC) Wood Plastic Composites. |
| Not Recommended | Hardened high carbon, coated and stainless steel. Note: Cutting galvanized steel may reduce blade life. |
