Product Details
＋

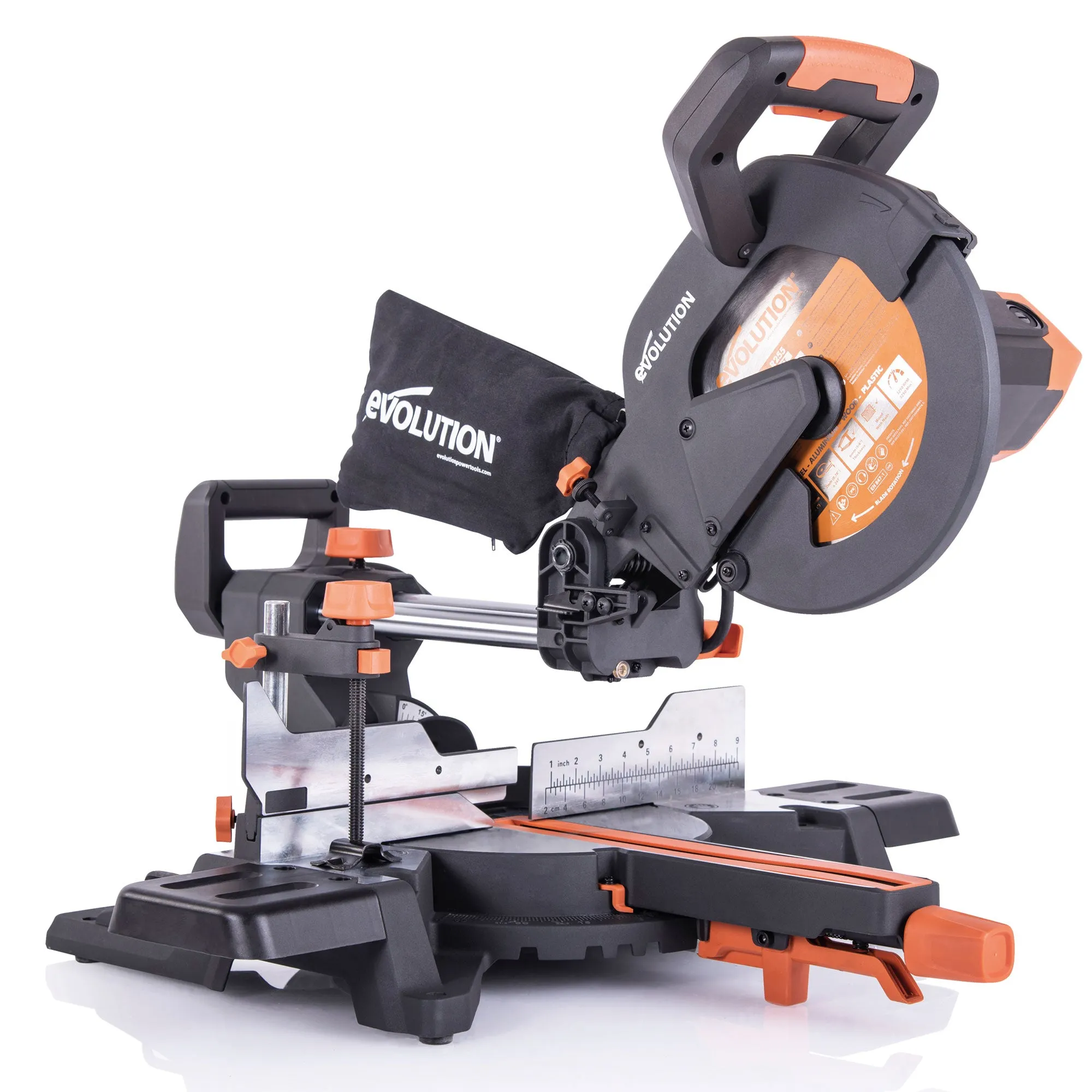

The Evolution R255SMS is everything you asked for in a miter saw and more. Capable of cutting 4-inch posts, cornices, skirting and hardwoods such as oak, walnut, maple and more. The speed and power of the hi-torque motor and the configuration of the Evolution blade tooth design allow you to cut through a variety of materials with ease. Including wood with embedded nails. Every detail of this design has been considered and refined to deliver accuracy, power, and reliability.

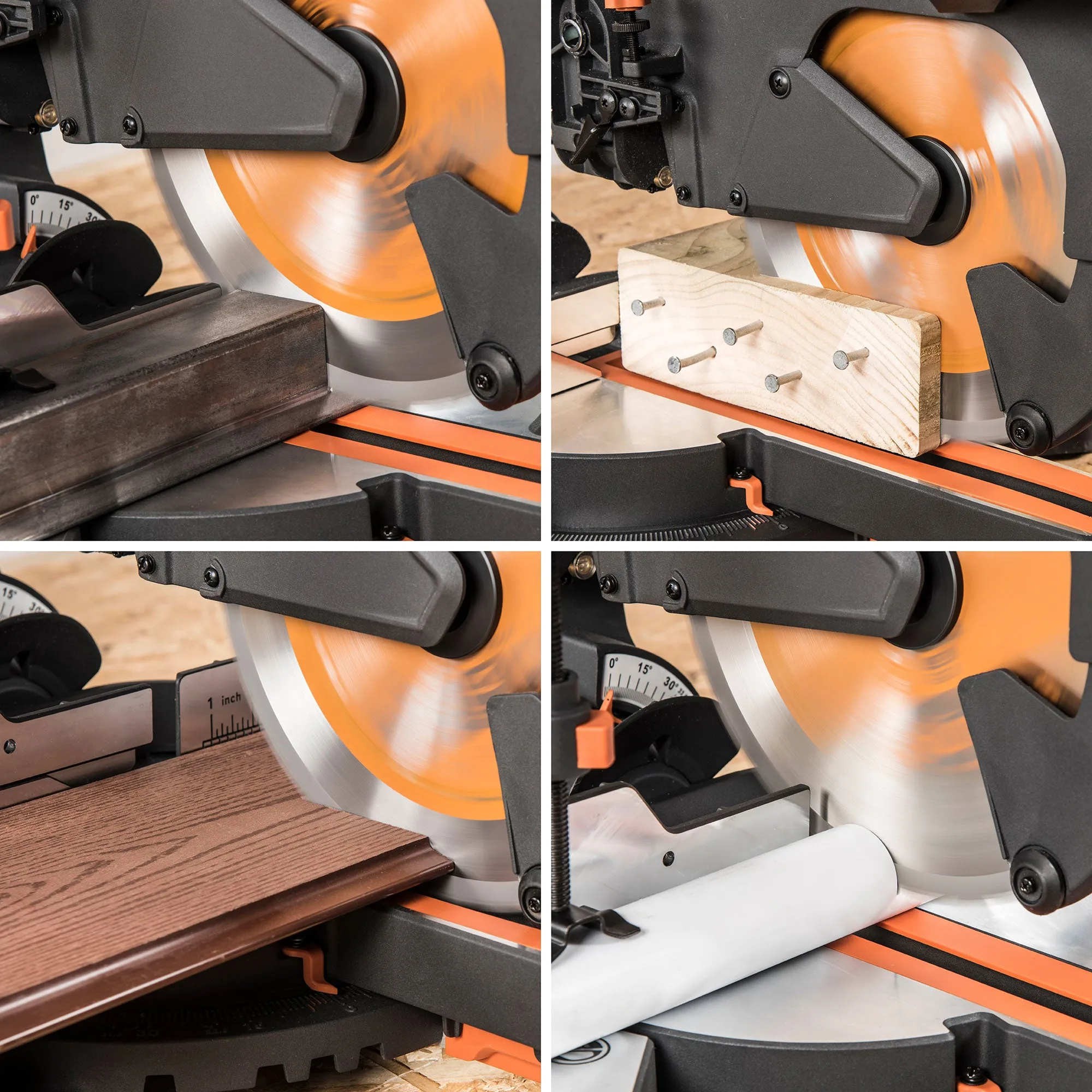

- Multi-Material cutting technology. One saw, one blade, cuts all.*

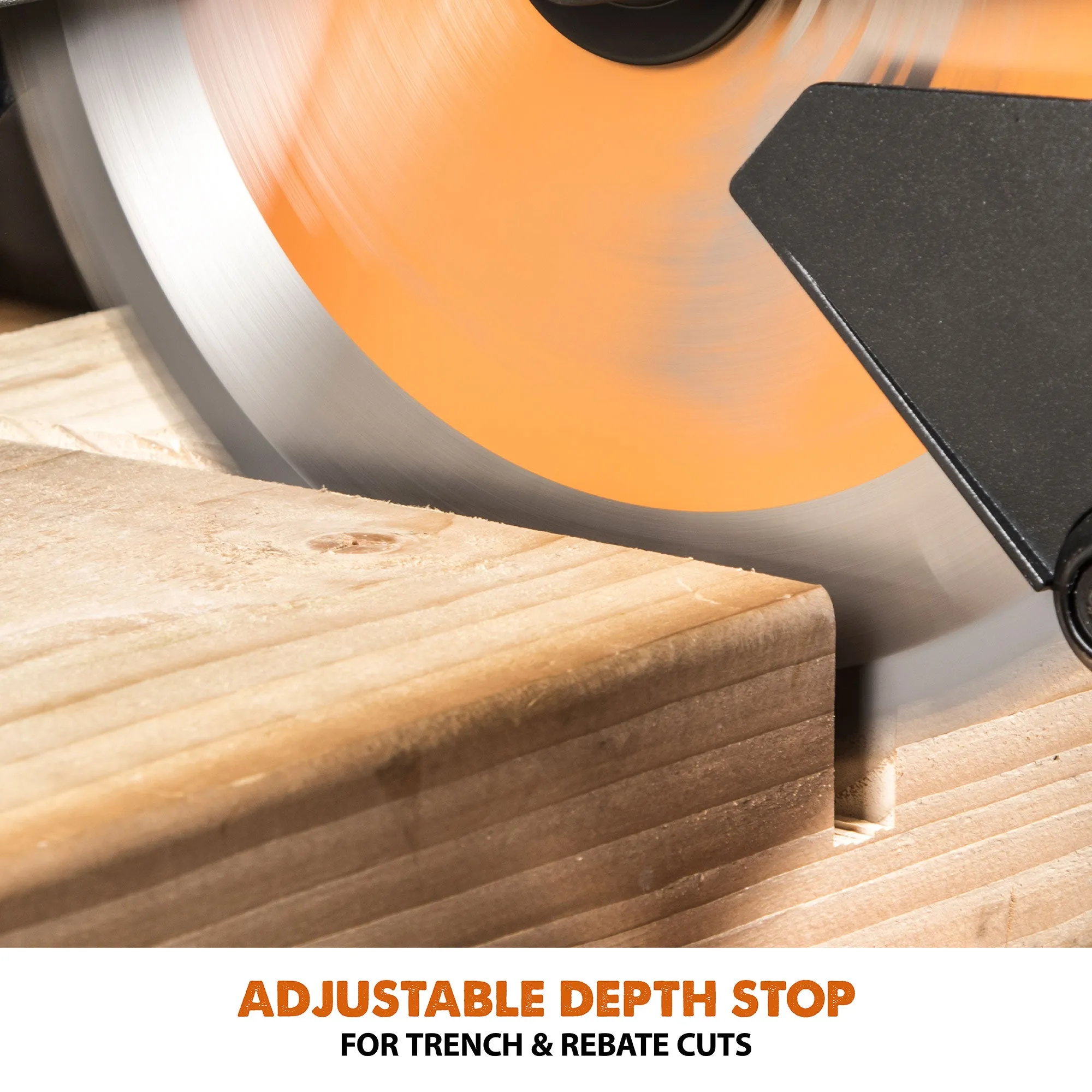

- Accurate cutting with 11-3/4 inch sliding functionality, adjustable depth of cut and laser precision guidance.

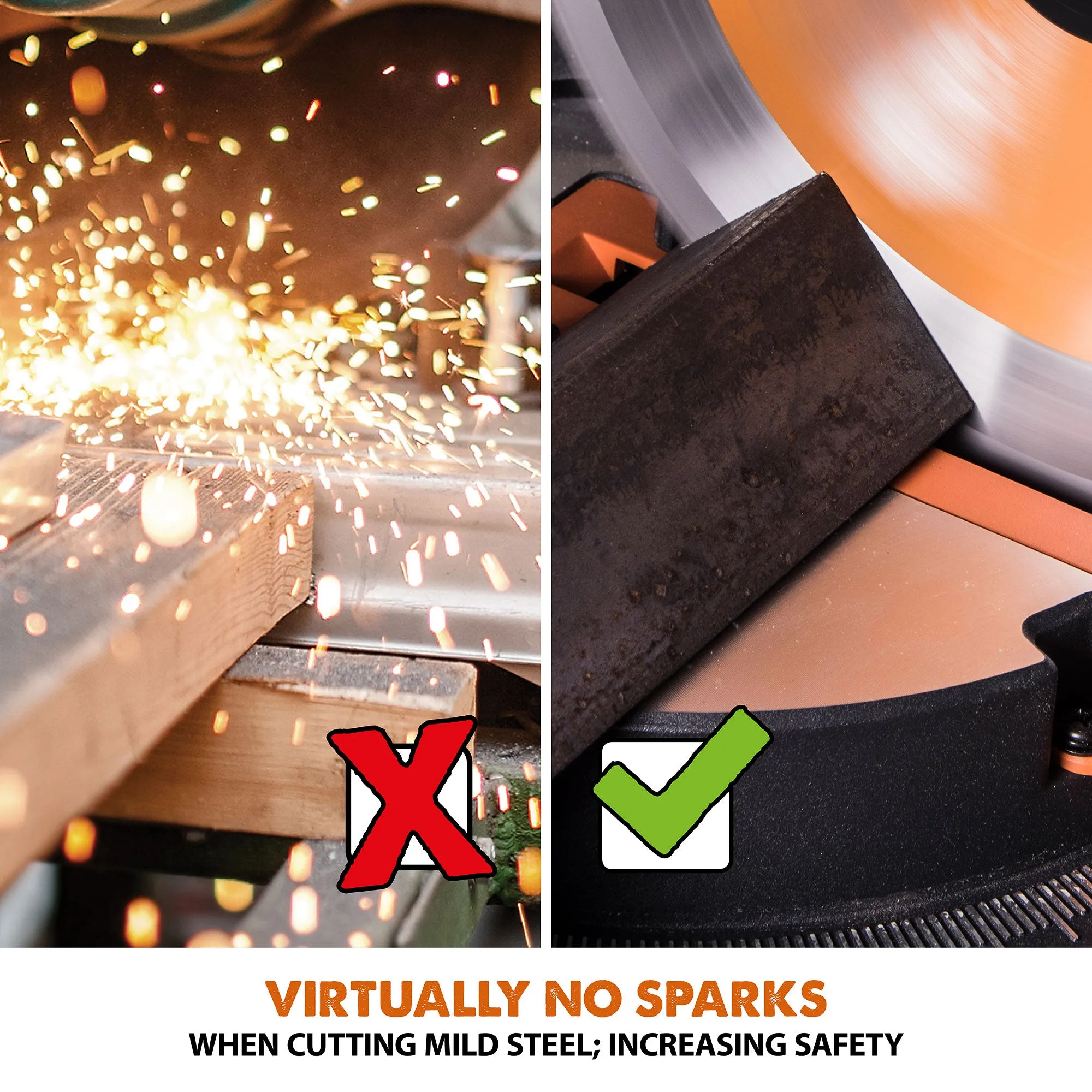

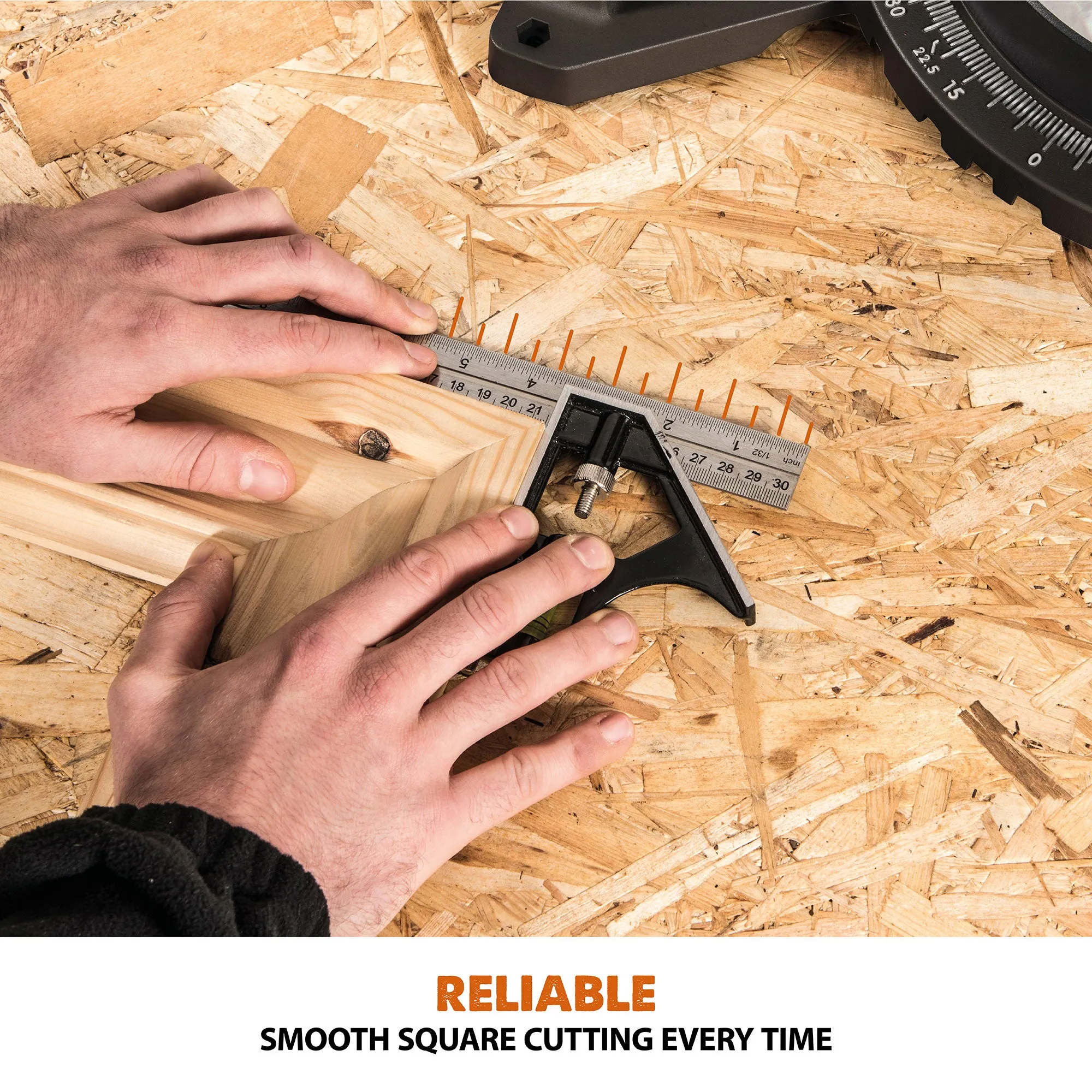

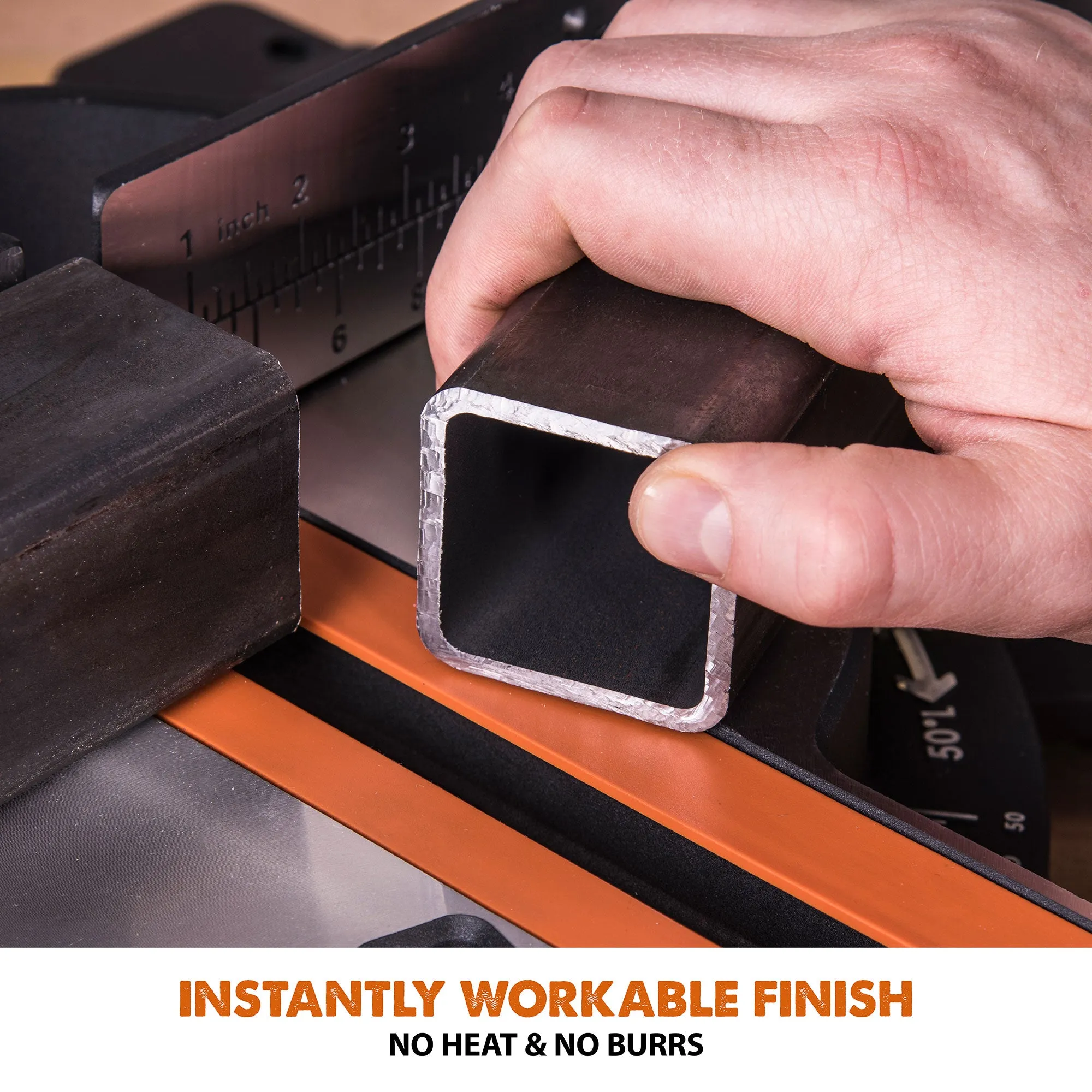

- Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs, and virtually no sparks.

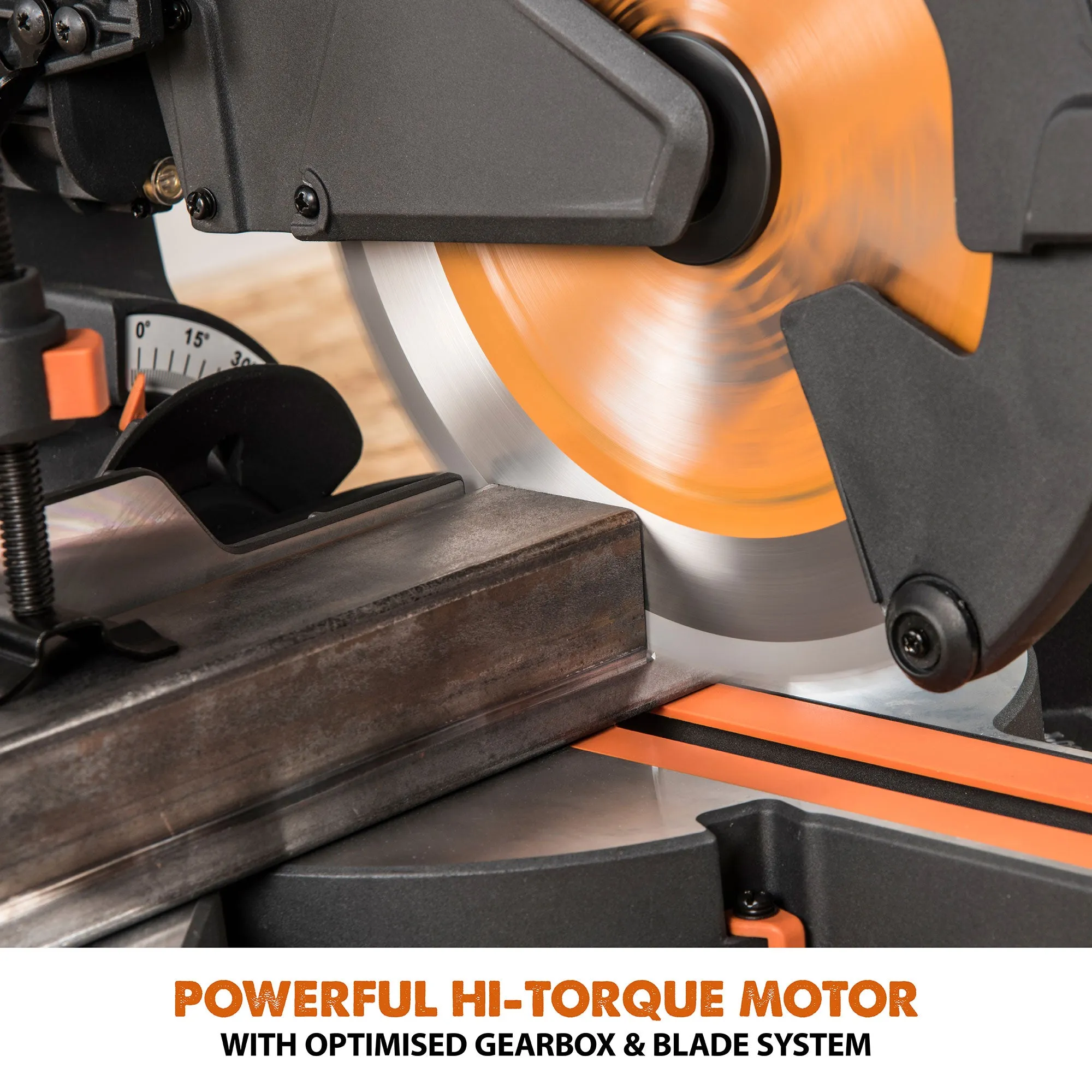

- Powerful 15A hi-torque, optimized gearbox, and blade system increase motor and blade life to cut through a variety of materials with ease.
- Perform accurate Crosscuts, Miter cuts, Bevel cuts and Compound cuts with adjustable precision settings.

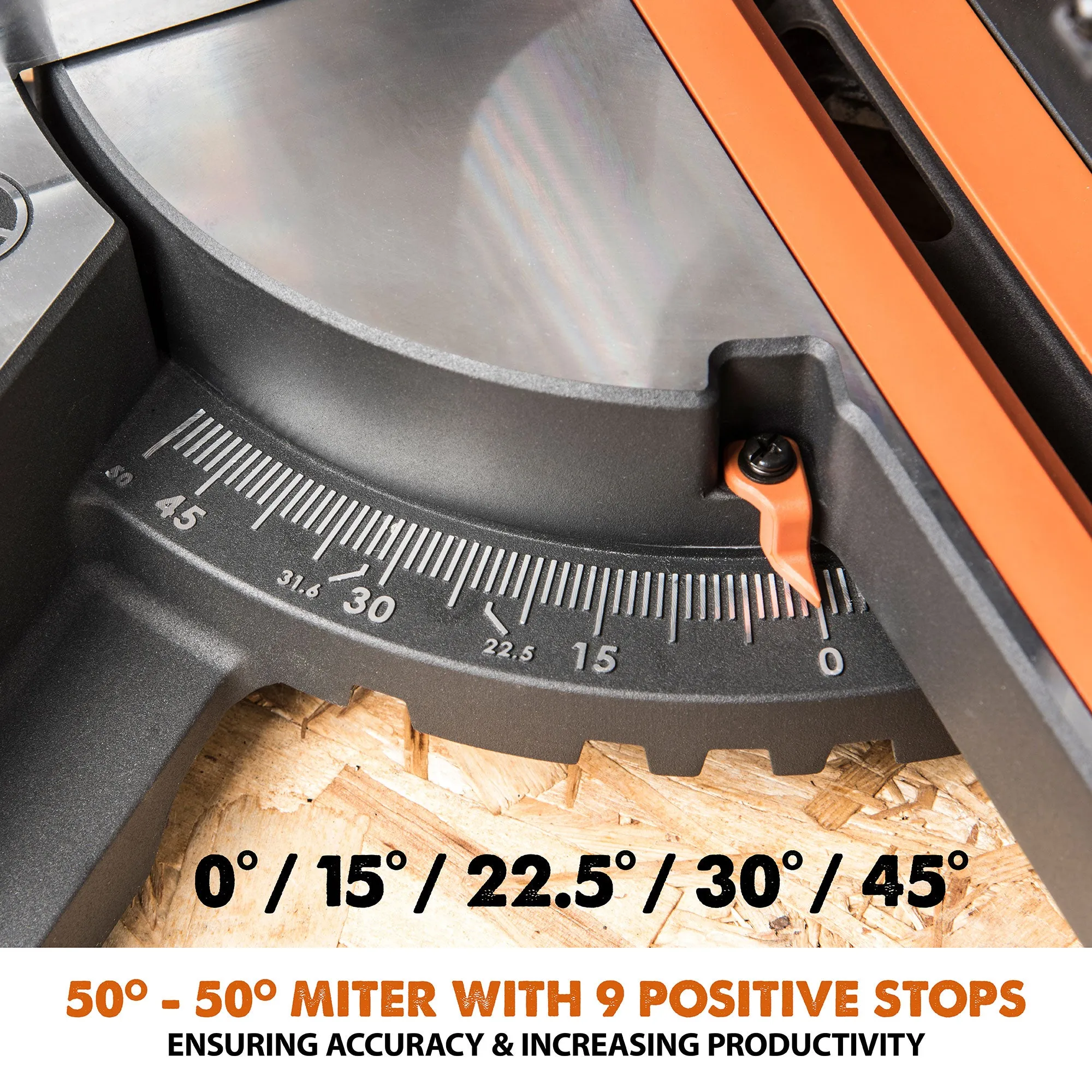

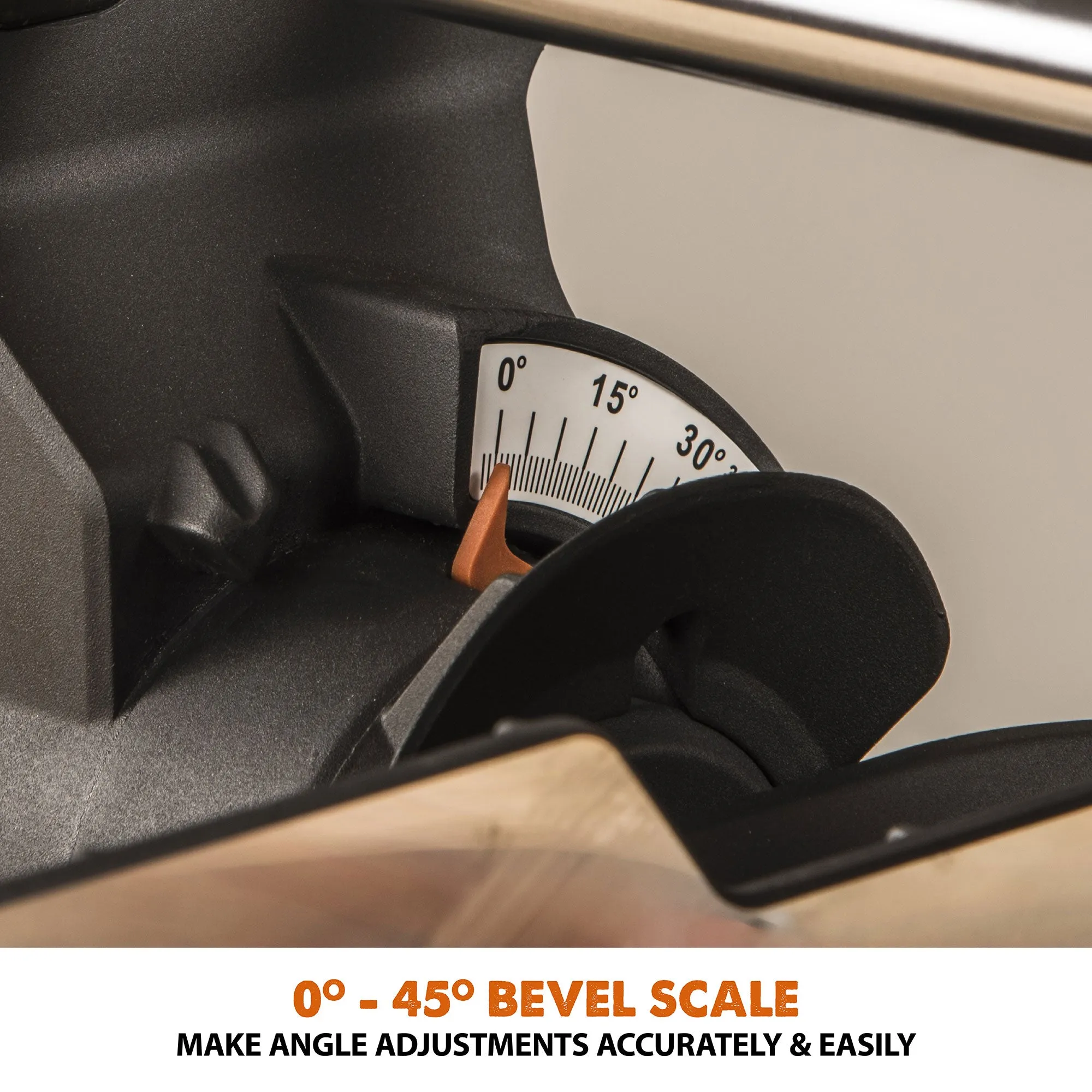

- Cut to within /- 0.5˚ with 0° - 45° bevel tilt and 50˚ - 50˚ miter angles with quick click miter stops at 0˚, 15, 22.5, 30, and 45˚ both left and right.

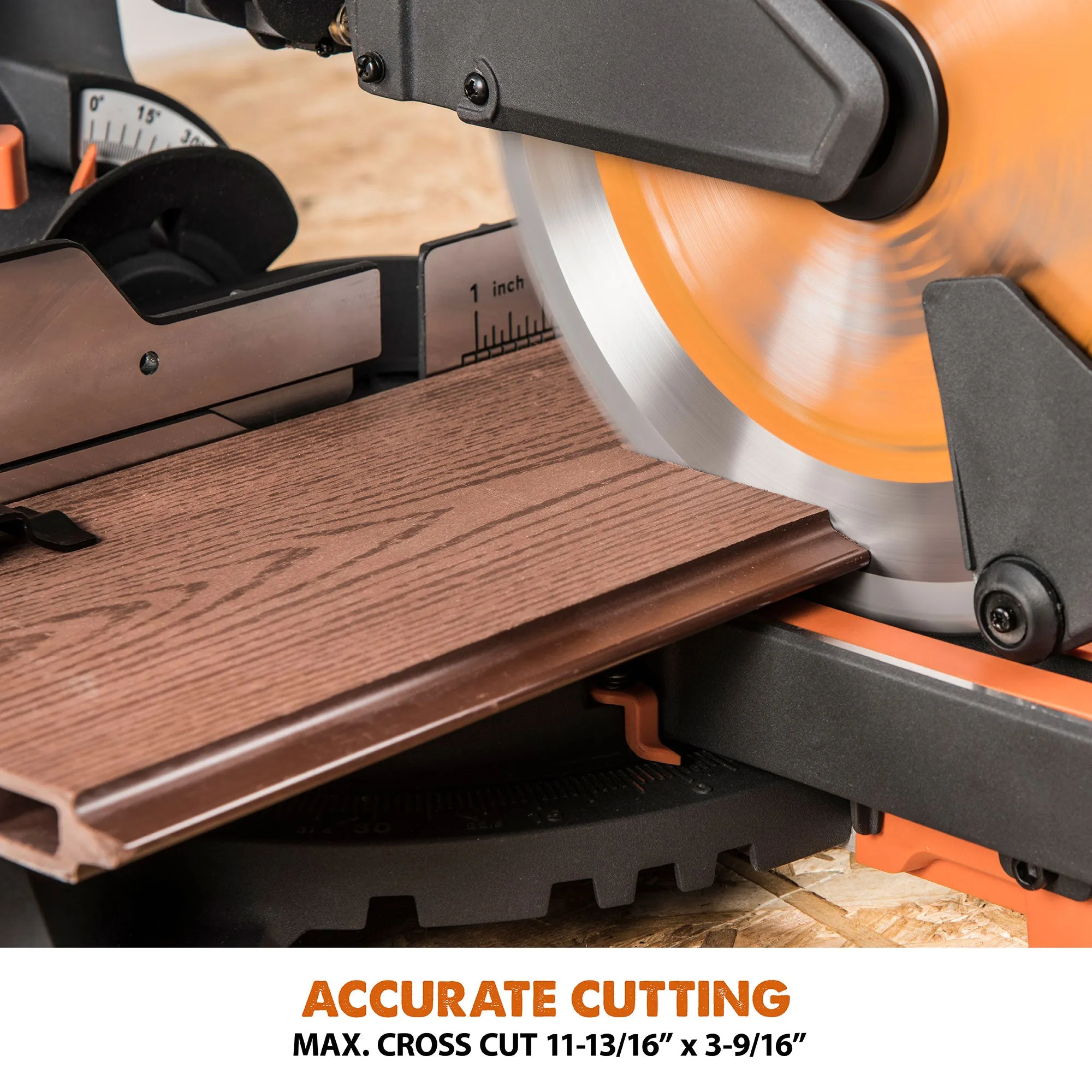

- An impressive 11-3/4 x 3-9/16 inch max. crosscut capacity enables you to cut 4 x 4-inch posts.

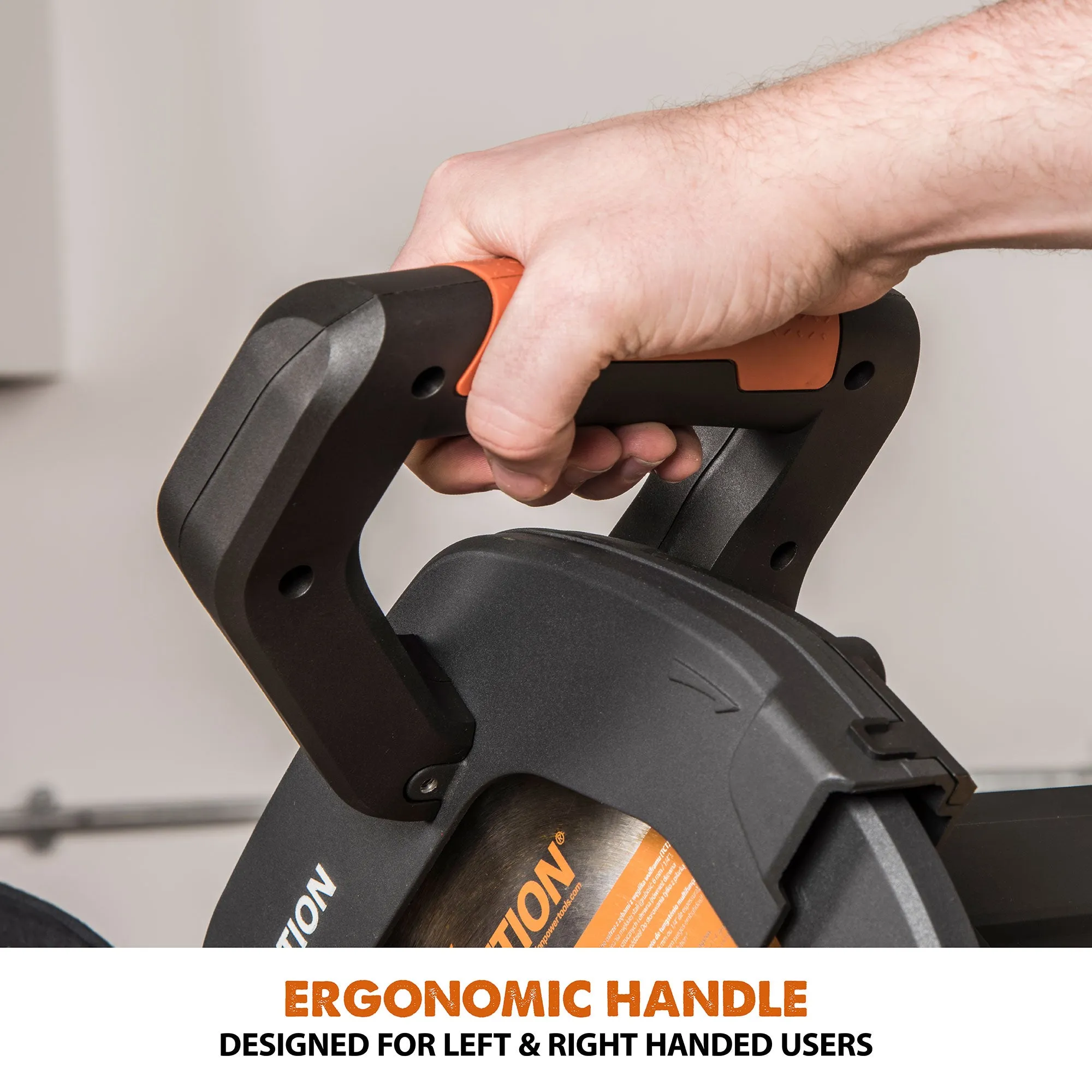

- Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combat repetitive strain.

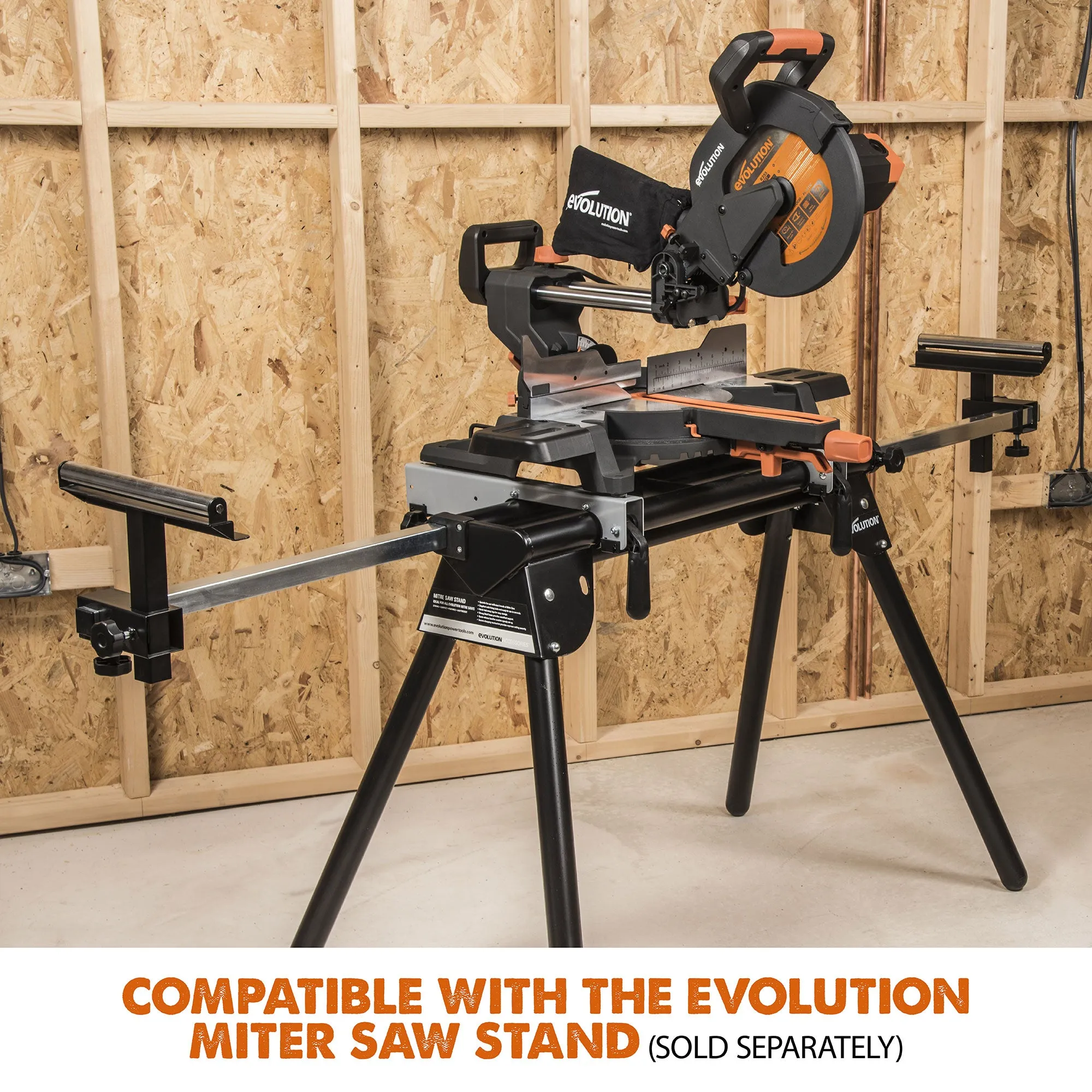

- Compatible with Evolution's Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease.
- The Evolution 10 inch Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
- 3 Year limited warranty.
PLUS Features

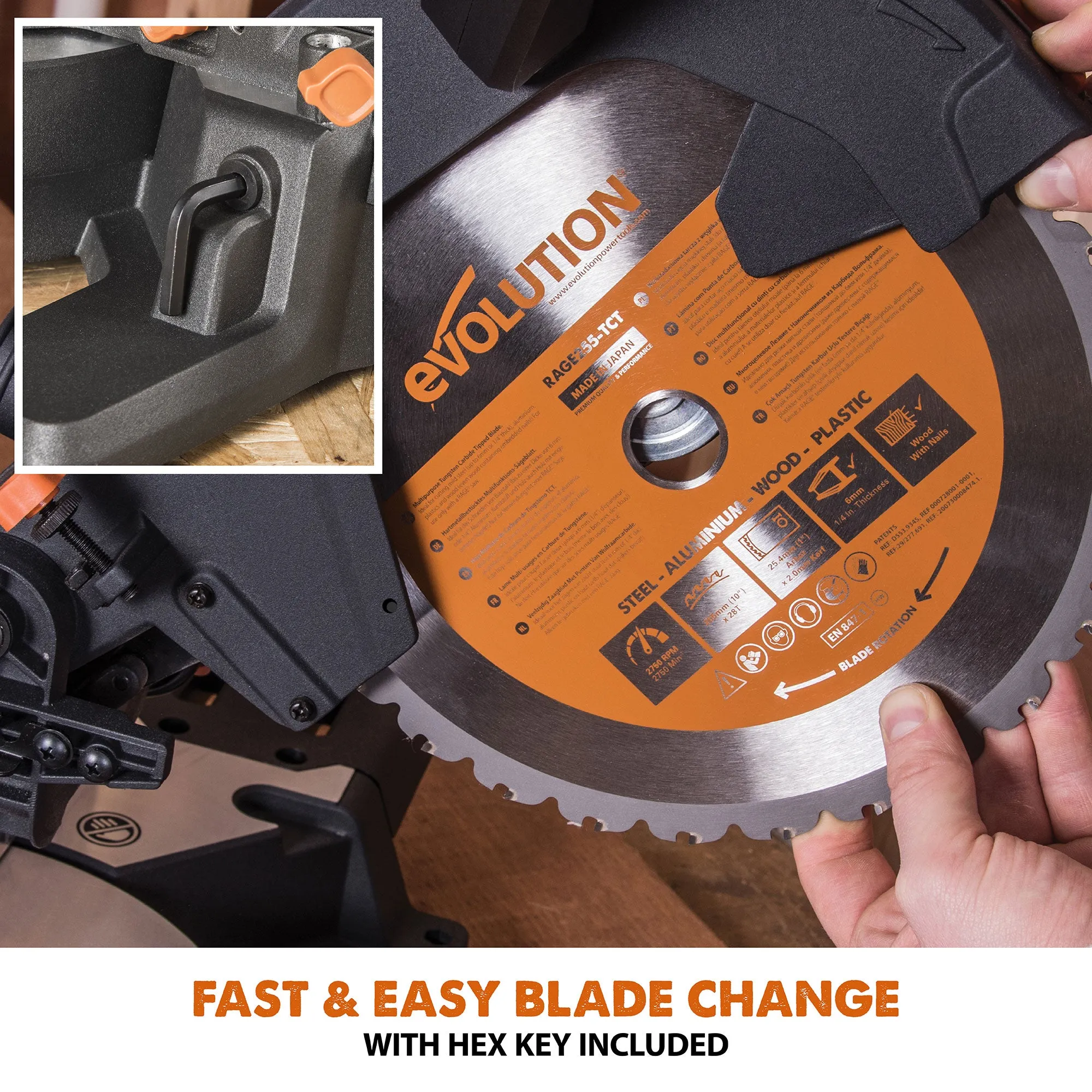

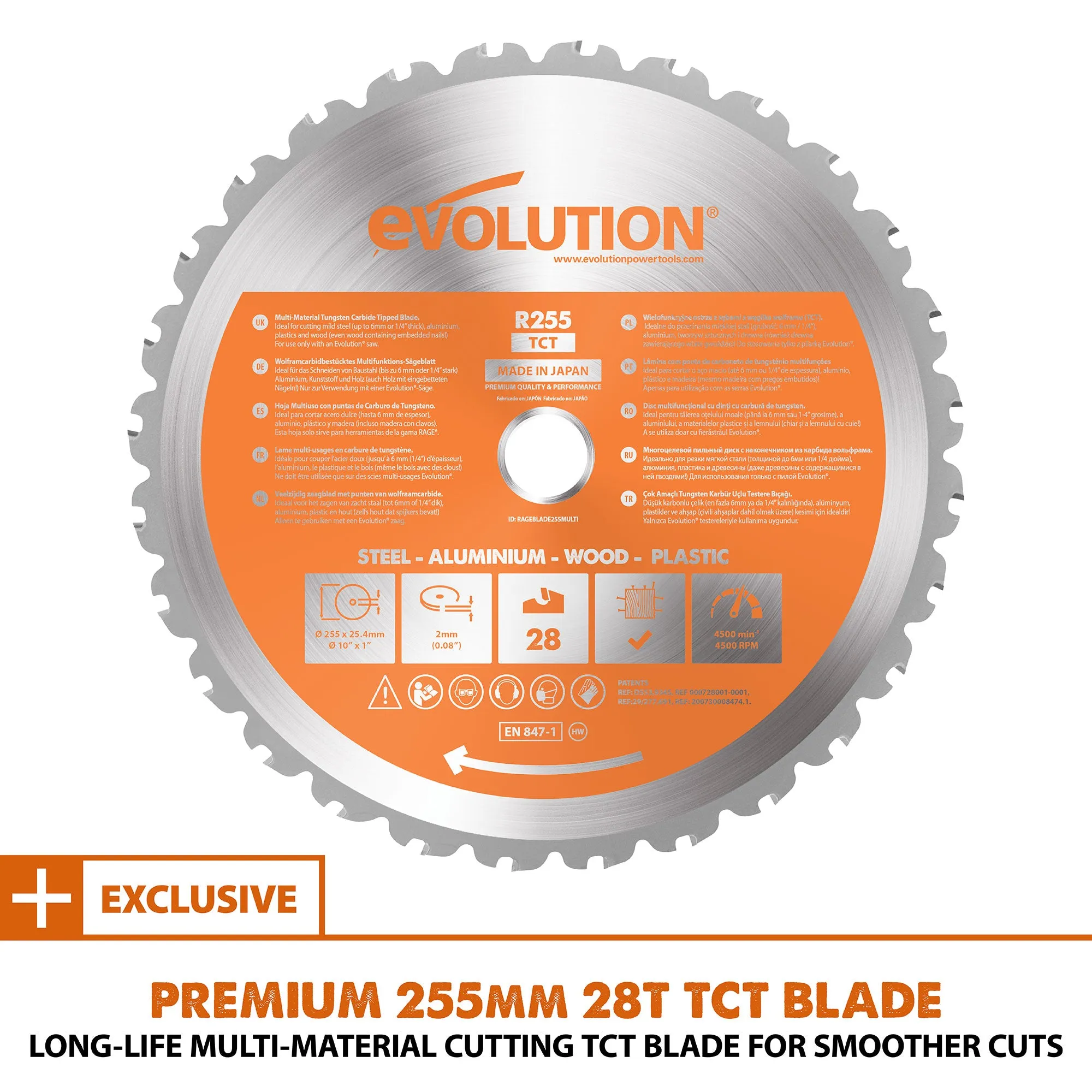

- Premium Japanese Tungsten-Carbide-Tipped (TCT) 10-inch blade included for long-life, multi-material cutting.

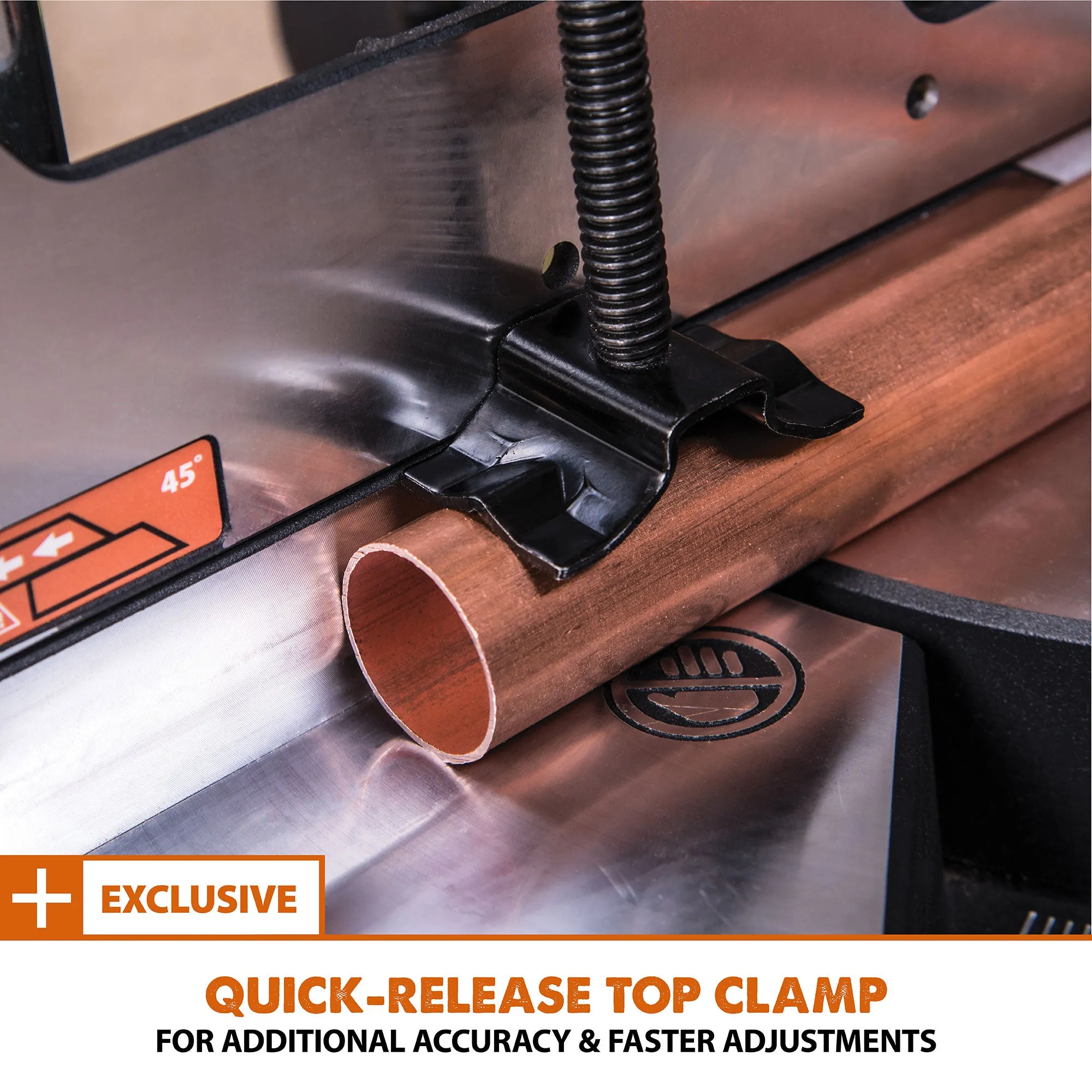

- Quick-Release top clamp included for additional safety and faster adjustments.

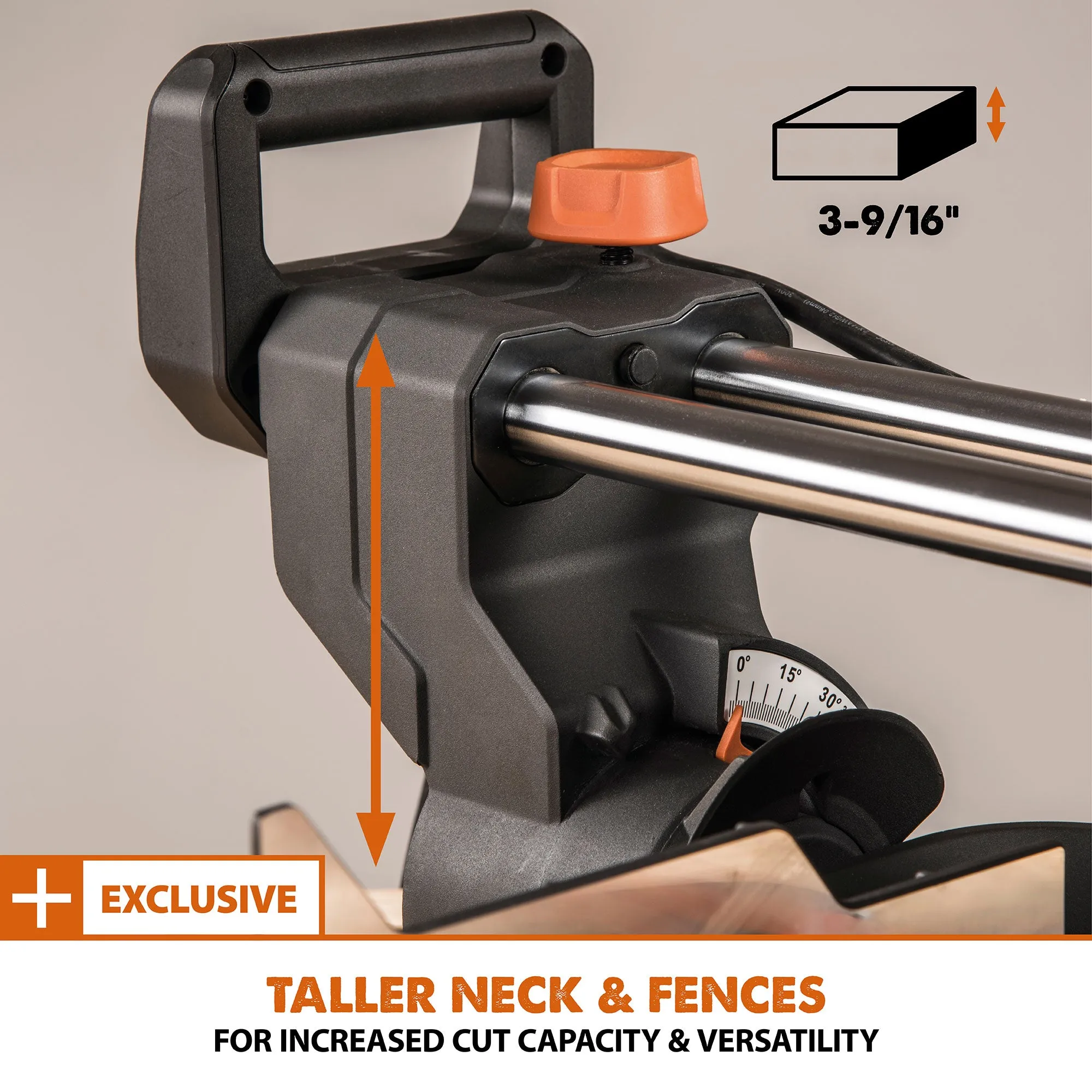

- Tall neck and fences for increase cut capacity and versatility when cutting materials stood upright such as skirting and cornices.

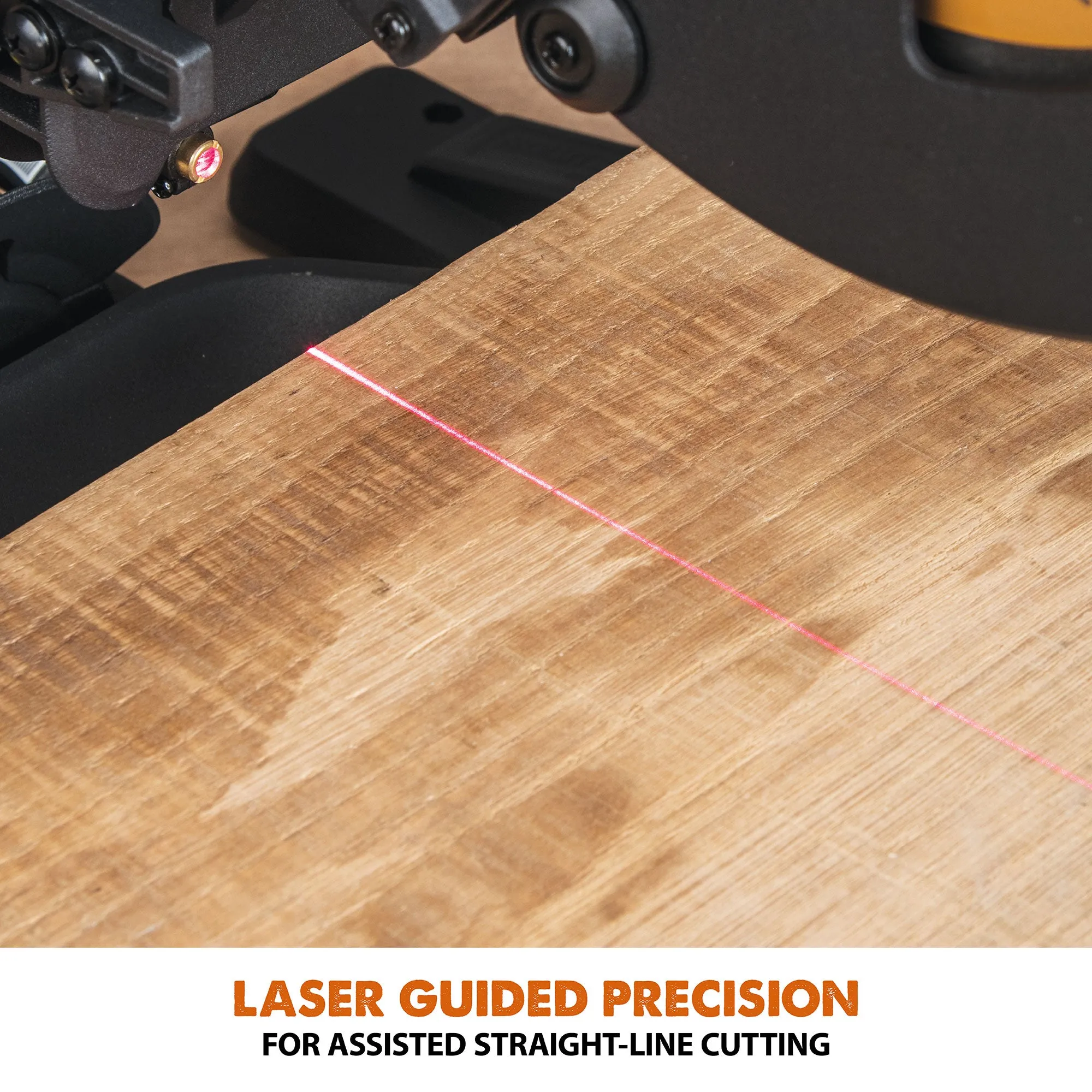

- Laser-guided precision projects the cutting line on your workpiece for assisted straight-line cutting.

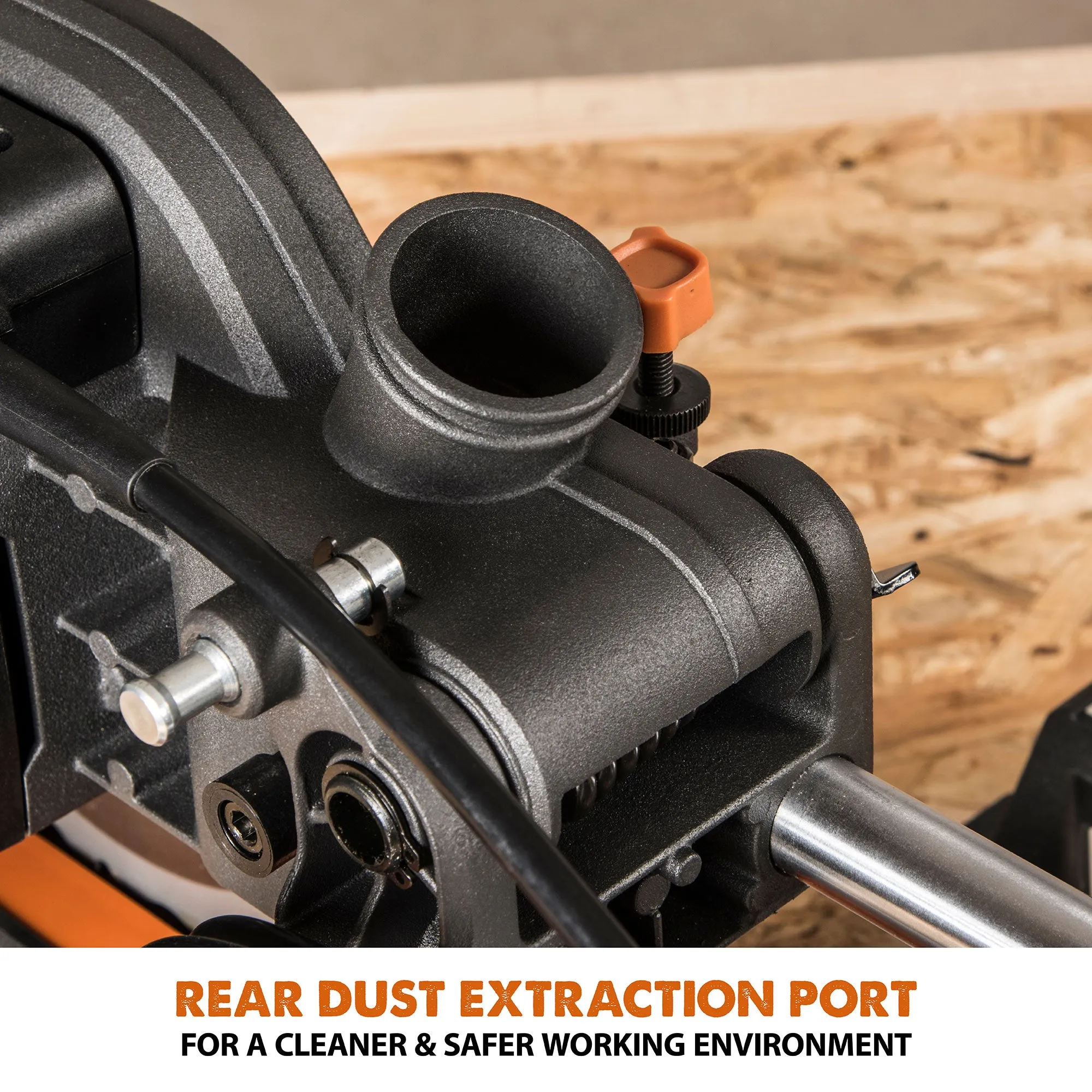

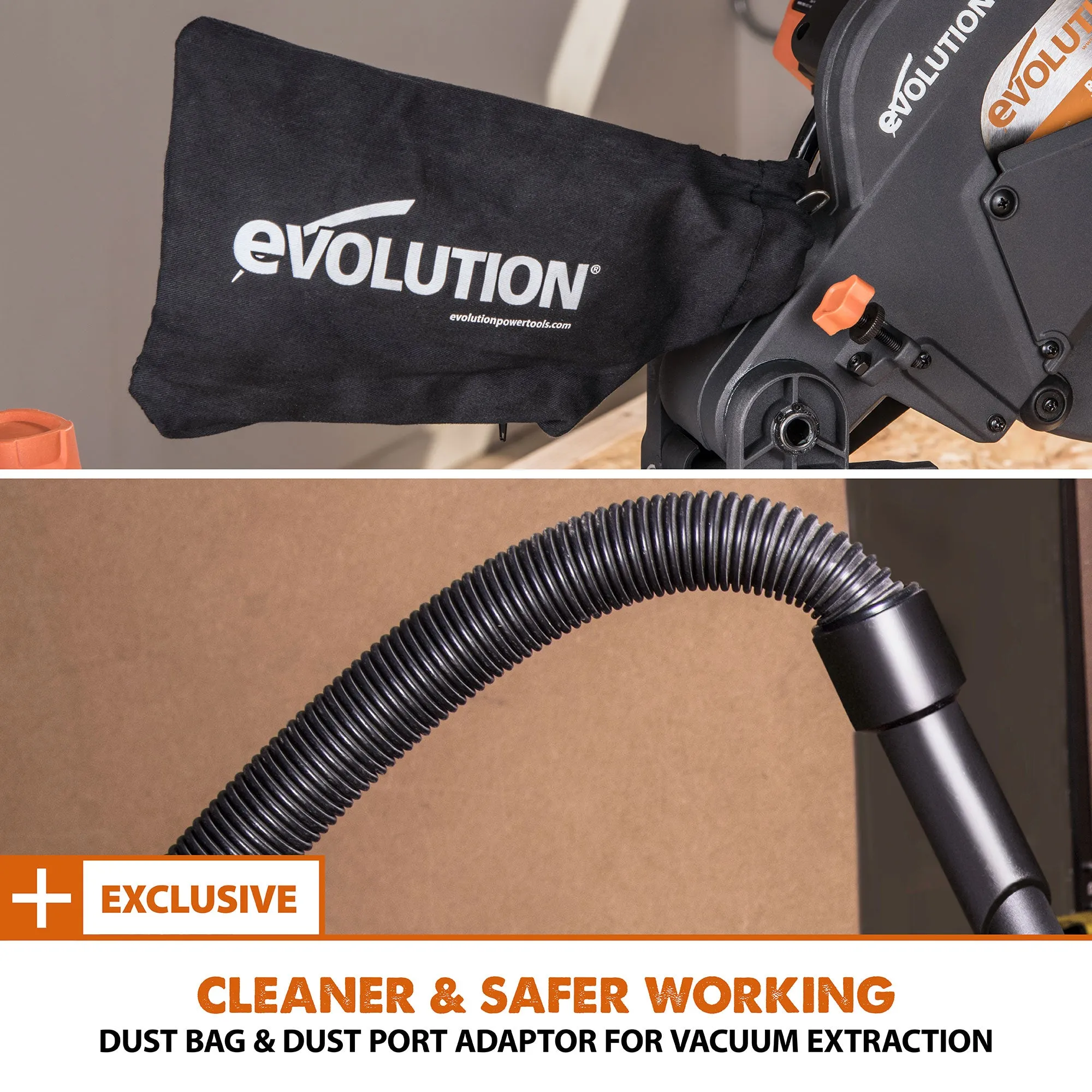

- Cleaner and safer working environment with a dust collection bag and dust port adaptor for use with vacuum extraction.

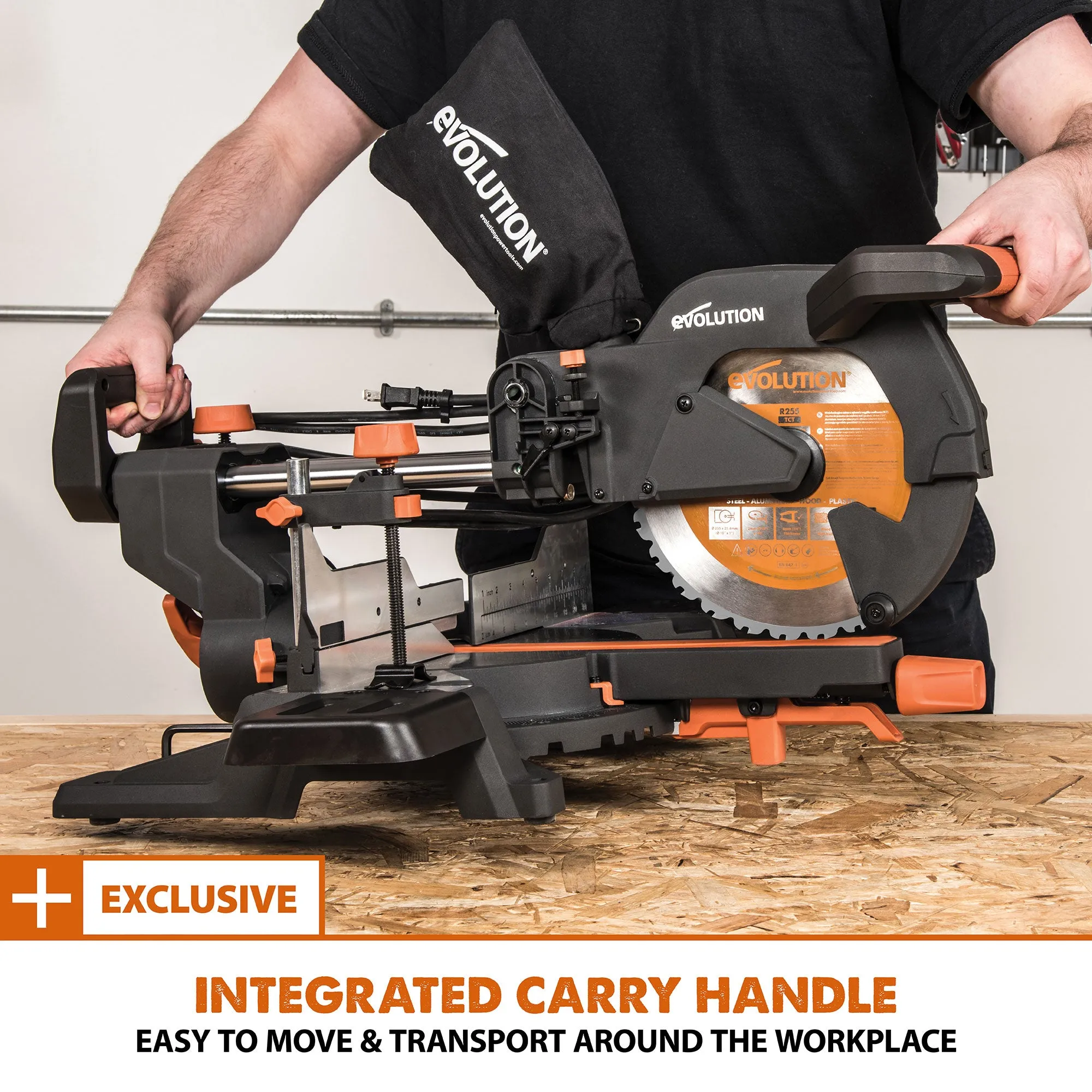

- Integrated carry handles - easy to carry and transport around the workplace.

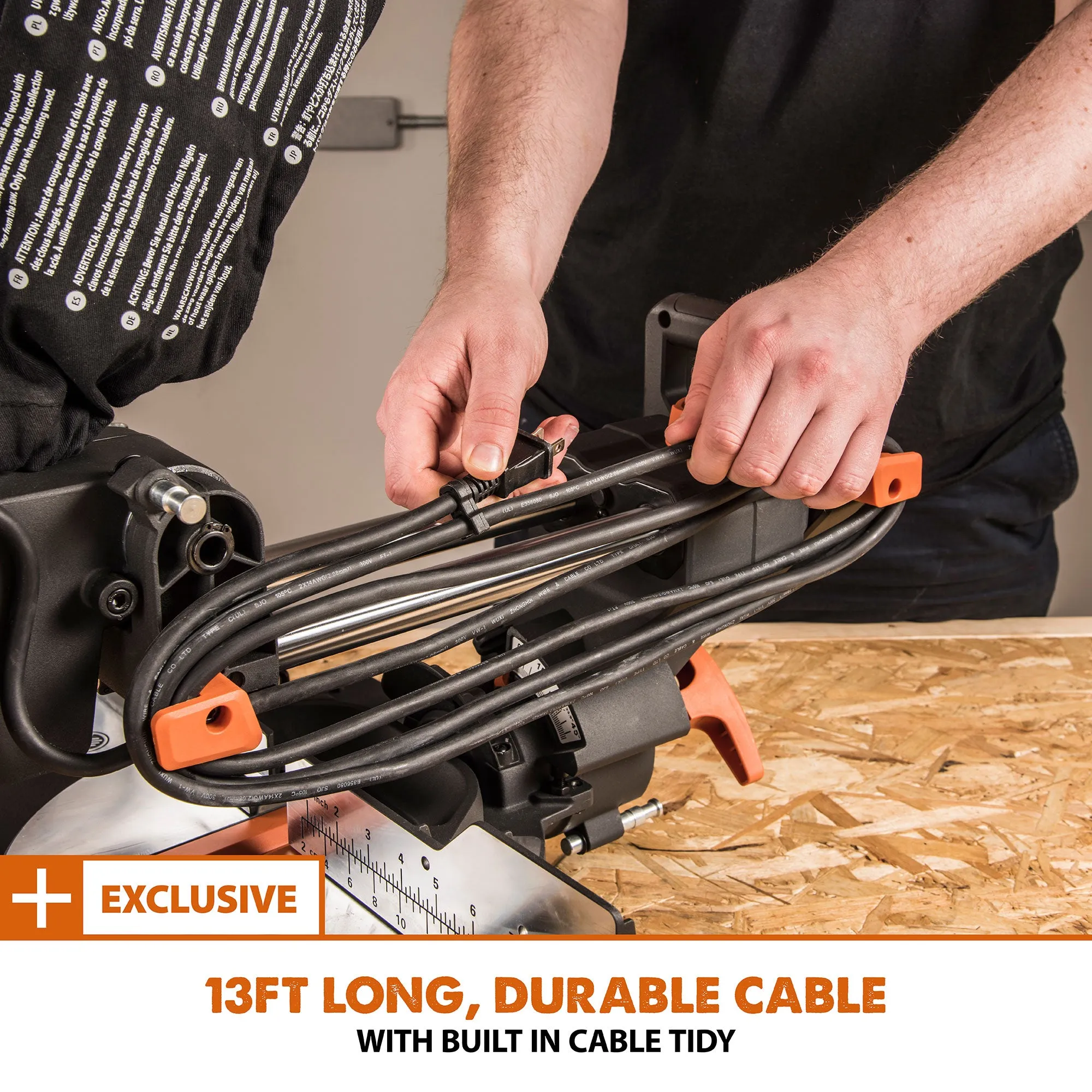

- 13ft rubber power cable gives you the power and reaches you need to get the job done.
Cutting Capacities
| Max. Cross Cut (0° x 0°): | 11-3/4 x 3-9/16 in. |
| Max. Bevel Cut (0° x 45°): | 8-1/4 x 3-9/16 in. |
| Max. Miter Cut (45° x 0°): | 11-3/4 x 2 in. |
| Max. Compound Cut (45° x 45°): | 8-1/4 x 2 in. |
| Mild Steel Plate (Max. Thickness): | 1/4 in. |
| Mild Steel Box Section (Max. Wall Thickness): | 1/8 in. |

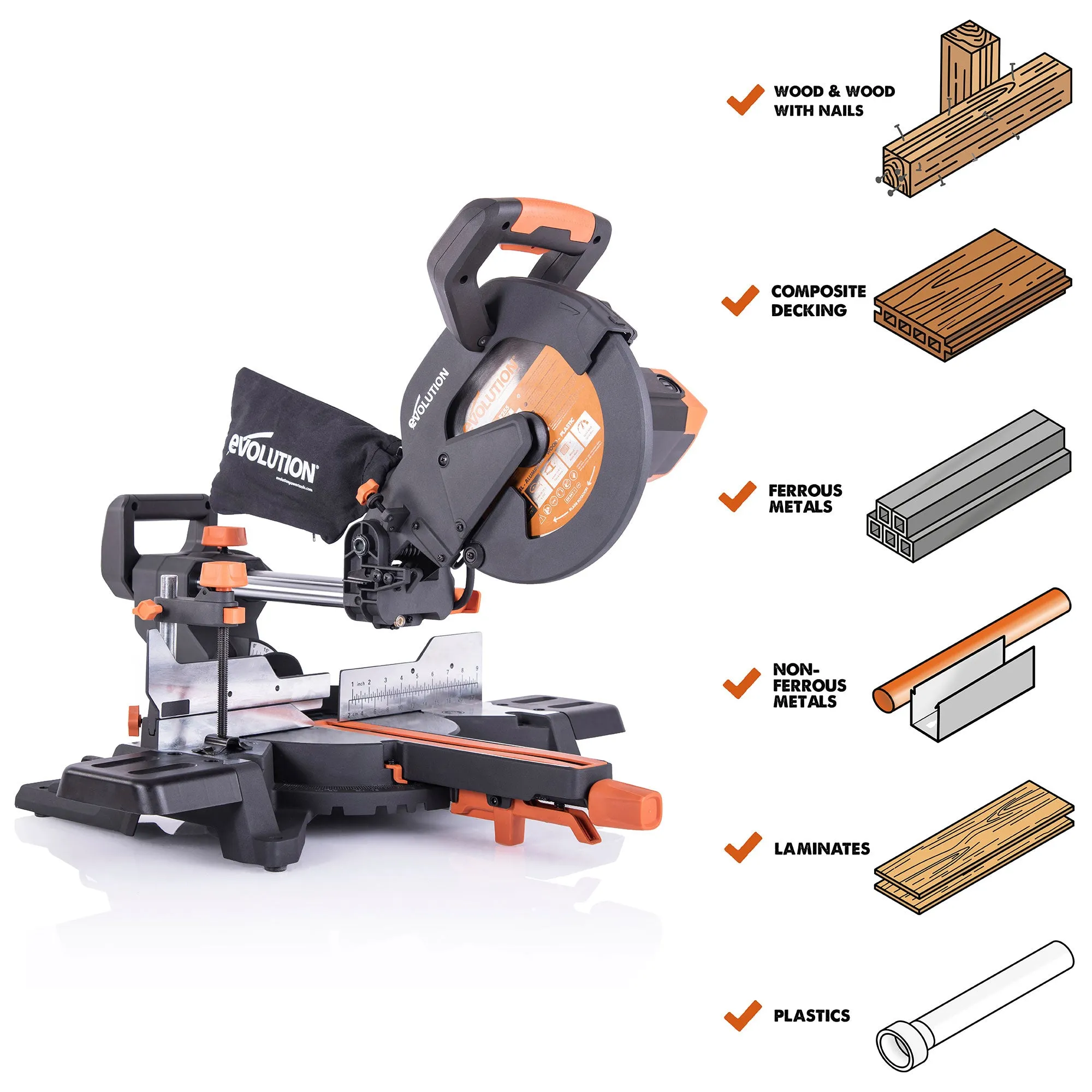

Cutting Applications
| Wood | Hardwood & tanalized decking, MDF laminates, moldings, reclaimed wood with nails, scaffold boards & poles, stud-work. |
| Ferrous Metal | Mild Steel, angled, box section, square tube, metal stud drywalling, rebar, RSJs, plate (1/4 inch), unistrut. |
| Non-Ferrous Metal | Aluminum, armored cables, cable tray, copper, floor edgings, roof flashings, stair nosings. |
| Plastic | Electrical conduit, plastic pipes, plexiglass, rubber & reinforced hoses, (WPC) Wood Plastic Composites. |
| Not Recommended | Hardened high carbon, coated and stainless steel. Note: Cutting galvanized steel may reduce blade life. |
Specifications
Machine Specs
| Motor (120V 60Hz): | 15 A |
| Speed No Load: | 2500 rpm |
| Max. Bevel (Left): | 0° - 45° |
| Max. Miter: | 50° - 50° |
| Cable Length: | 10 ft |
Blade Specs
| Blade Dia.: | 10 in. |
| No. of Teeth: | 28 |
| Bore: | 1 in. |
| Kerf: | 0-5/64 in. |
Dimensions
| Product Dimensions: | 14-3/16 x 27-3/4 x 28-47/64 in. |
| Packaging Dimensions: | 22-1⁄4 x 14-3⁄8 x 20-15⁄32 in. |
| Product Weight: | 33.7 lbs |
| Packaged Weight: | 39.2 lbs |
Noise Data
| Sound Pressure Level LPA: | 95,8 dB(A) K=3 dB(A) |
| Sound Power Level LWA: | 108,8 dB(A) K=3 dB(A) |
Items Included
| Machine Table Extensions | Double Ended Hex Key (M6 & M5) |
| Rotary Table And Neck | Cutting Head |
| Carriage Slides | Mitre Locking Knob |
| Mains Cable Guide/Clamp | Self Tapping Cap Screw |
| Socket Headed Screws | Cable Clamp Component |
| Laser Lens Cap | Double Ended Cable Clip |
| Carry Handle | Tall Fence |
| Dust Port Adaptor | Dust Collection Bag |
| 3pc Hold Down Clamp | 10 inch 28 Tooth Blade |
