Product Details



Utilizing Evolution's patented multi-material cutting technology. New & improved from its 'RAGE3' predecessor, the R255SMS sliding miter saw is optimized to cut mild steel, non-ferrous metals, wood, even wood with embedded nails and plastic with one blade. No blade changes = Faster work! Perfect for any trade & DIY enthusiast.



  • Multi-Material cutting technology. One saw, one blade, cuts all.*
  • Accurate cutting with 11-3/4 inch sliding functionality, adjustable depth of cut, and laser precision guidance.
  • Smooth, square, reliable cutting every time in a variety of materials.
  • Powerful 2000W hi-torque optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.
  • Cuts to within /- 0.5˚ with 0° - 45° bevel tilt and 50˚ miters both left and right to perform precise bevel, mitre and compound cutting.
  • An impressive 11-3/4 x 3-9/16 inch max. crosscut capacity enables you to cut 4 x 4-inch posts.
  • Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.
  • Compatible with Evolution's Mitre Saw Stand allows you full control to cut accurate repeated lengths on wide and long materials with ease.
  • The Evolution 10 In. Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
  • Japanese Tungsten-Carbide-Tipped (TCT) 10 In. Blade included.

Specifications
Motor (110V 50Hz):1600W
Motor (240V 50Hz):2000W
Speed No Load:2500 rpm
Max. Mitre:50° - 50°
Max. Bevel (Left):45°
Blade Guard:Cast Aluminium
Cable Length:6.5ft
Dust Port Diameter:1.4 in (36mm)
Blade Dia.:10 in. (255mm)
No. of Teeth:24
Bore:1 in.
Kerf: 0-5/64 in. (2mm)
Max. Cross Cut (0° x 0°):11-3/4 x 3-9/16 in.
Max. Bevel Cut (0° x 45°):8-1/4 x 3-9/16 in.
Max. Mitre Cut (45° x 0°):11-3/4 x 2 in.
Max. Compound Cut (45° x 45°):8-1/4 x 2 in.
Mild Steel Plate
(Max. Thickness):
Delete
Mild Steel Box Section
(Max. Wall Thickness):
DELETE
Product Dimensions: 14-3/16 x 27-3/4 x 28-47/64 in.
Packaging Dimensions: 22-1⁄4 x 14-3⁄8 x 20-15⁄32 in.
Product Weight:33.7 lbs
Packaged Weight:39.2 lbs
Sound Pressure Level LPA:95,8dB(A)
K:3dB(A)
Sound Power Level LWA:108,8dB(A)
K=3 dB(A)
Items Included
24T Multi-Material TCT Blade
Hex Key (Blade Change)
Machine Table Extensions
Rotary Table And Neck
Cutting Head
Carriage Slides
Mitre Locking Knob
Mains Cable Guide/Clamp
Self Tapping Cap Screw
Socket Headed Screws
Cable Clamp Component
Laser Lens Cap
Double Ended Cable Clip
2pc Hold Down Clamp

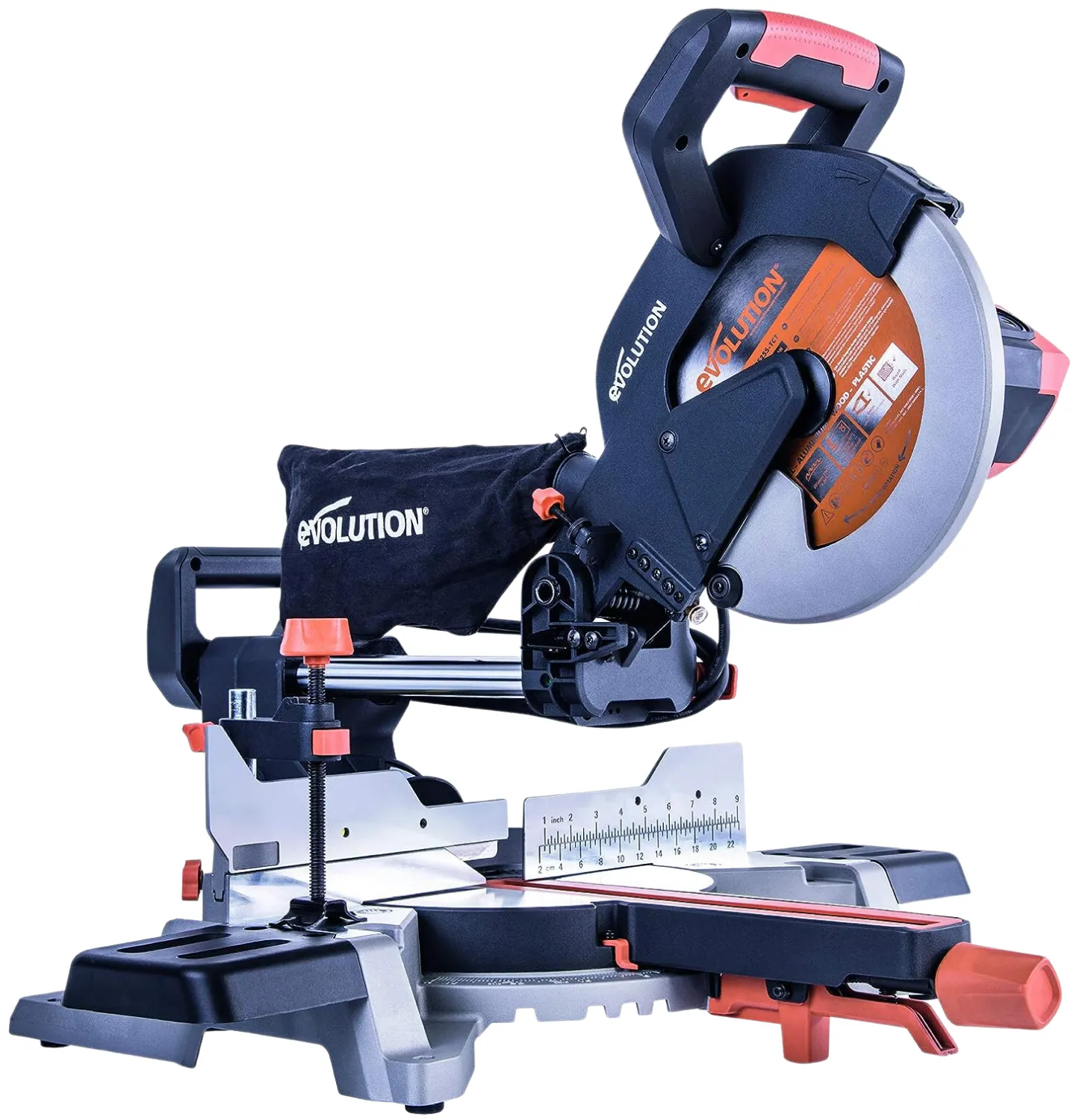

Evolution R255SMS: Single Bevel Sliding Miter Saw With 10 in. Multi-Material Cutting Blade
  • DefaultTitle

$ 77.36

$ 59.51
