Product Details
＋

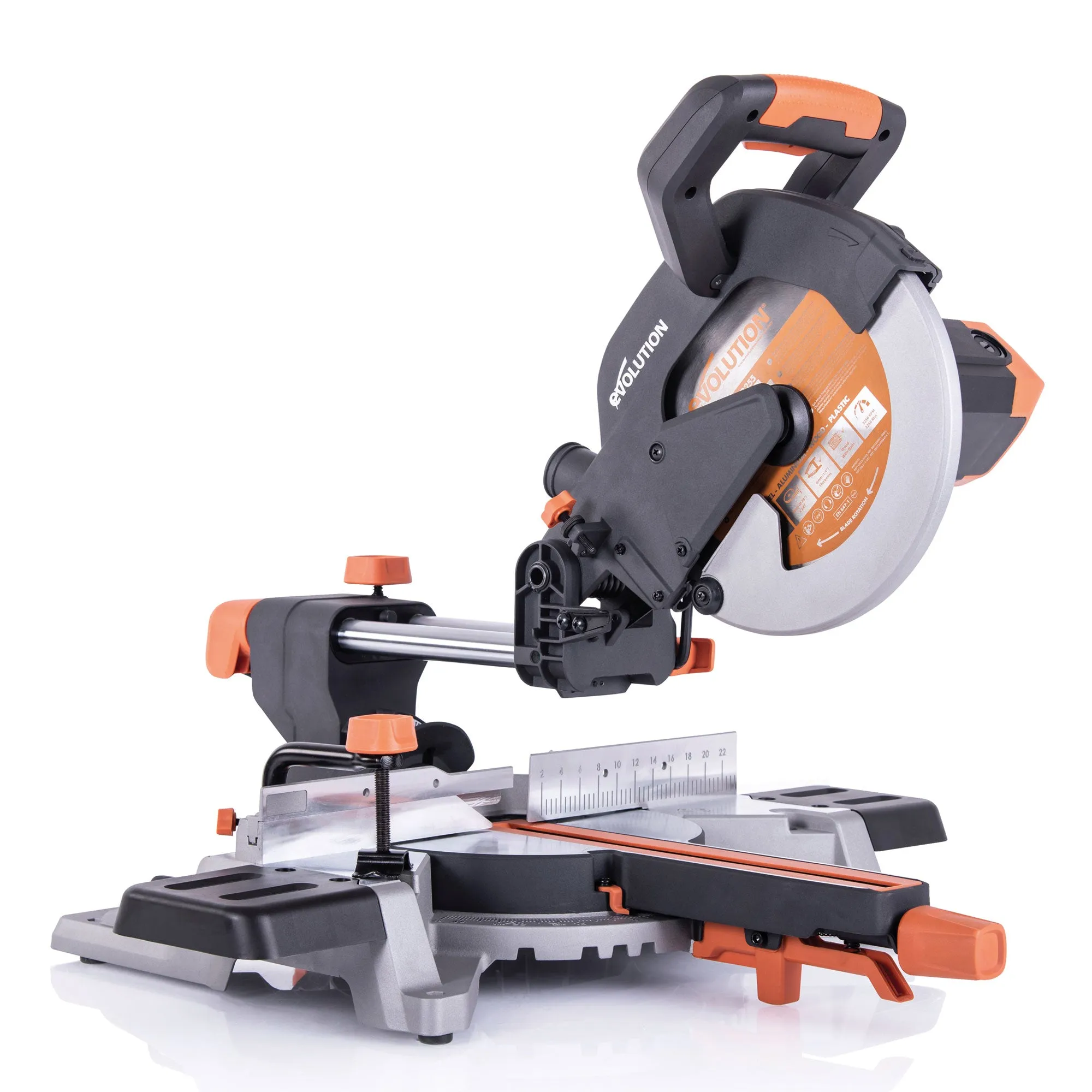

Evolution's most popular 10-inch sliding miter saw. Its ability to cut different materials with the same blade sets it apart from the standard wood cutting saws. Achieves high-quality cuts in soft and hardwood as well an impressive square, clean-cut in mild steel, aluminum, copper, plastic and more. A fantastic addition to any job site or home workshop.

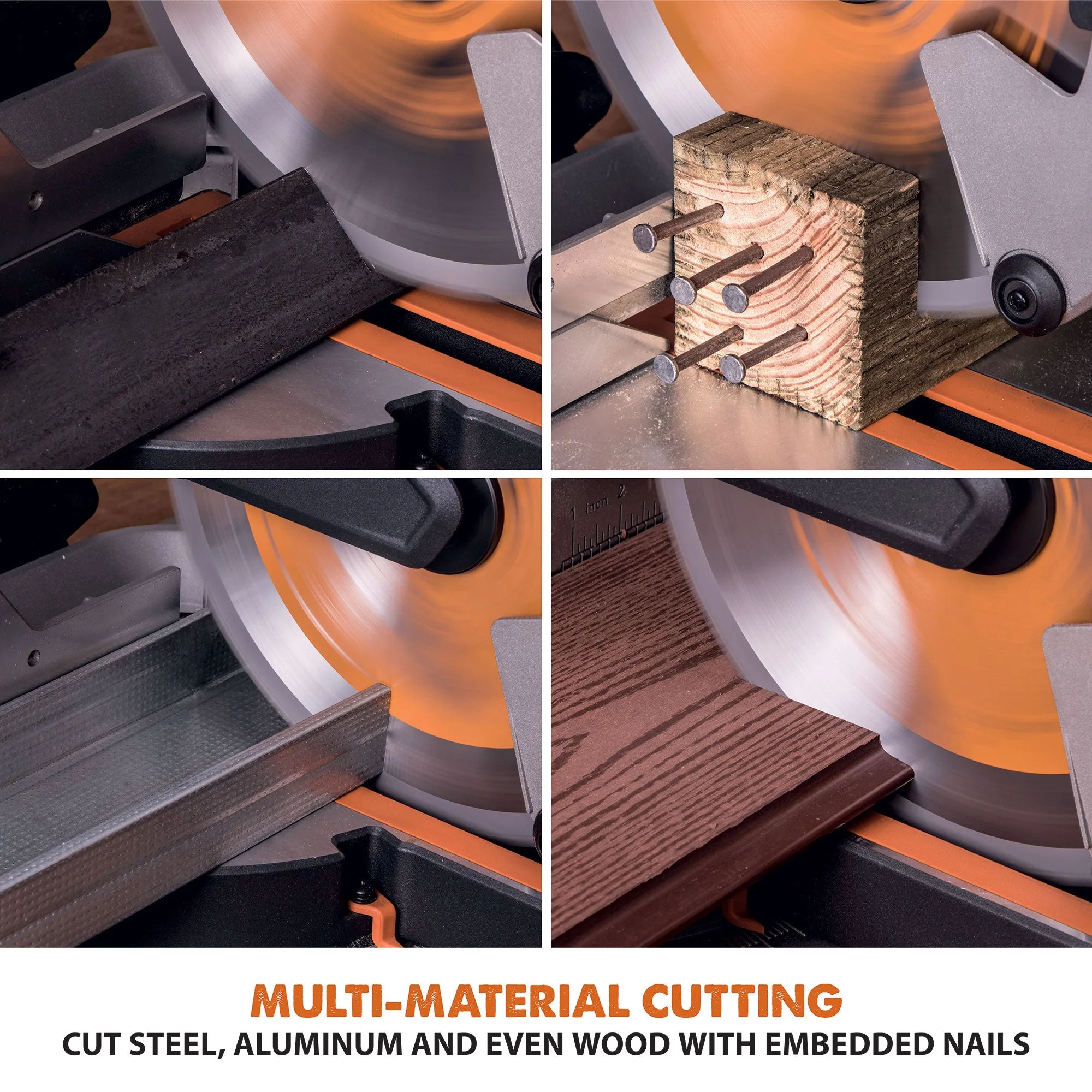

- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting with 11-3/4 inch sliding functionality and adjustable depth of cut.

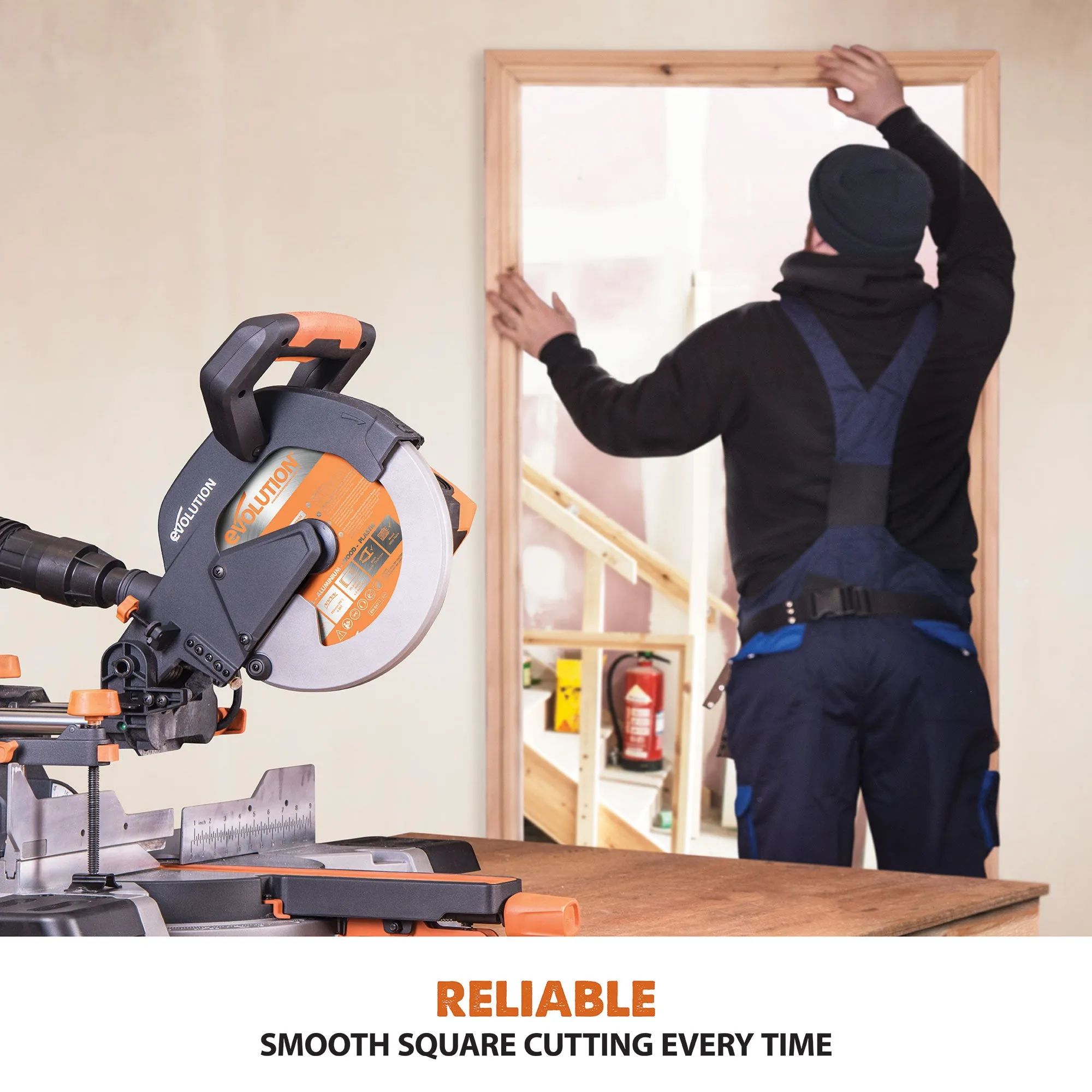

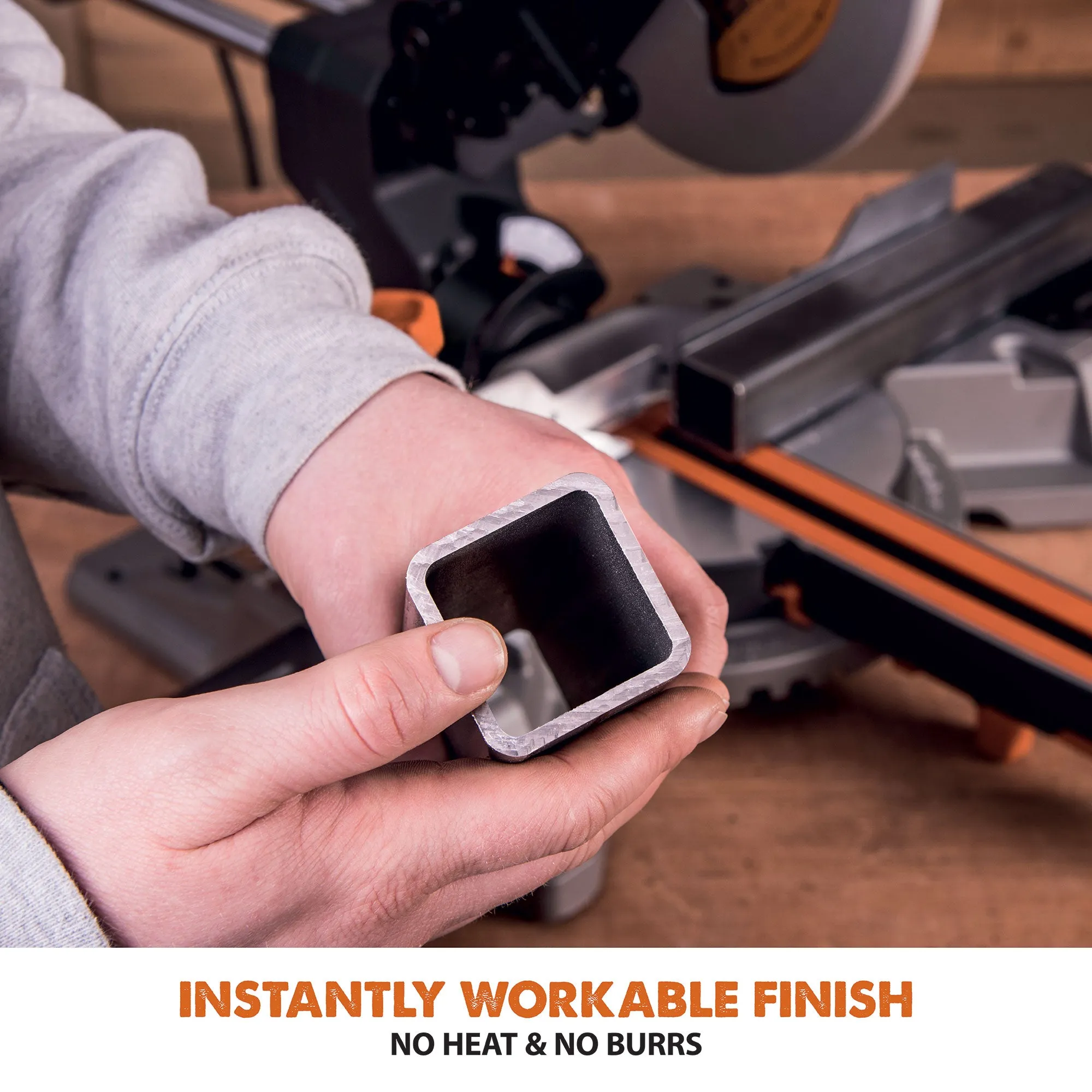

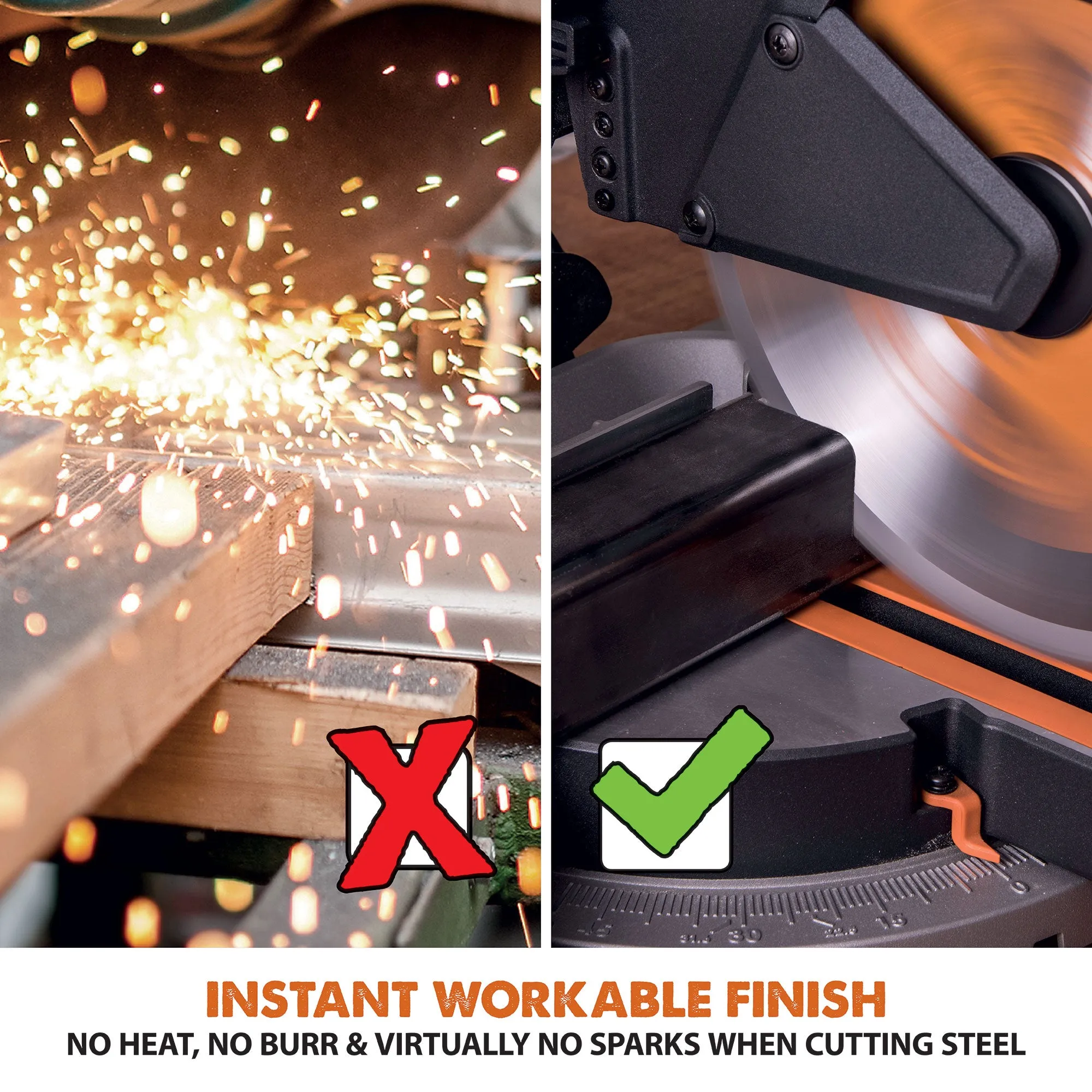

- Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs, and virtually no sparks.

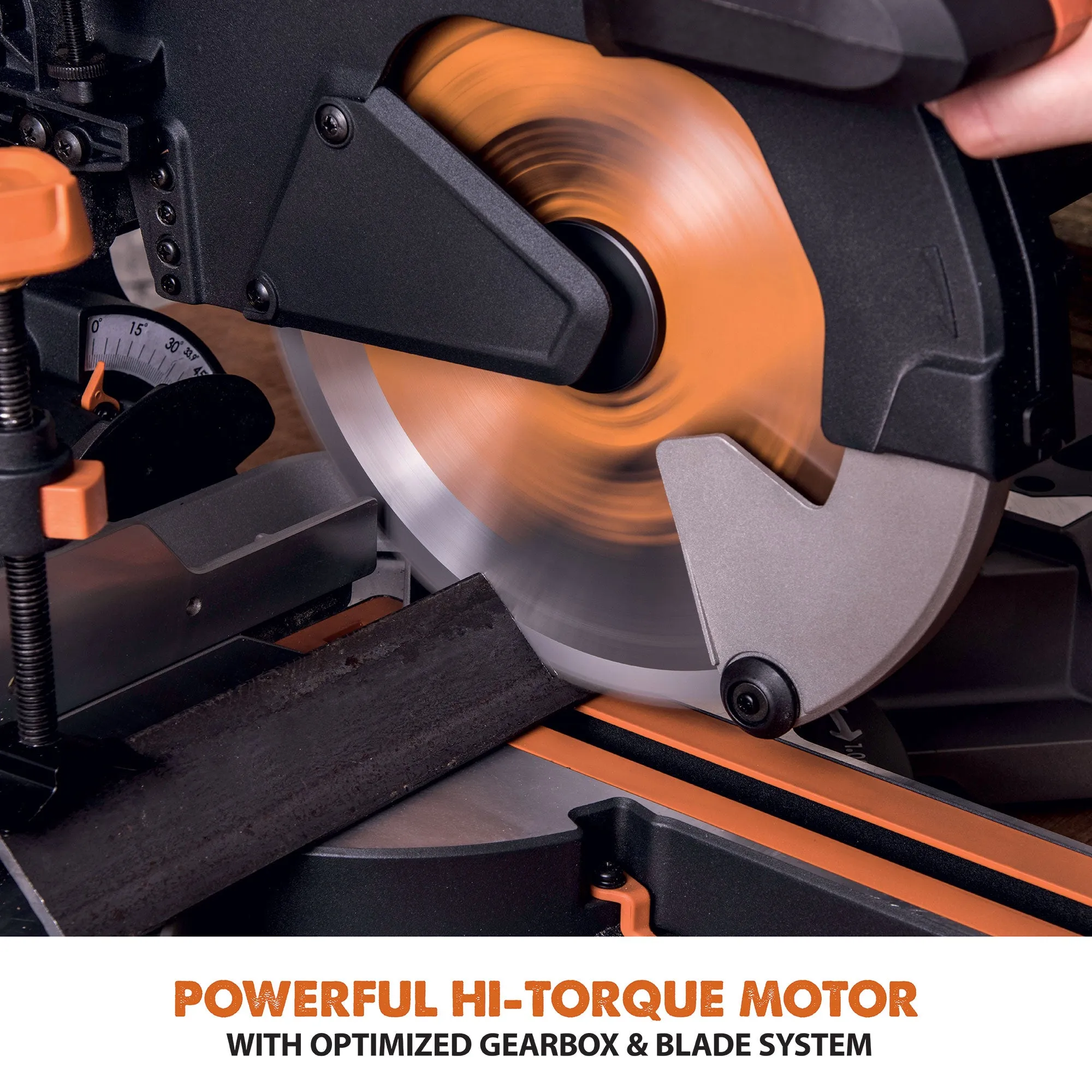

- Powerful 15A hi-torque, optimized gearbox, and blade system increase motor and blade life to cut through a variety of materials with ease.
- Perform accurate Crosscuts, miter cuts, bevel cuts and Compound cuts with adjustable precision settings.

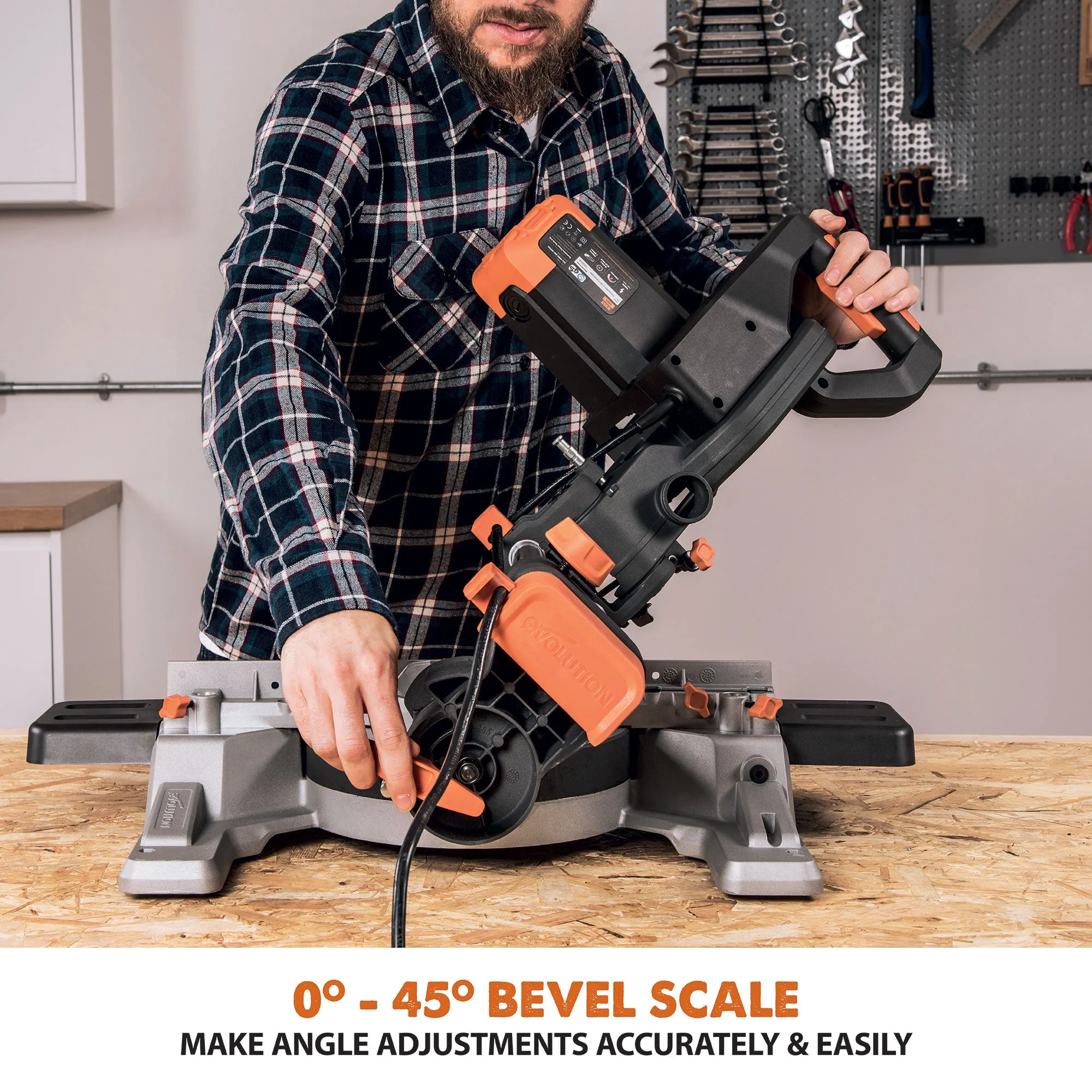

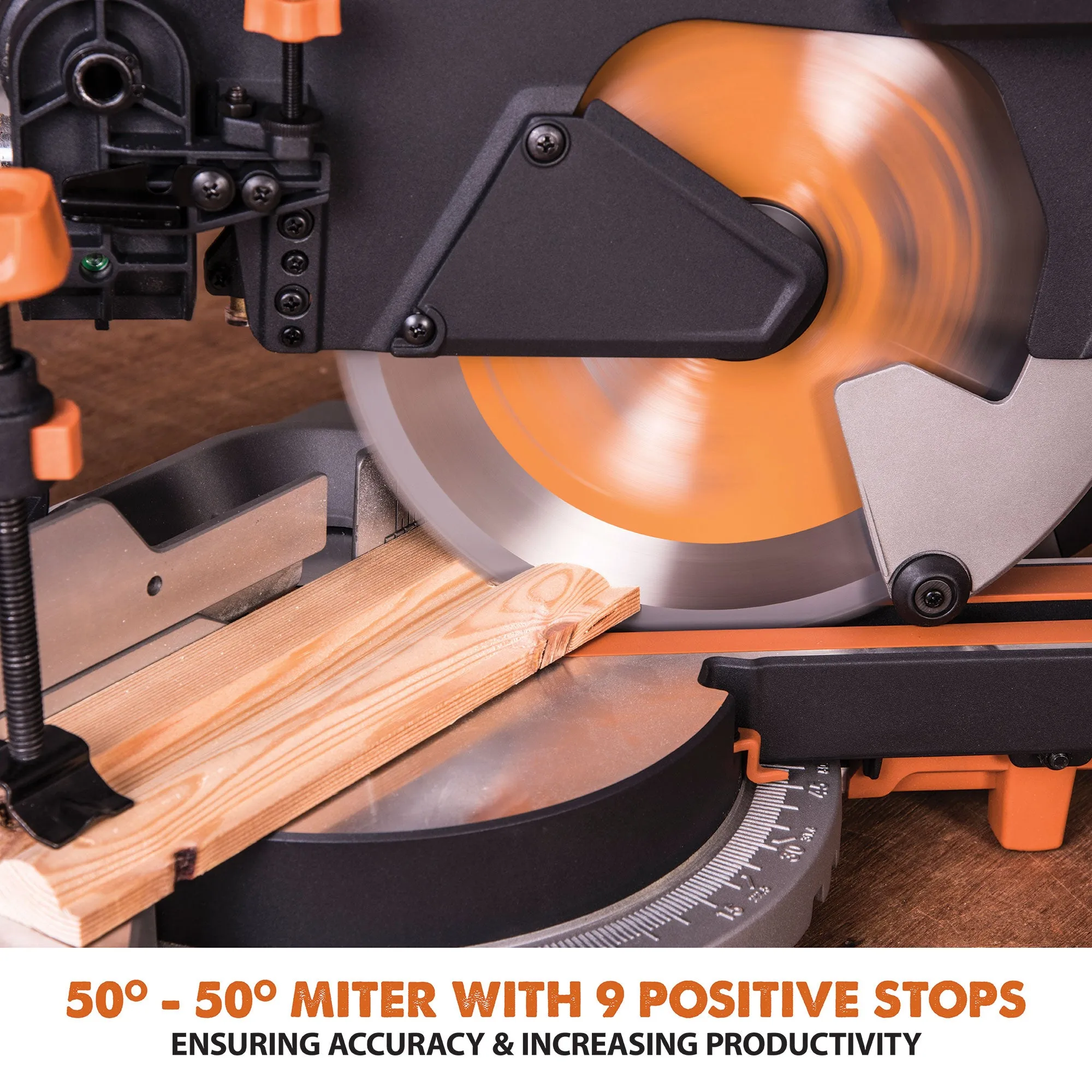

- Cut to within /- 0.5˚ with 0° - 45° bevel tilt and 50˚ - 50˚ miter angles with quick click miter stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.

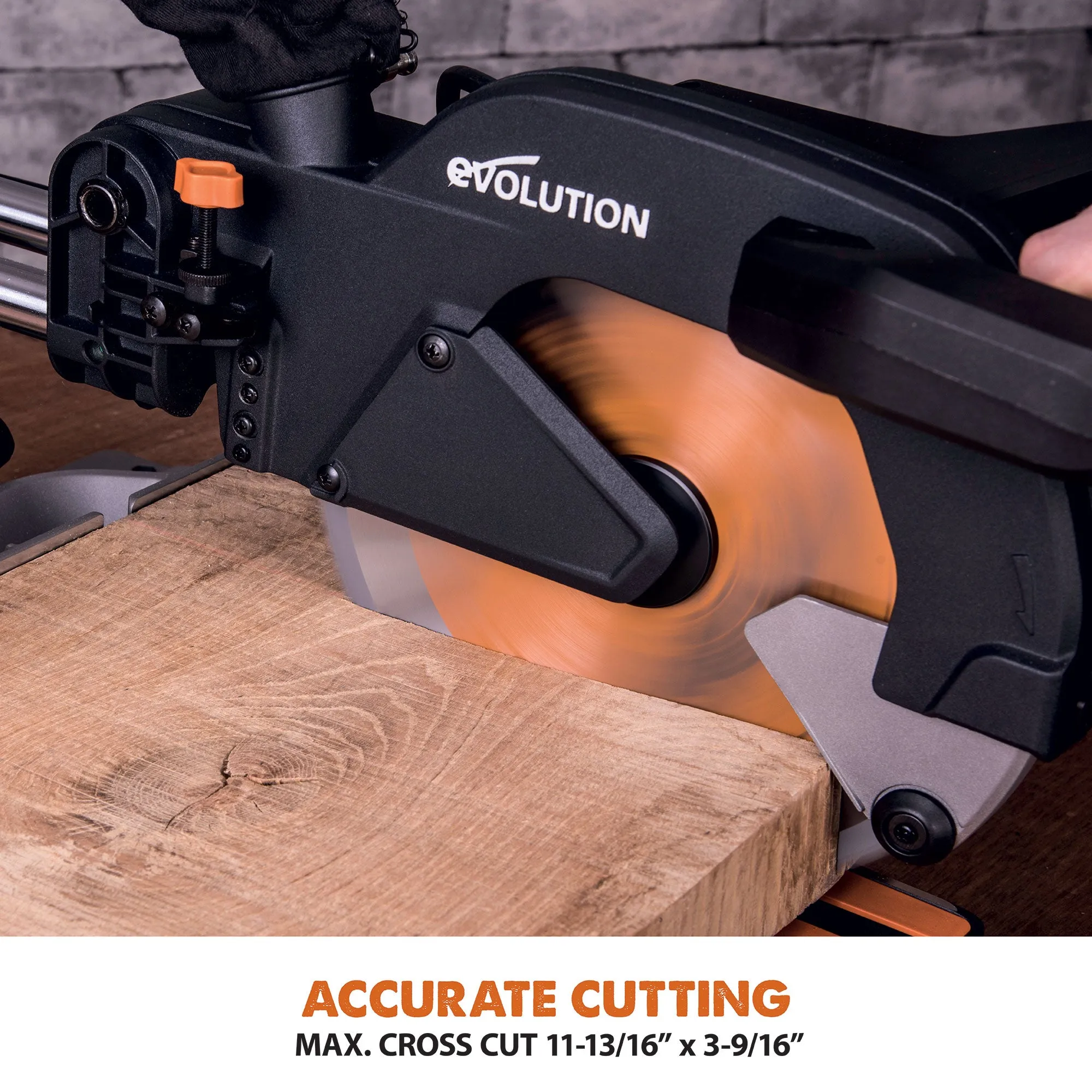

- An impressive 11-3/4 x 3-1/8 inch crosscut capacity and 11-3/4 x 1-3/4 inch bevel cut capacity.

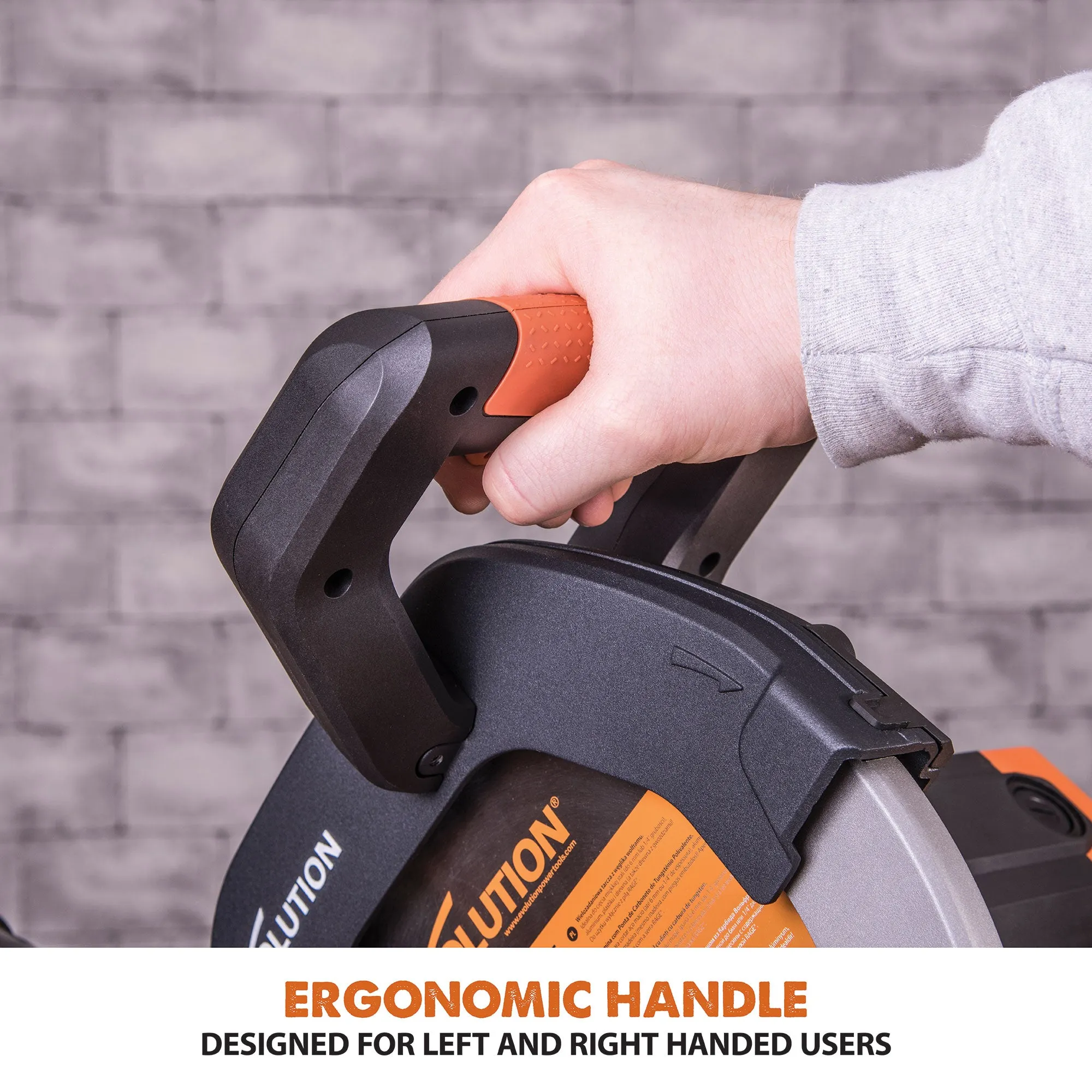

- Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combat repetitive strain.

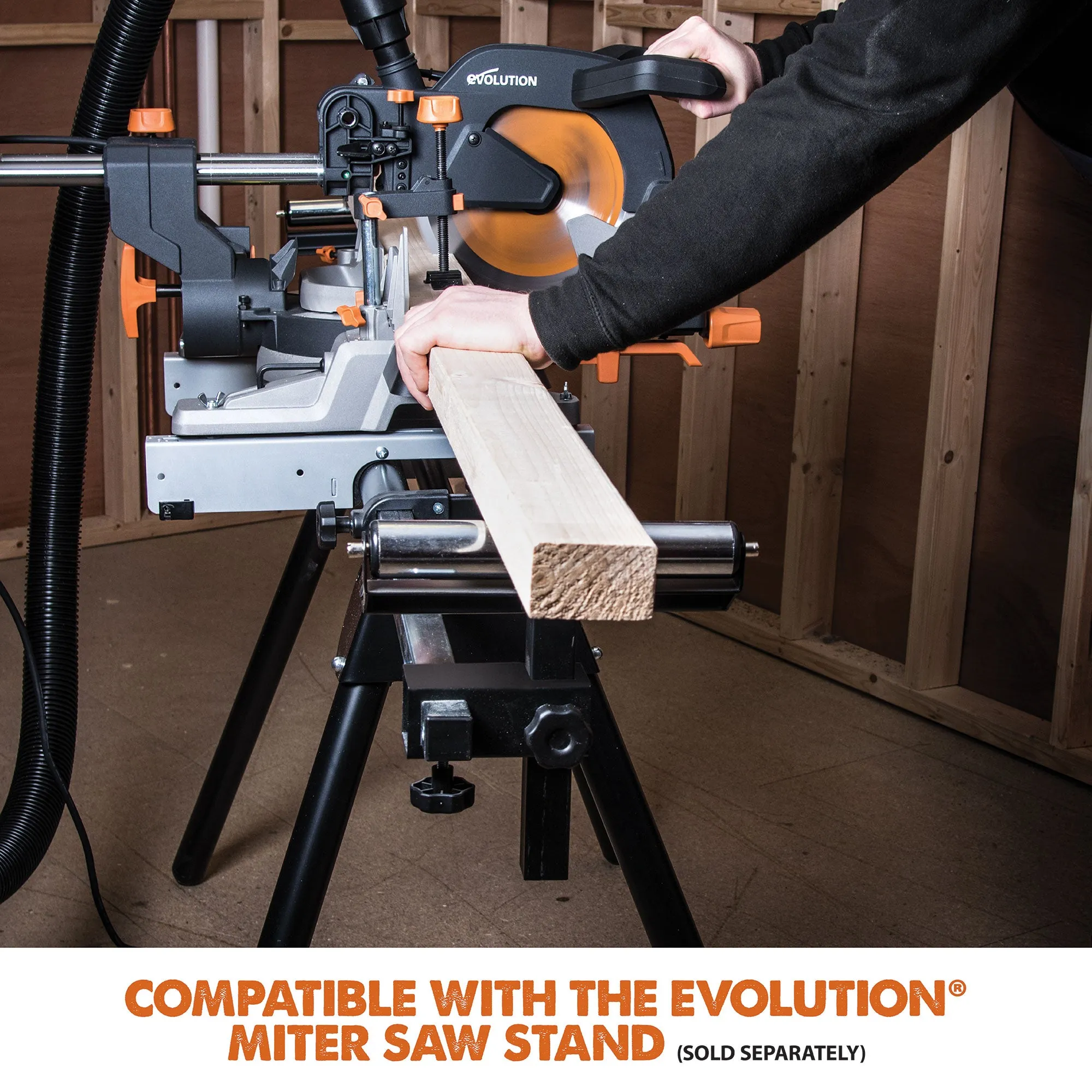

- Compatible with Evolution's Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease.

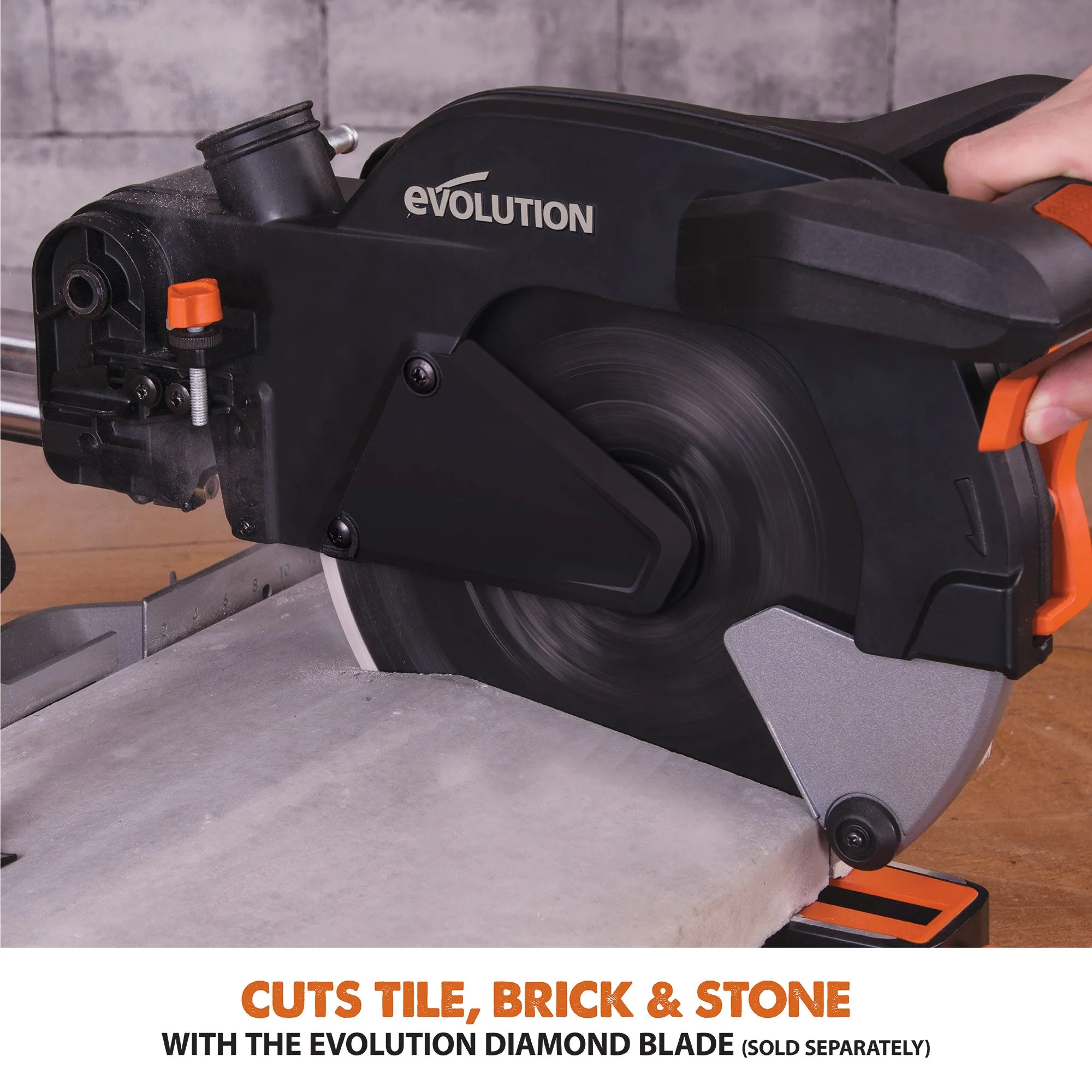

- The Evolution 10 inch Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).

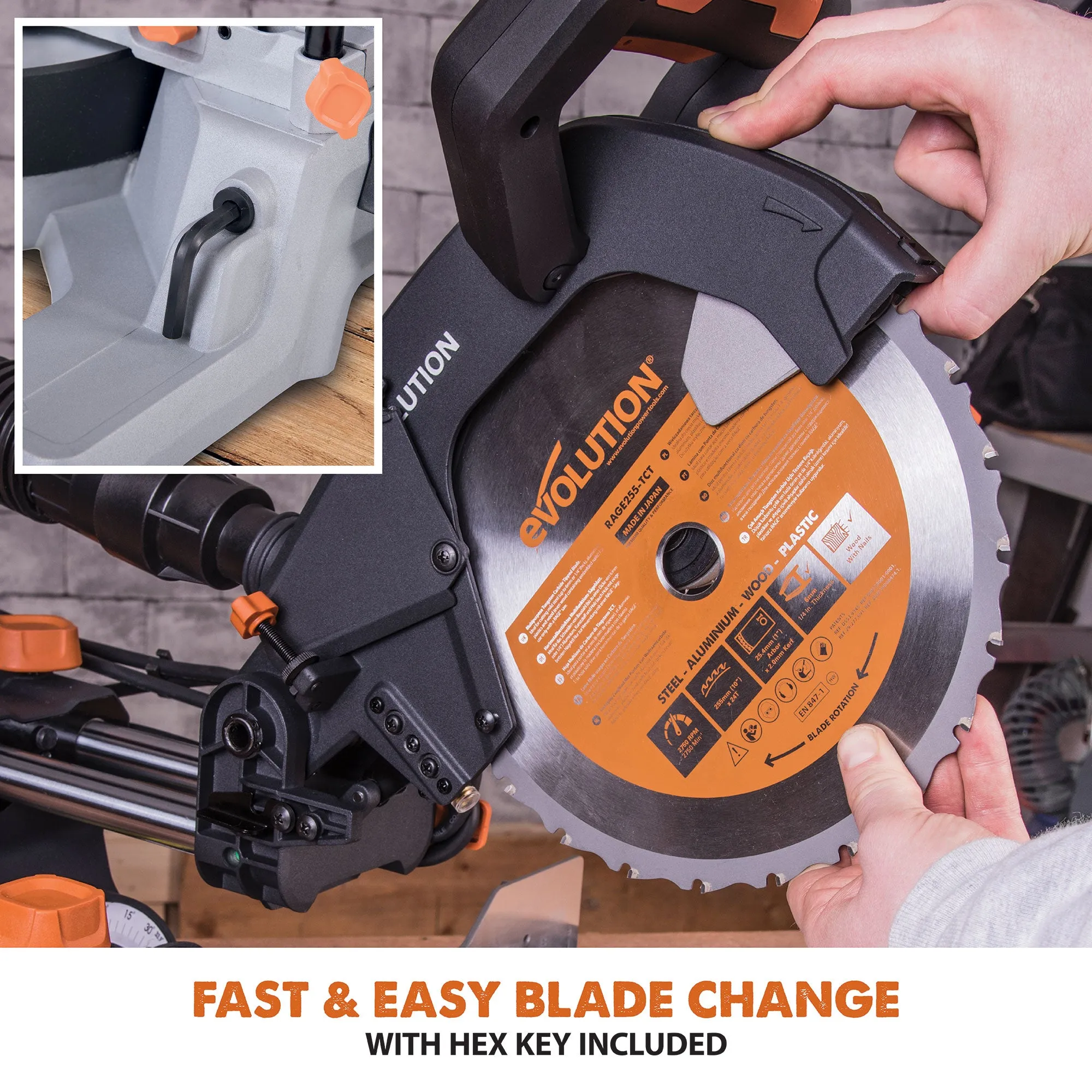

- Japanese Tungsten-Carbide-Tipped (TCT) 10-inch blade included.
- 3 Year limited warranty.
Machine Spec
| Motor (120V 60Hz): | 15 A |
| Speed No Load: | 2500 rpm |
| Max. Bevel (Left): | 0° - 45° |
| Max. Miter: | 50° - 50° |
| Cable Length: | 6 ft |
Blade Spec
| Blade Dia.: | 10 in. |
| No. of Teeth: | 24 |
| Bore: | 1 in. |
| Kerf: | 0-5/64 in. |
Cutting Capacities
| Max. Cross Cut (0° x 0°): | 11-3/4 x 3-5/32 in. |
| Max. Bevel Cut (0° x 45°): | 8-1/4 x 3-1/8 in. |
| Max. Miter Cut (45° x 0°): | 11-3/4 x 1-3/4 in. |
| Max. Compound Cut (45° x 45°): | 8-1/4 x 1-3/4 in. |
| Mild Steel Plate (Max. Thickness): | 1/4 in. |
| Mild Steel Box Section (Max. Wall Thickness): | 1/8 in. |
Items Included
| Machine Table Extensions | Double Ended Hex Key (M6 & M5) |
| Rotary Table And Neck | Cutting Head |
| Carriage Slides | Mitre Locking Knob |
| Mains Cable Guide/Clamp | Self Tapping Cap Screw |
| Socket Headed Screws | Cable Clamp Component |
| Double Ended Cable Clip | Slide Rail Protector |
| 2pc Hold Down Clamp | 10 inch 24 Tooth Blade |
Dimensions & Weights
| Product Dimensions: | 14- 3/16 x 27-3/4 x 28-47/64 in. |
| Packaging Dimensions: | 22-1⁄4 x 14-3⁄8 x 20-15⁄32 in. |
| Product Weight: | 33.7 lbs |
| Packaged Weight: | 39.2 lbs |
Noise Data
| Sound Pressure Level LPA: | 95,8 dB(A) K=3 dB(A) |
| Sound Power Level LWA: | 108,8 dB(A) K=3 dB(A) |

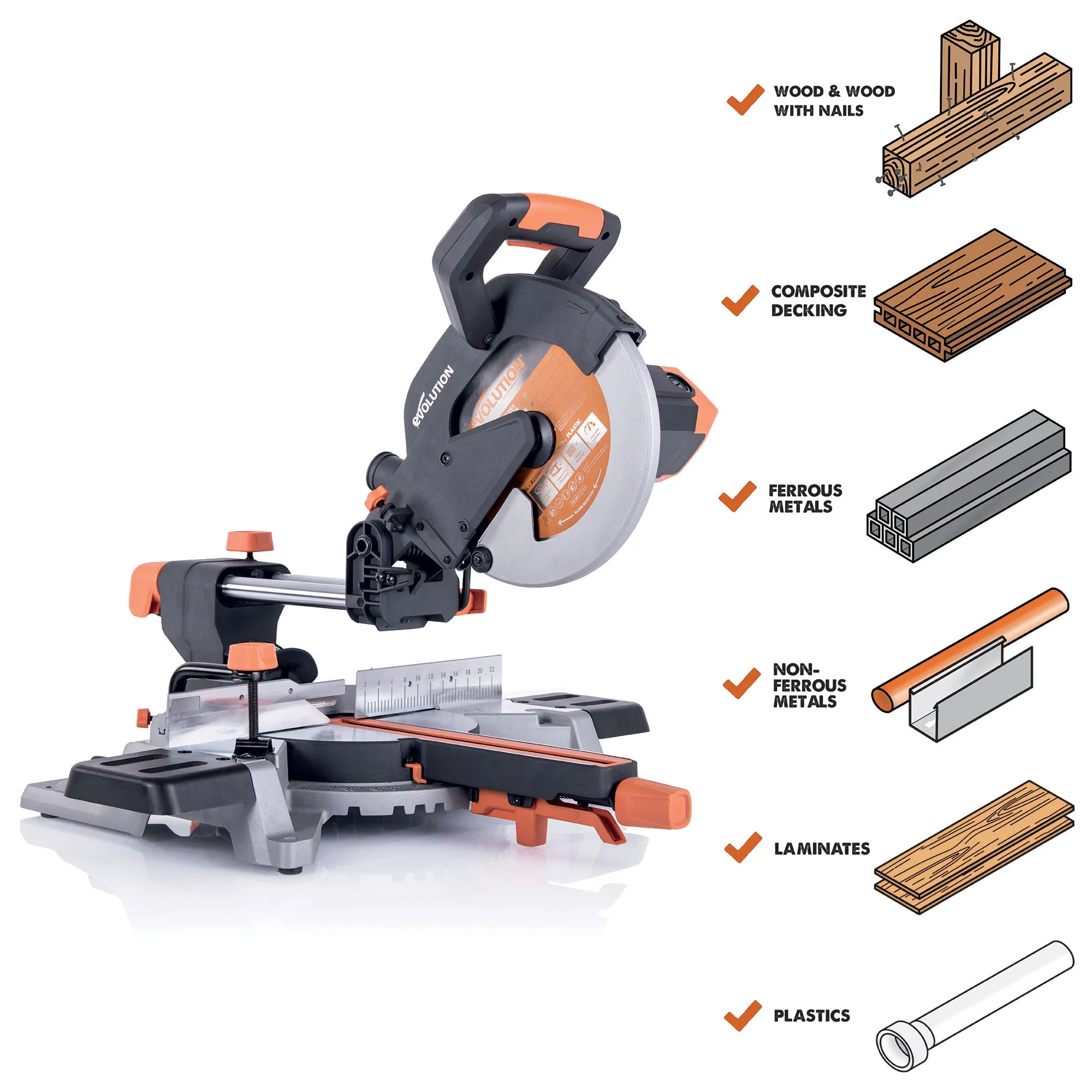

Cutting Applications
| Wood | Hardwood & tanalized decking, MDF laminates, moldings, reclaimed wood with nails, scaffold boards & poles, stud-work. |
| Ferrous Metal | Mild Steel, angled, box section, square tube, metal stud drywalling, rebar, RSJs, plate (1/4 inch), unistrut. |
| Non-Ferrous Metal | Aluminum, armored cables, cable tray, copper, floor edgings, roof flashings, stair nosings. |
| Plastic | Electrical conduit, plastic pipes, plexiglass, rubber & reinforced hoses, (WPC) Wood Plastic Composites. |
| Not Recommended | Hardened high carbon, coated and stainless steel. Note: Cutting galvanized steel may reduce blade life. |
