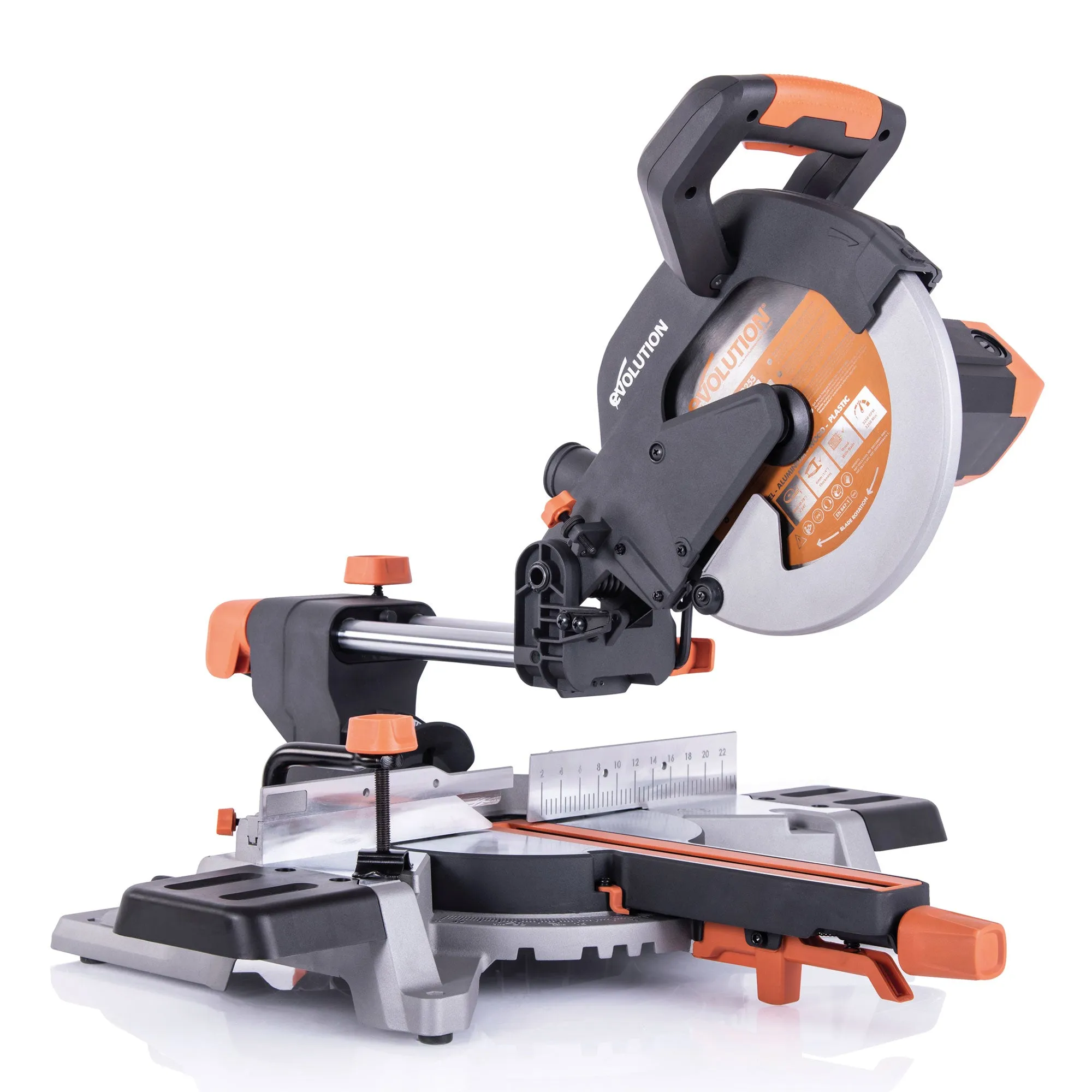

Name: Evolution R255SMSL: Sliding Miter Saw With 10 in. Multi-Material Cutting Blade (Refurbished Like New)
SKU: 456428

Product Details ＋

Evolution's most popular 10-inch sliding miter saw. Its ability to cut different materials with the same blade sets it apart from the standard wood cutting saws. Achieves high-quality cuts in soft and hardwood as well an impressive square, clean-cut in mild steel, aluminum, copper, plastic and more. A fantastic addition to any job site or home workshop.

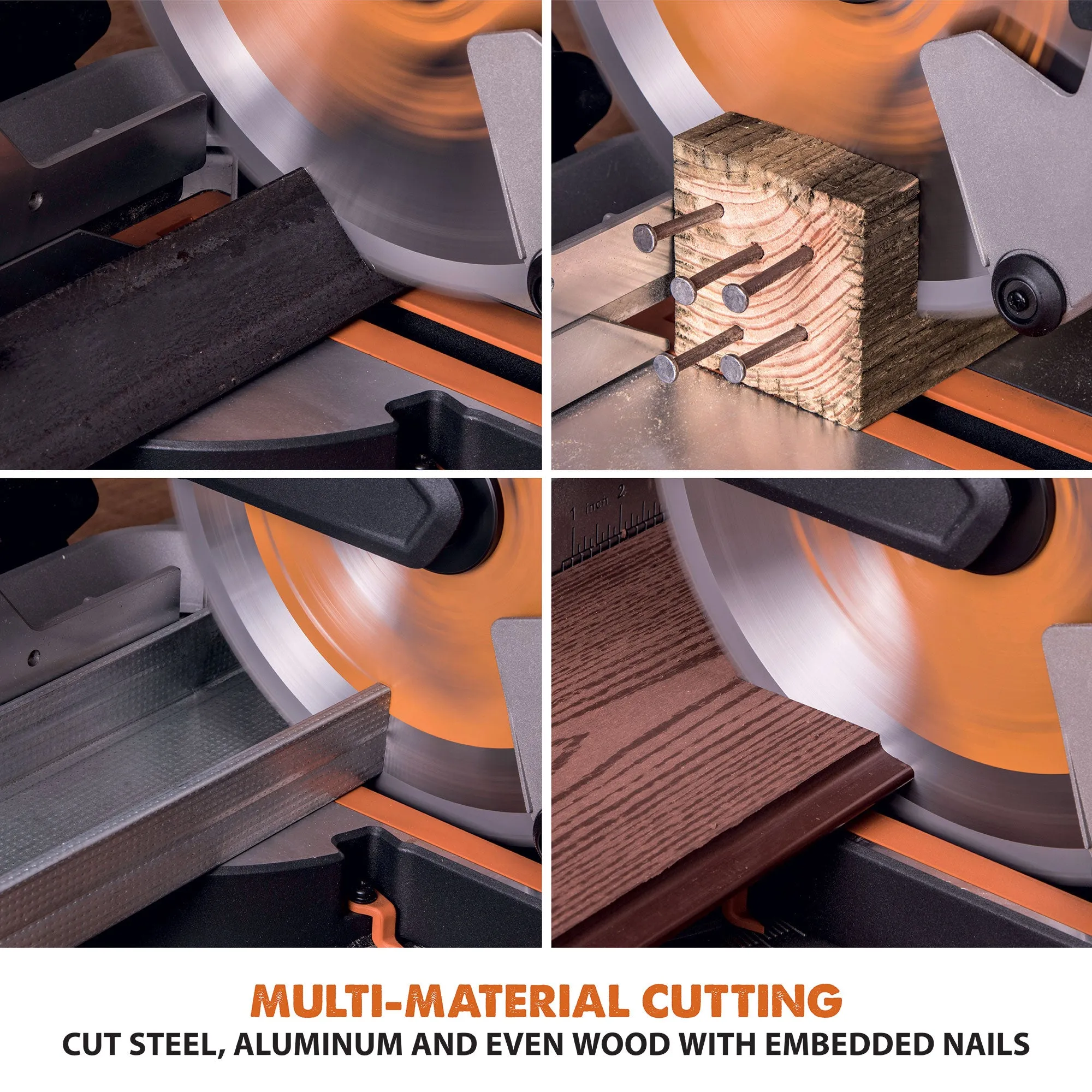

Multi-Material cutting technology. One saw, one blade, cuts all.*
Accurate cutting with 11-3/4 inch sliding functionality and adjustable depth of cut.

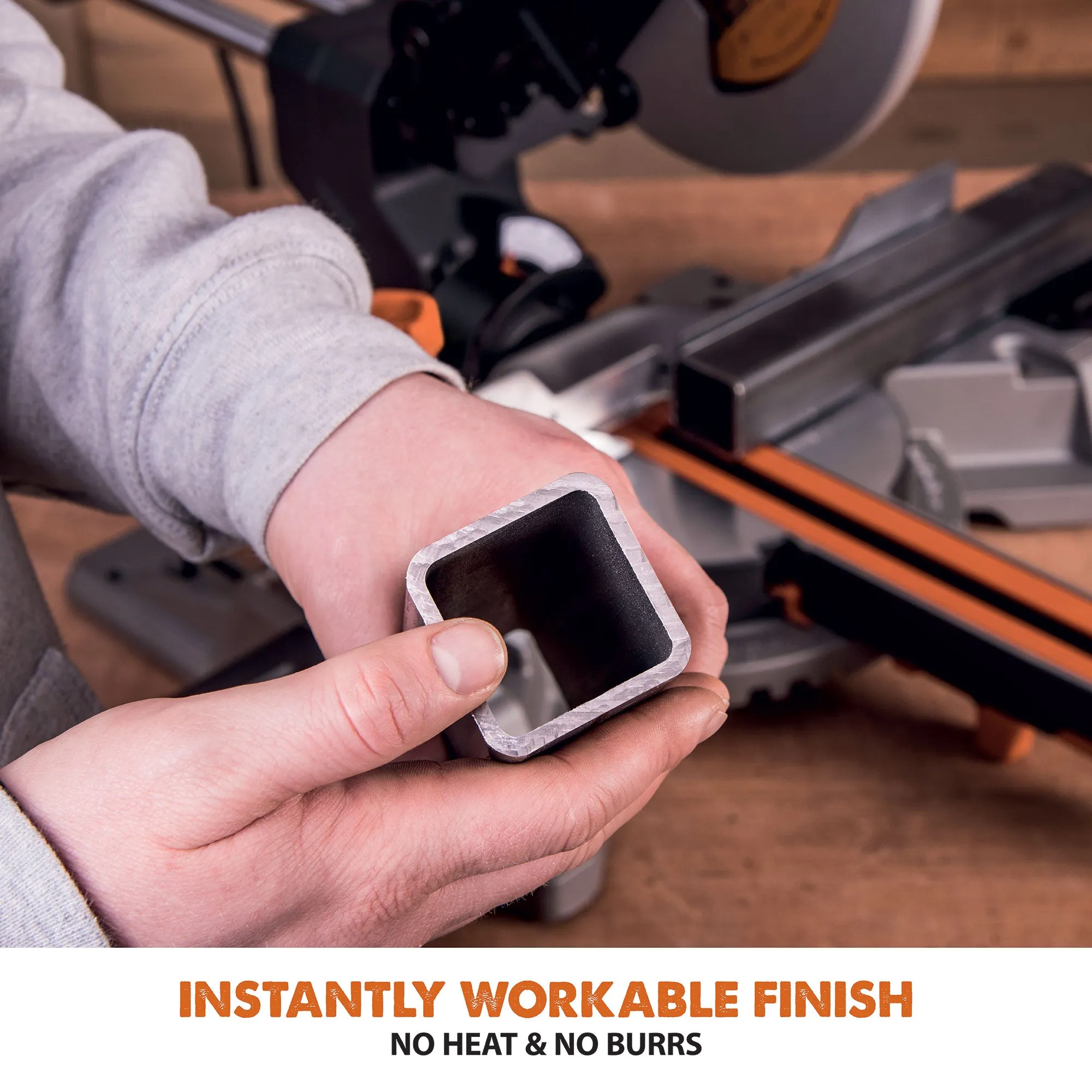

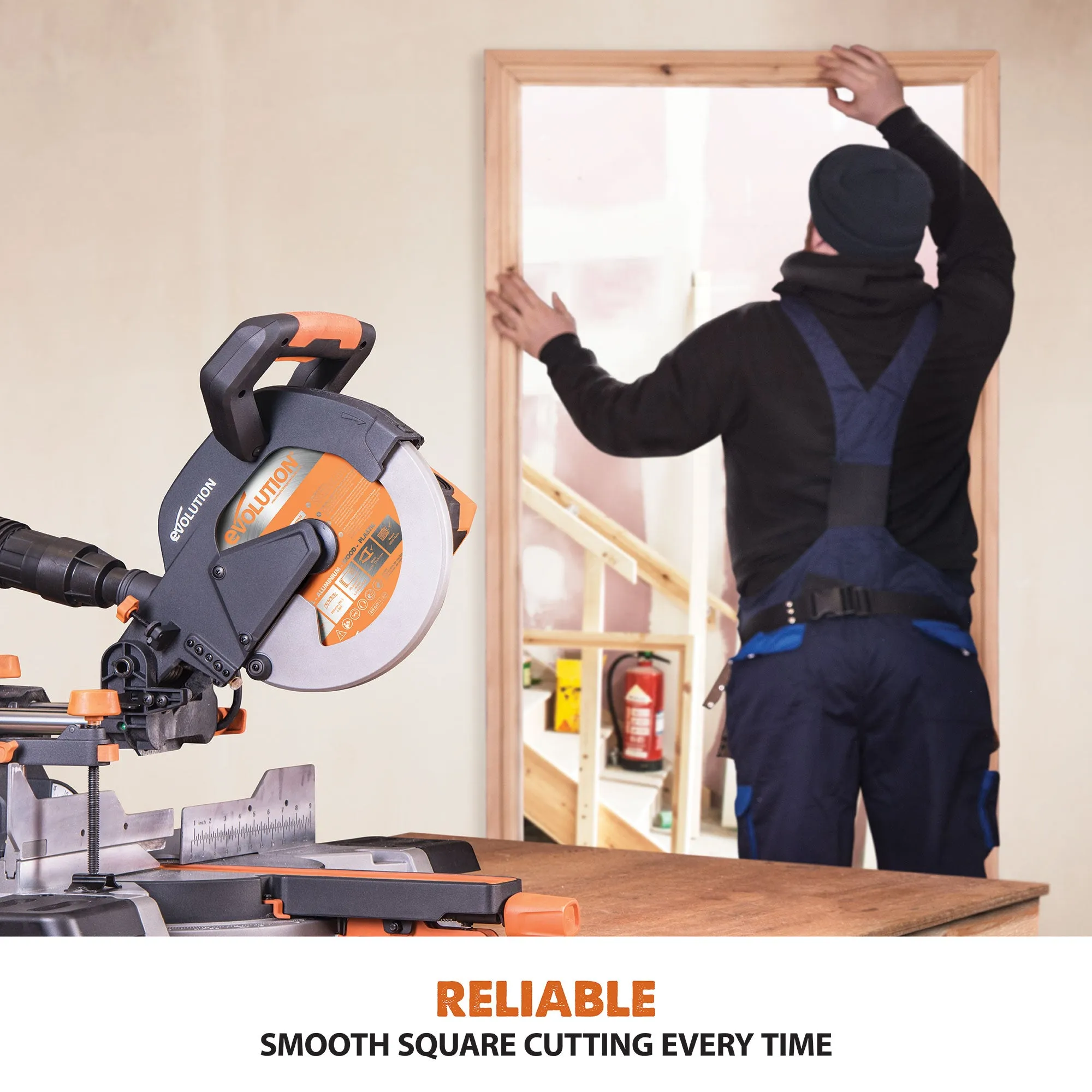

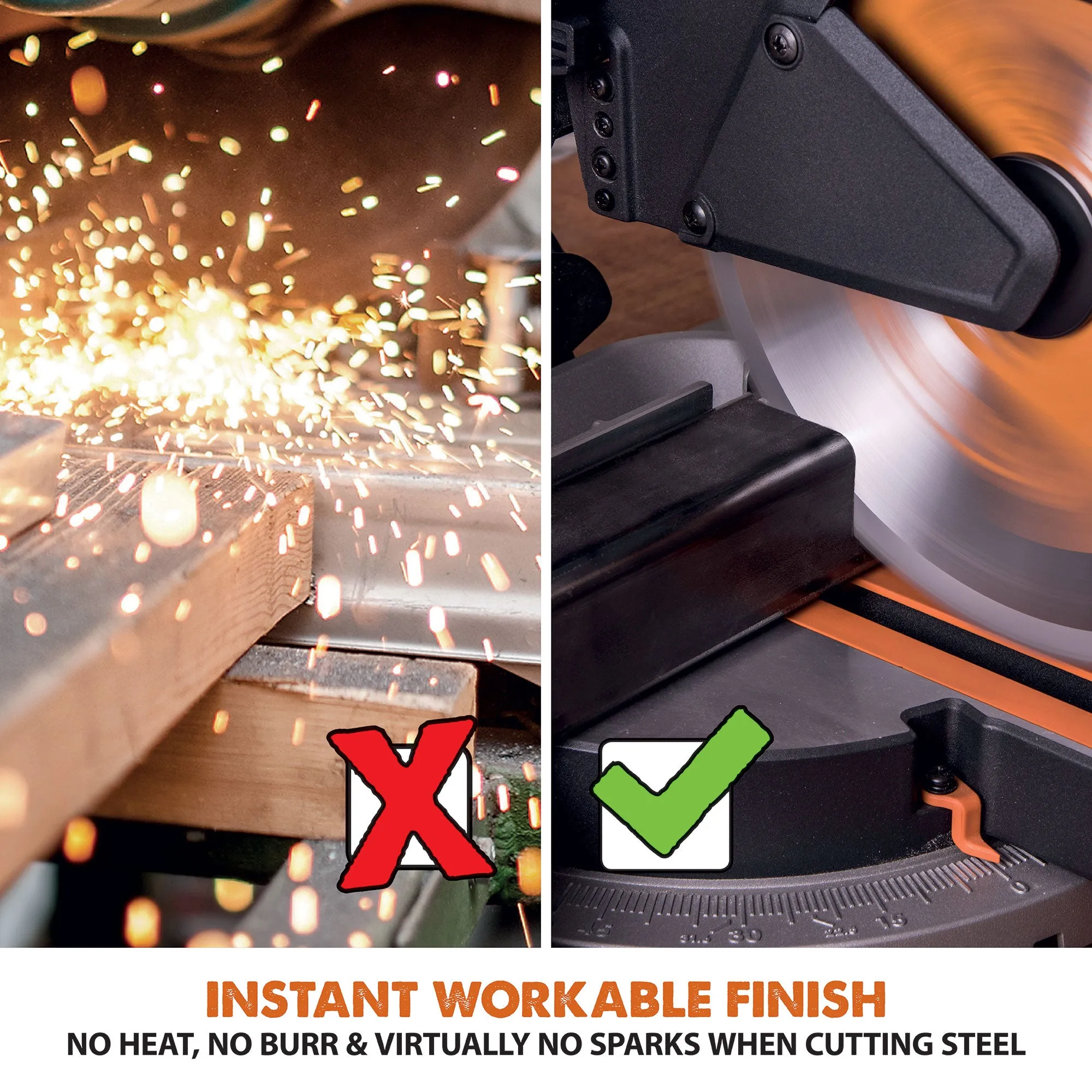

Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs, and virtually no sparks.

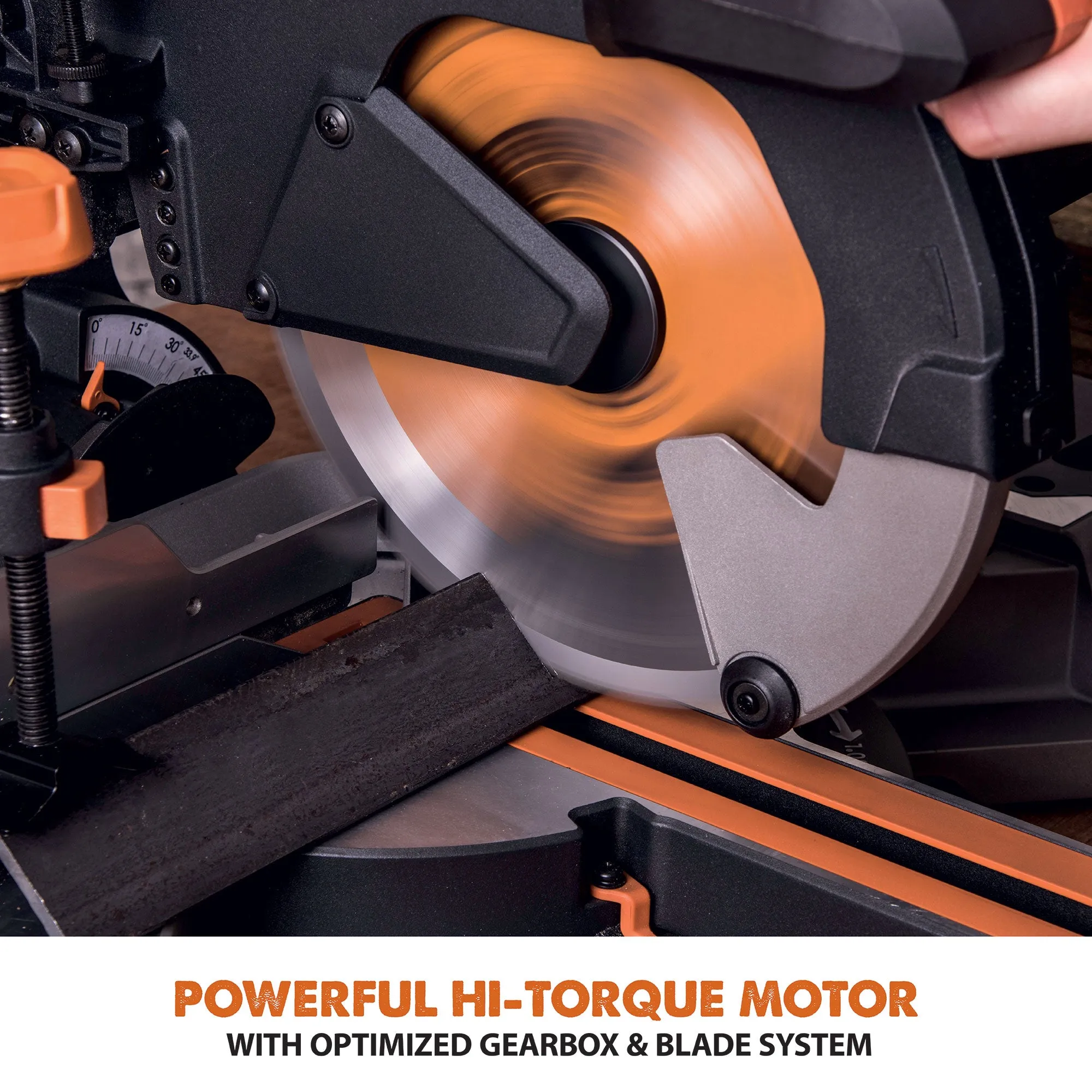

Powerful 15A hi-torque, optimized gearbox, and blade system increase motor and blade life to cut through a variety of materials with ease.
Perform accurate Crosscuts, miter cuts, bevel cuts and Compound cuts with adjustable precision settings.

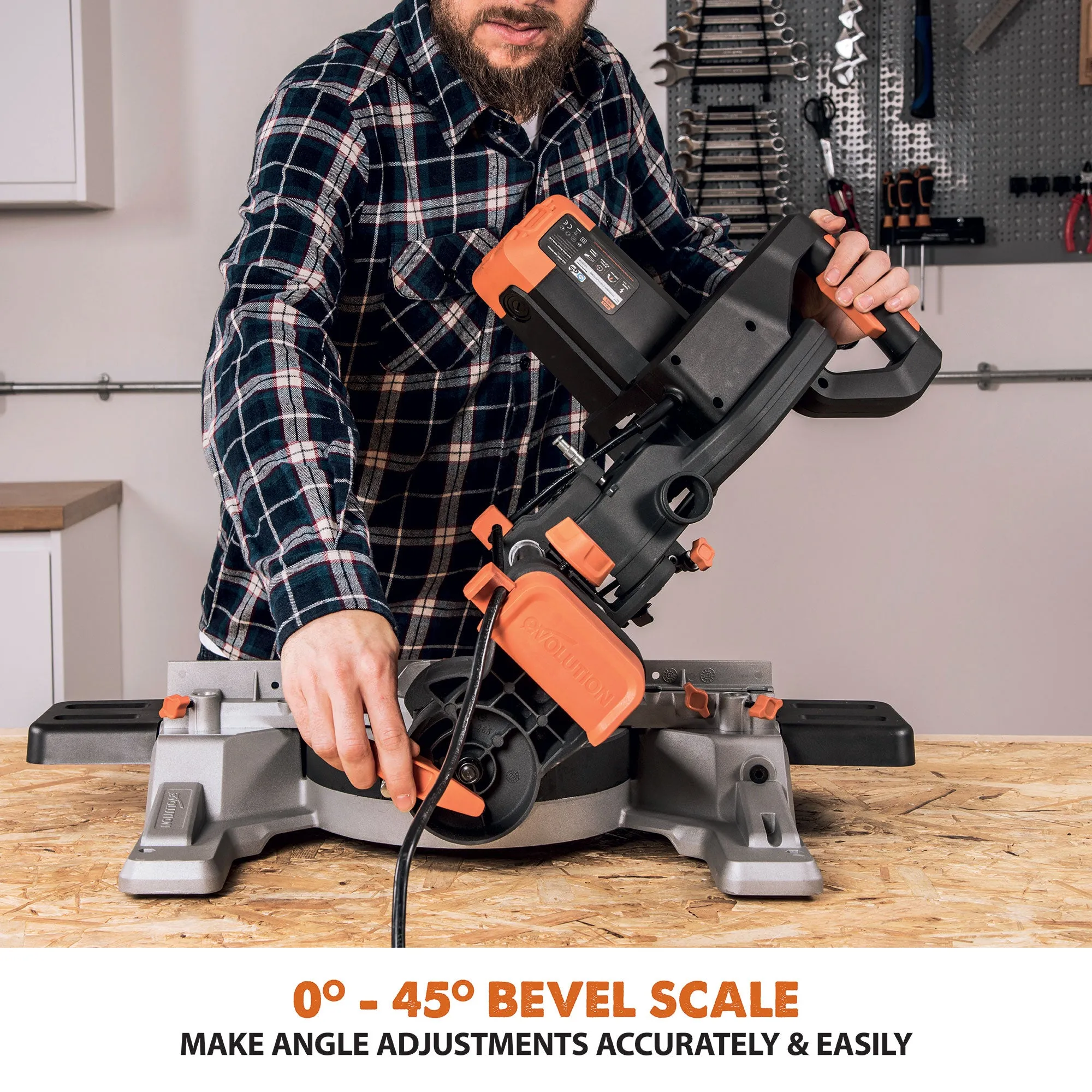

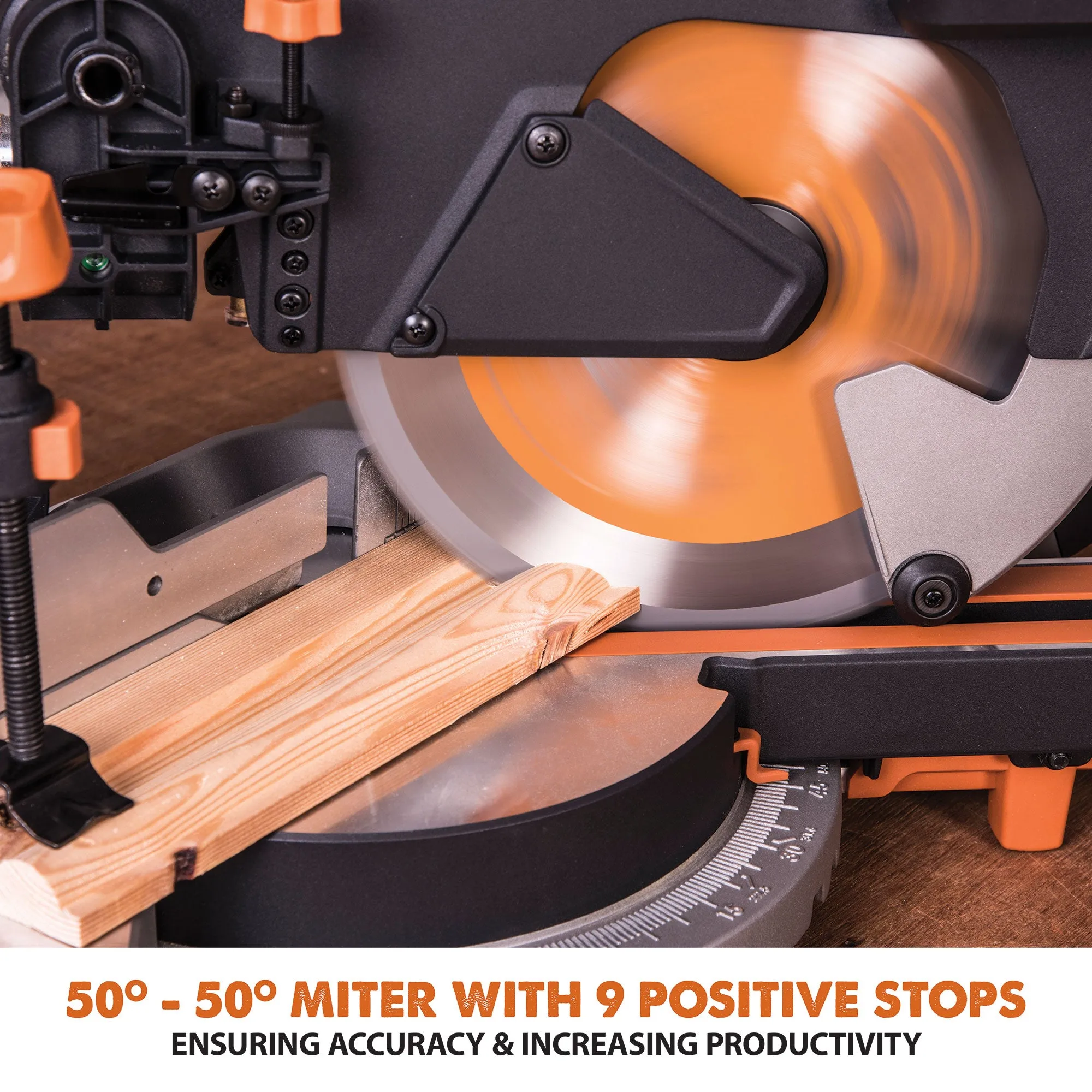

Cut to within /- 0.5˚ with 0° - 45° bevel tilt and 50˚ - 50˚ miter angles with quick click miter stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.

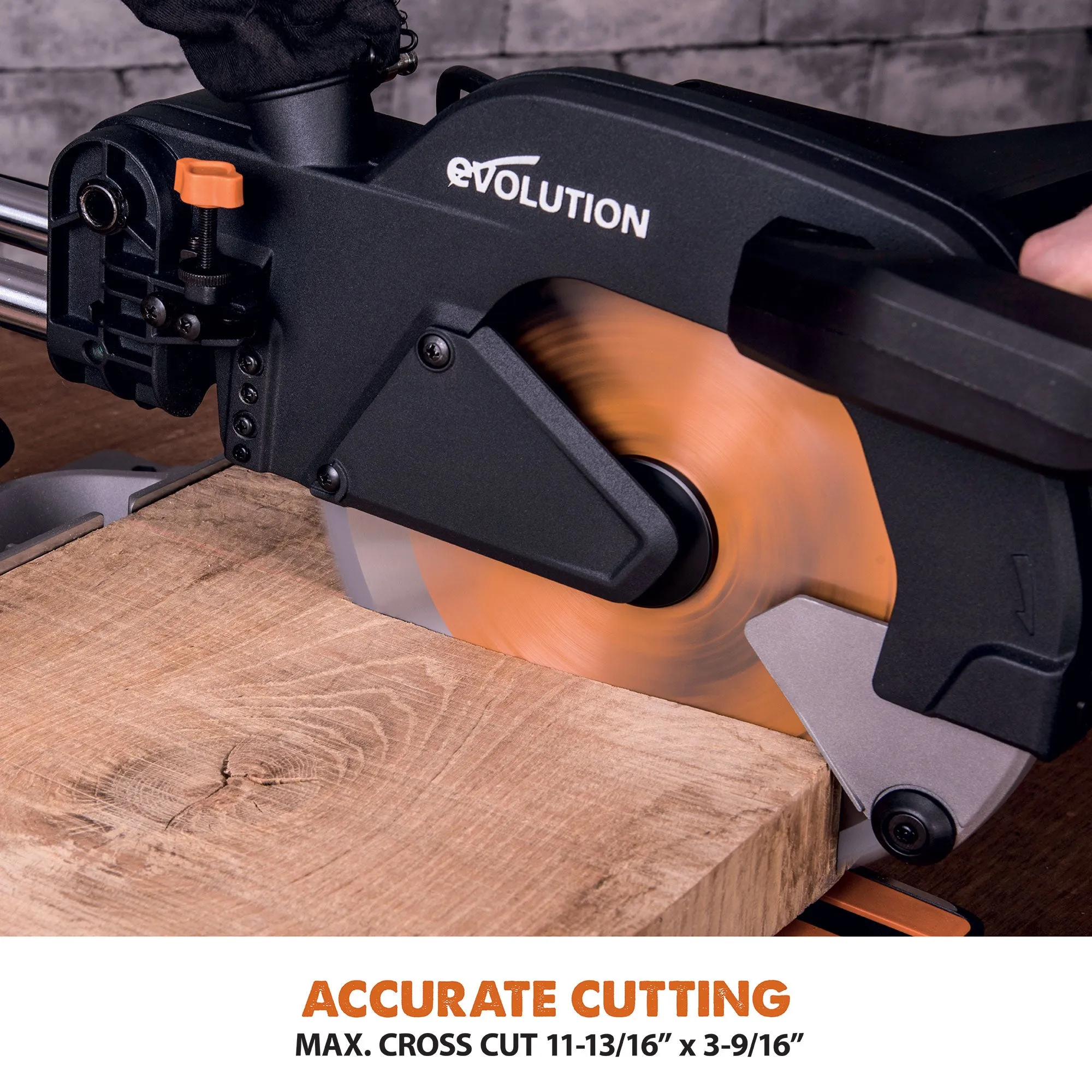

An impressive 11-3/4 x 3-1/8 inch crosscut capacity and 11-3/4 x 1-3/4 inch bevel cut capacity.

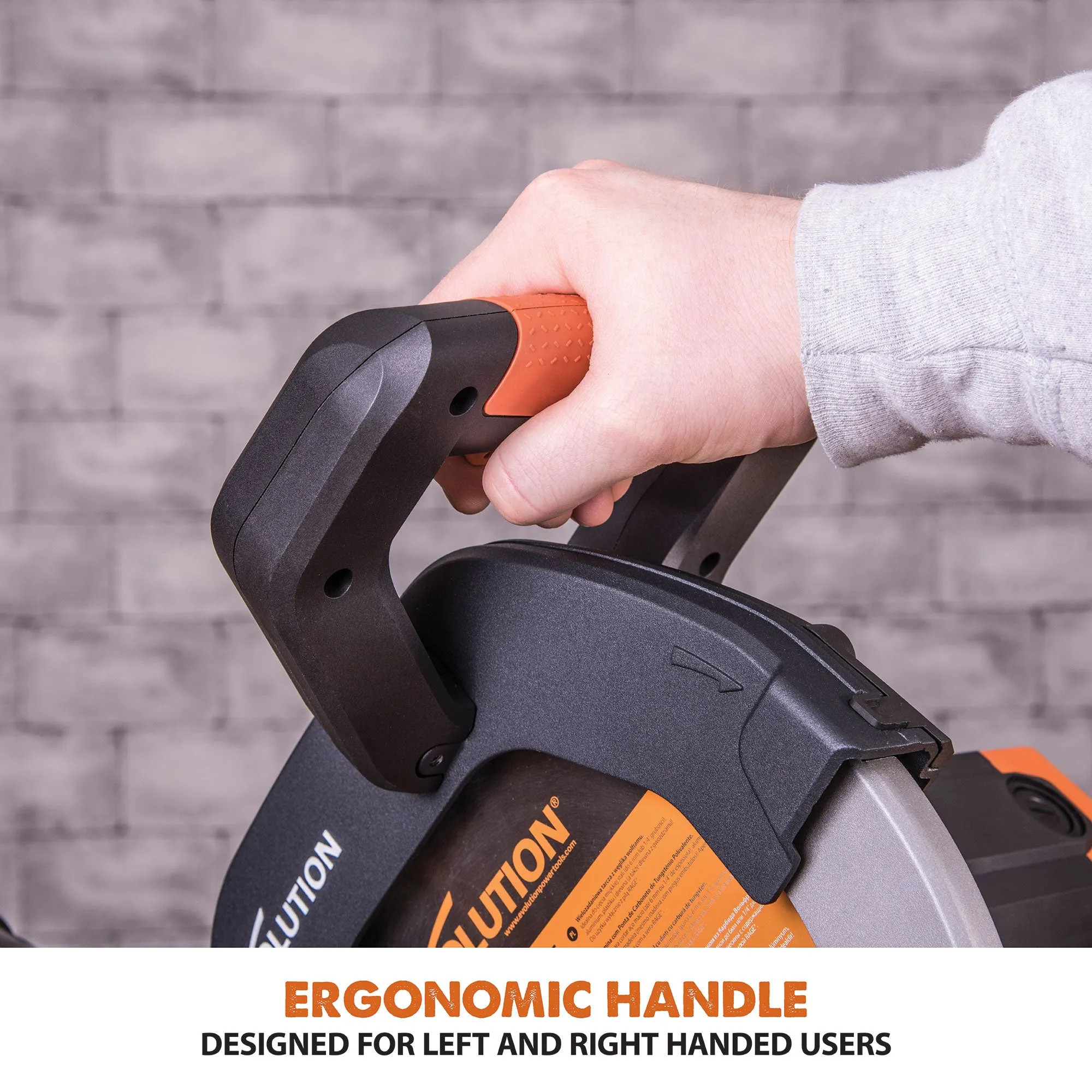

Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combat repetitive strain.

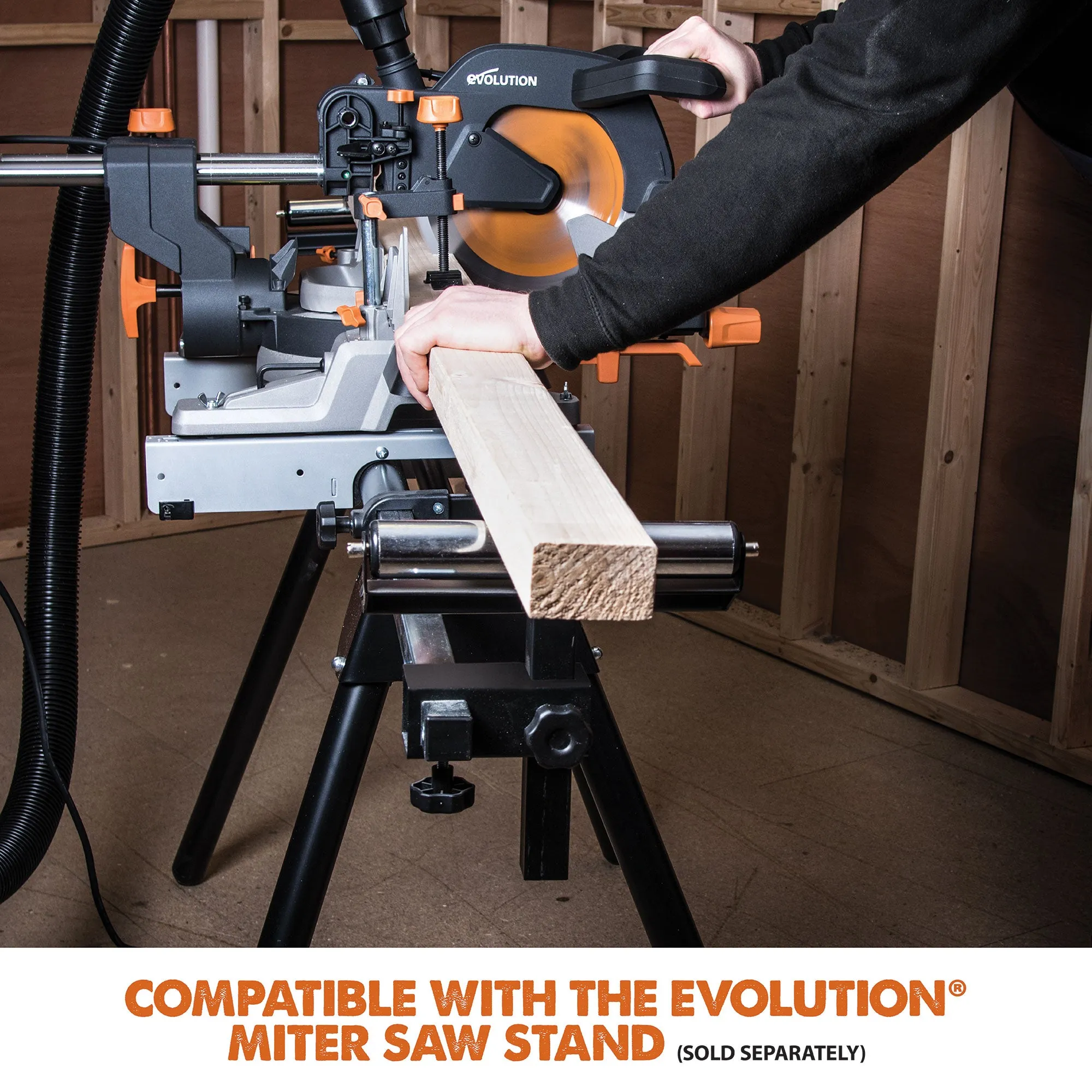

Compatible with Evolution's Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease.

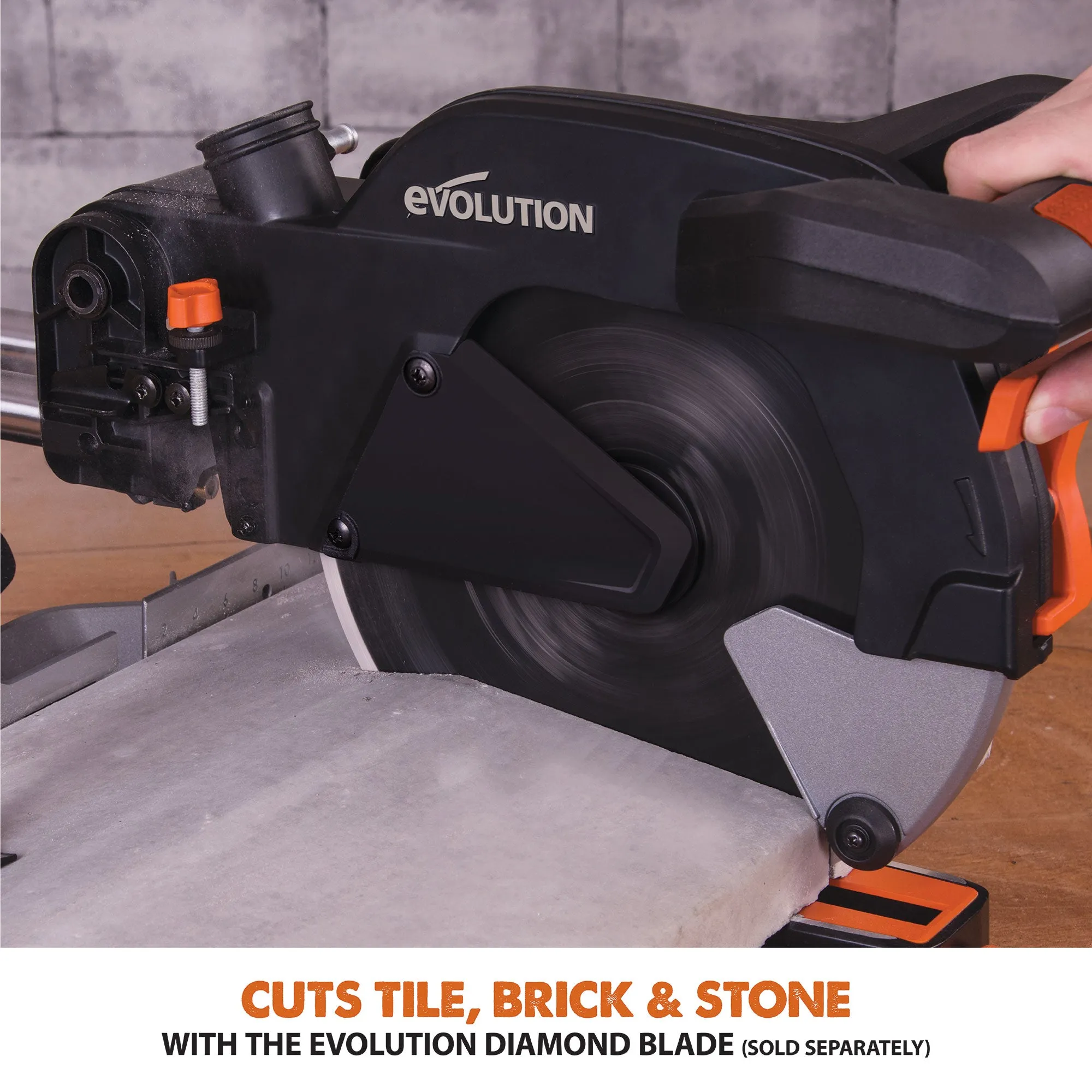

The Evolution 10 inch Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).

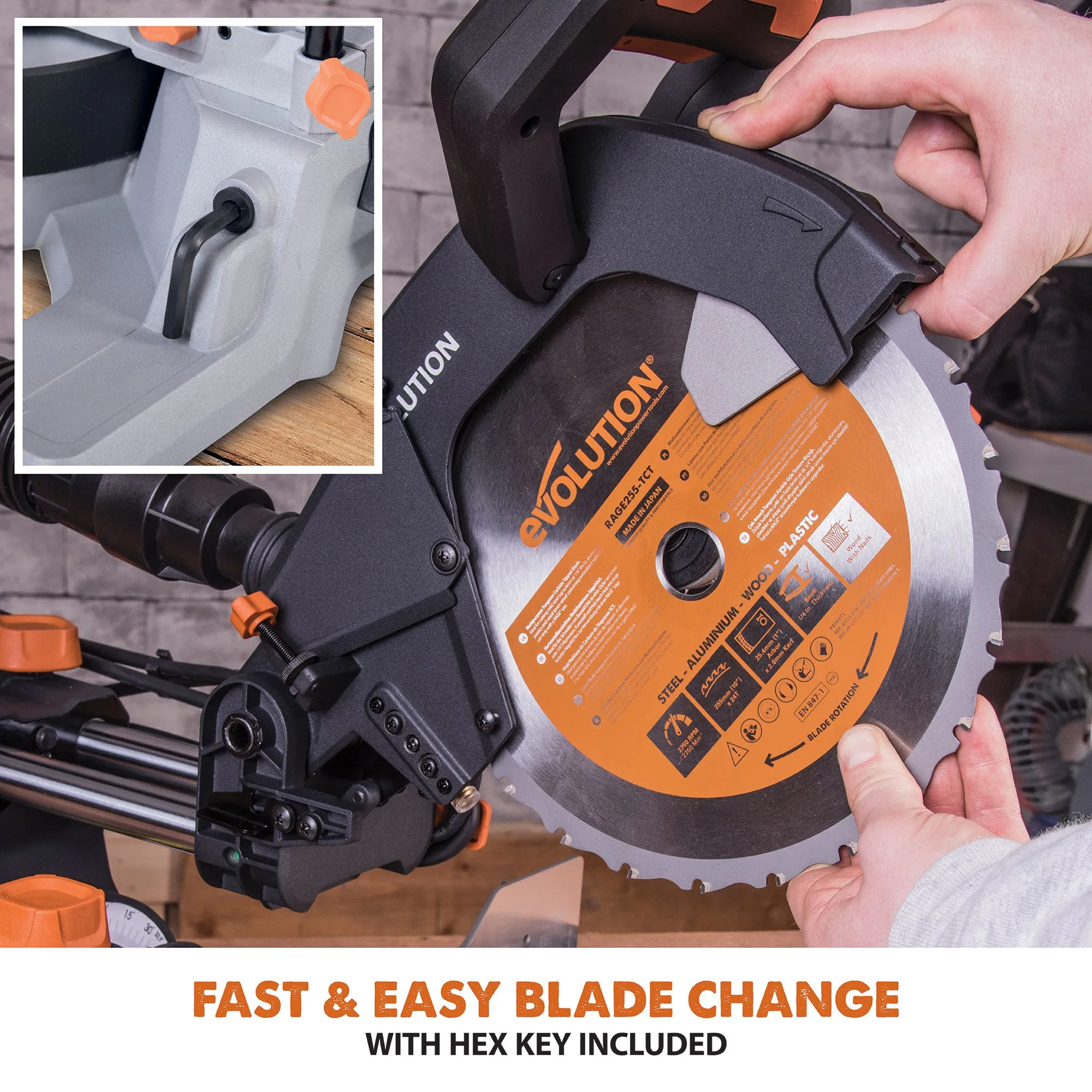

Japanese Tungsten-Carbide-Tipped (TCT) 10-inch blade included.
3 Year limited warranty.

Machine Spec

Motor (120V 60Hz):	15 A
Speed No Load:	2500 rpm
Max. Bevel (Left):	0° - 45°
Max. Miter:	50° - 50°
Cable Length:	6 ft

Blade Spec

Blade Dia.:	10 in.
No. of Teeth:	24
Bore:	1 in.
Kerf:	0-5/64 in.

Cutting Capacities

Max. Cross Cut (0° x 0°):	11-3/4 x 3-5/32 in.
Max. Bevel Cut (0° x 45°):	8-1/4 x 3-1/8 in.
Max. Miter Cut (45° x 0°):	11-3/4 x 1-3/4 in.
Max. Compound Cut (45° x 45°):	8-1/4 x 1-3/4 in.
Mild Steel Plate (Max. Thickness):	1/4 in.
Mild Steel Box Section (Max. Wall Thickness):	1/8 in.

Items Included

Machine Table Extensions	Double Ended Hex Key (M6 & M5)
Rotary Table And Neck	Cutting Head
Carriage Slides	Mitre Locking Knob
Mains Cable Guide/Clamp	Self Tapping Cap Screw
Socket Headed Screws	Cable Clamp Component
Double Ended Cable Clip	Slide Rail Protector
2pc Hold Down Clamp	10 inch 24 Tooth Blade

Dimensions & Weights

Product Dimensions:	14- 3/16 x 27-3/4 x 28-47/64 in.
Packaging Dimensions:	22-1⁄4 x 14-3⁄8 x 20-15⁄32 in.
Product Weight:	33.7 lbs
Packaged Weight:	39.2 lbs

Noise Data

Sound Pressure Level L_PA:	95,8 dB(A) K=3 dB(A)
Sound Power Level L_WA:	108,8 dB(A) K=3 dB(A)

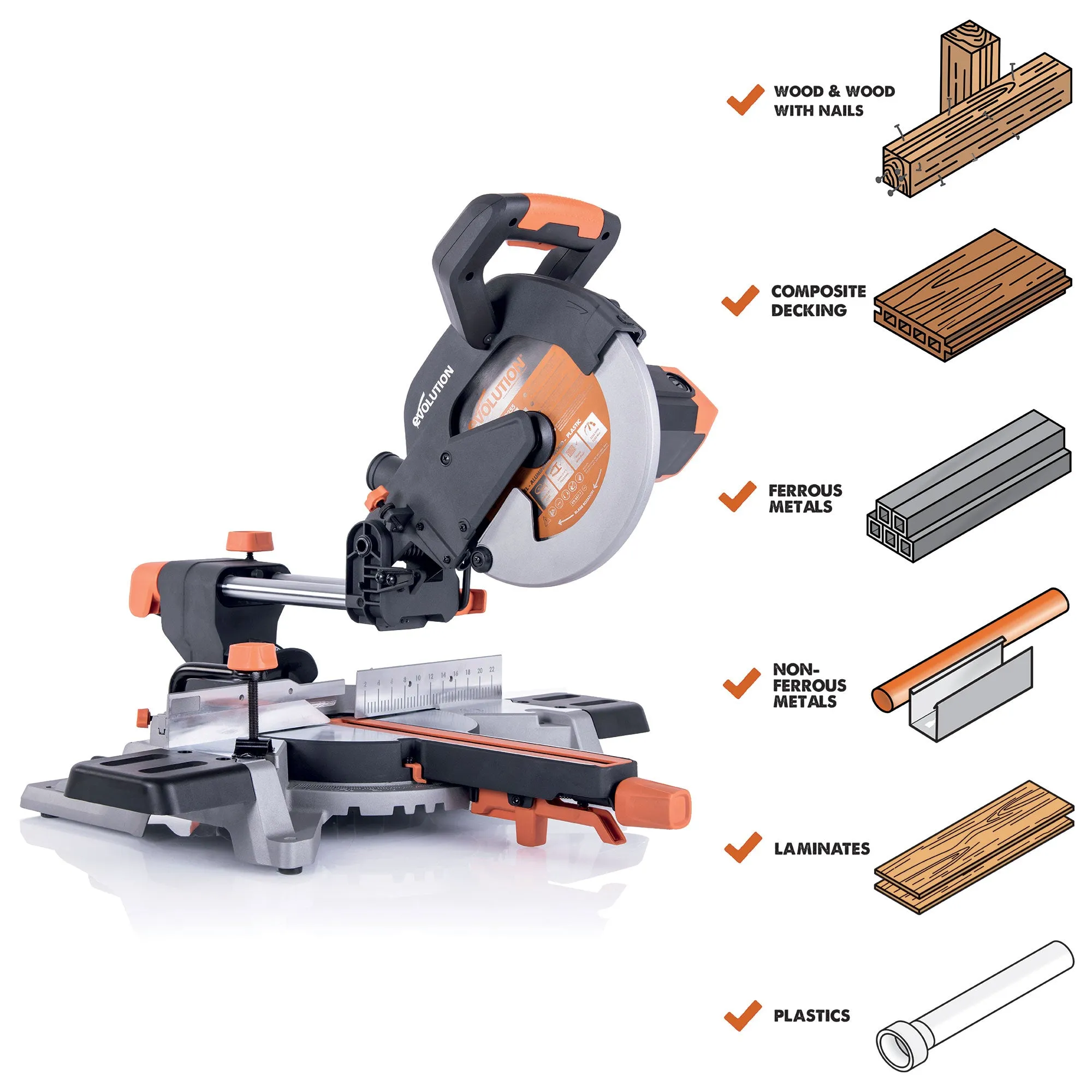

Cutting Applications

Wood	Hardwood & tanalized decking, MDF laminates, moldings, reclaimed wood with nails, scaffold boards & poles, stud-work.
Ferrous Metal	Mild Steel, angled, box section, square tube, metal stud drywalling, rebar, RSJs, plate (1/4 inch), unistrut.
Non-Ferrous Metal	Aluminum, armored cables, cable tray, copper, floor edgings, roof flashings, stair nosings.
Plastic	Electrical conduit, plastic pipes, plexiglass, rubber & reinforced hoses, (WPC) Wood Plastic Composites.
Not Recommended	Hardened high carbon, coated and stainless steel. Note: Cutting galvanized steel may reduce blade life.
