| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | AXL F DO16/3 2F |
| Approvals | UL Listed, cUL Listed, BSH, BV, LR, ABS, NK, EAC, DNV GL, RINA, cULus Listed, PRS |
| Connection Type | Bus base module |
| Depth | 54 mm |
| Height | 129.9 mm |
| IP Rating | IP20 |
| Mounting Type | DIN Rail Mount |
| Number of Outputs | 16 Output |
| Protection Class | III, IEC 61140, EN 61140, VDE 0140-1 |
| Series | |
| Transmission Speed | 100 Mbps |
| UPC Code | 4046356501583 |
| Width | 53.6 mm |
Overview

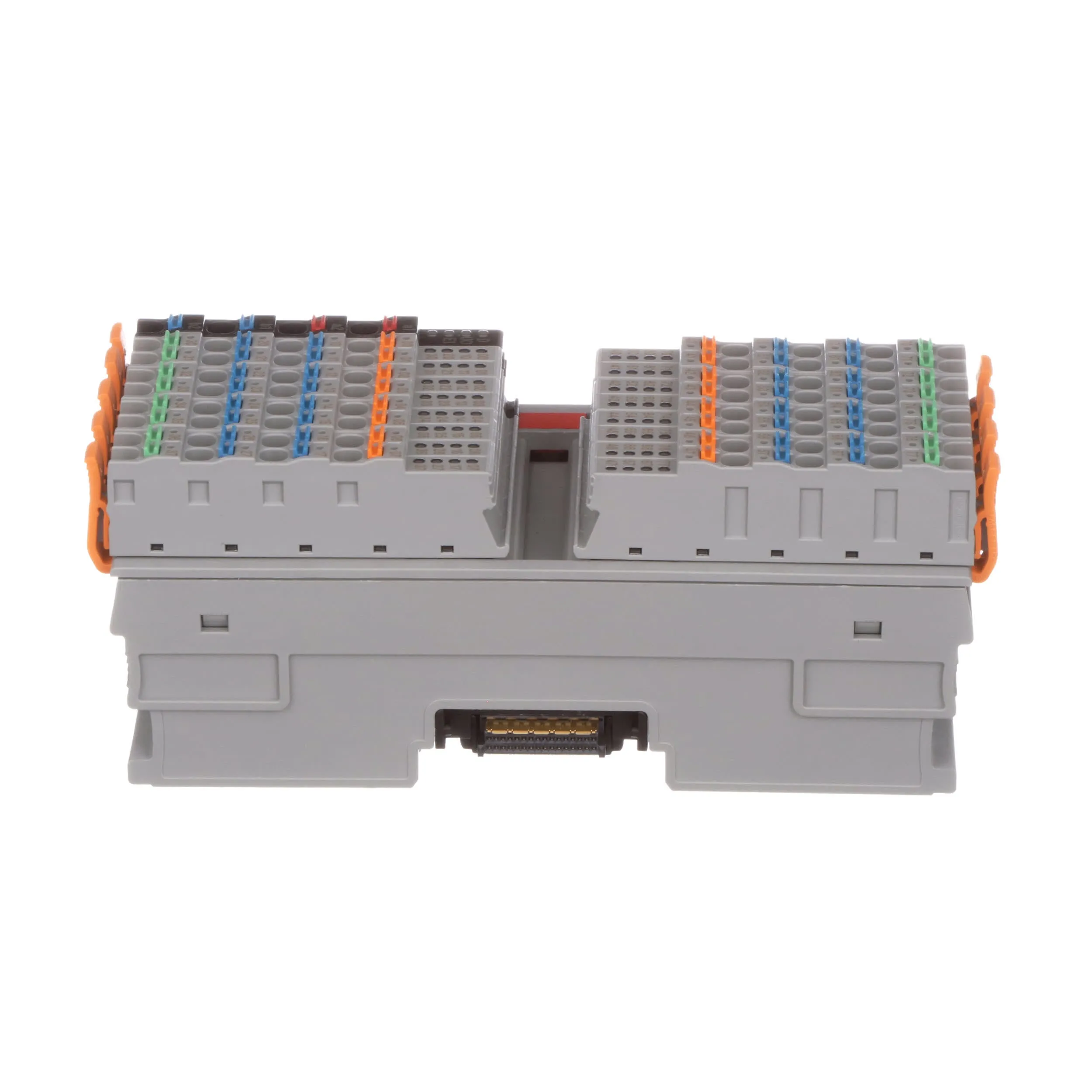

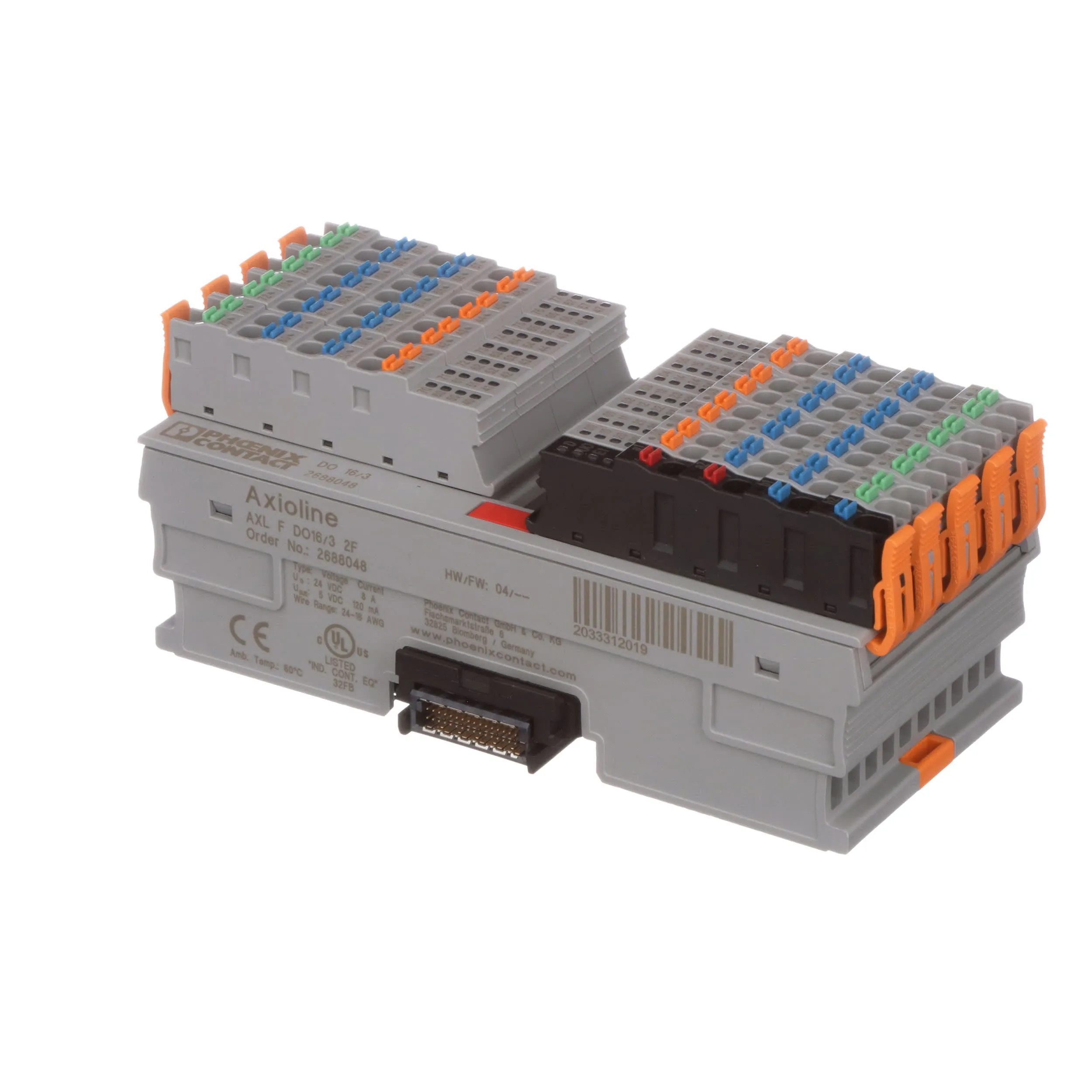

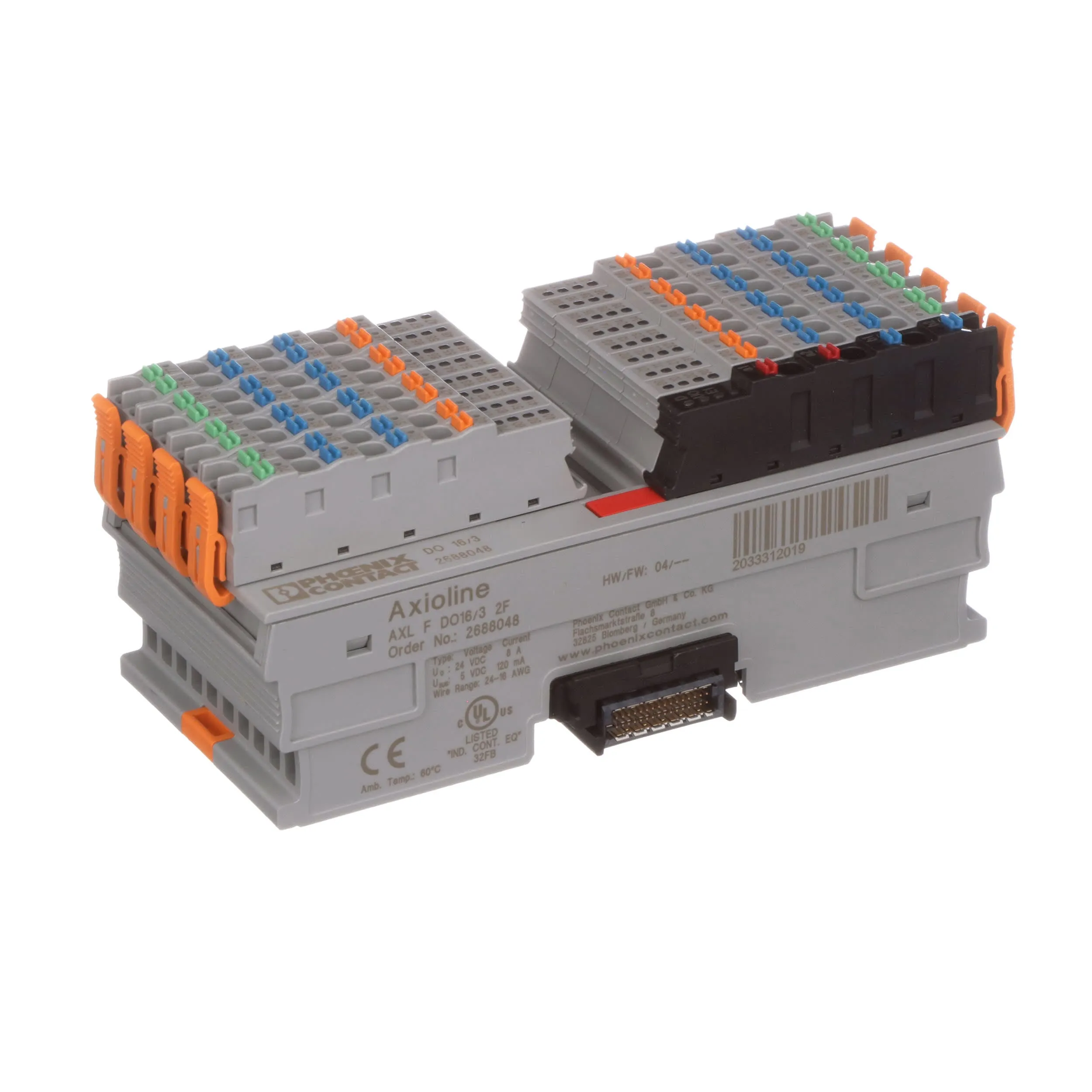

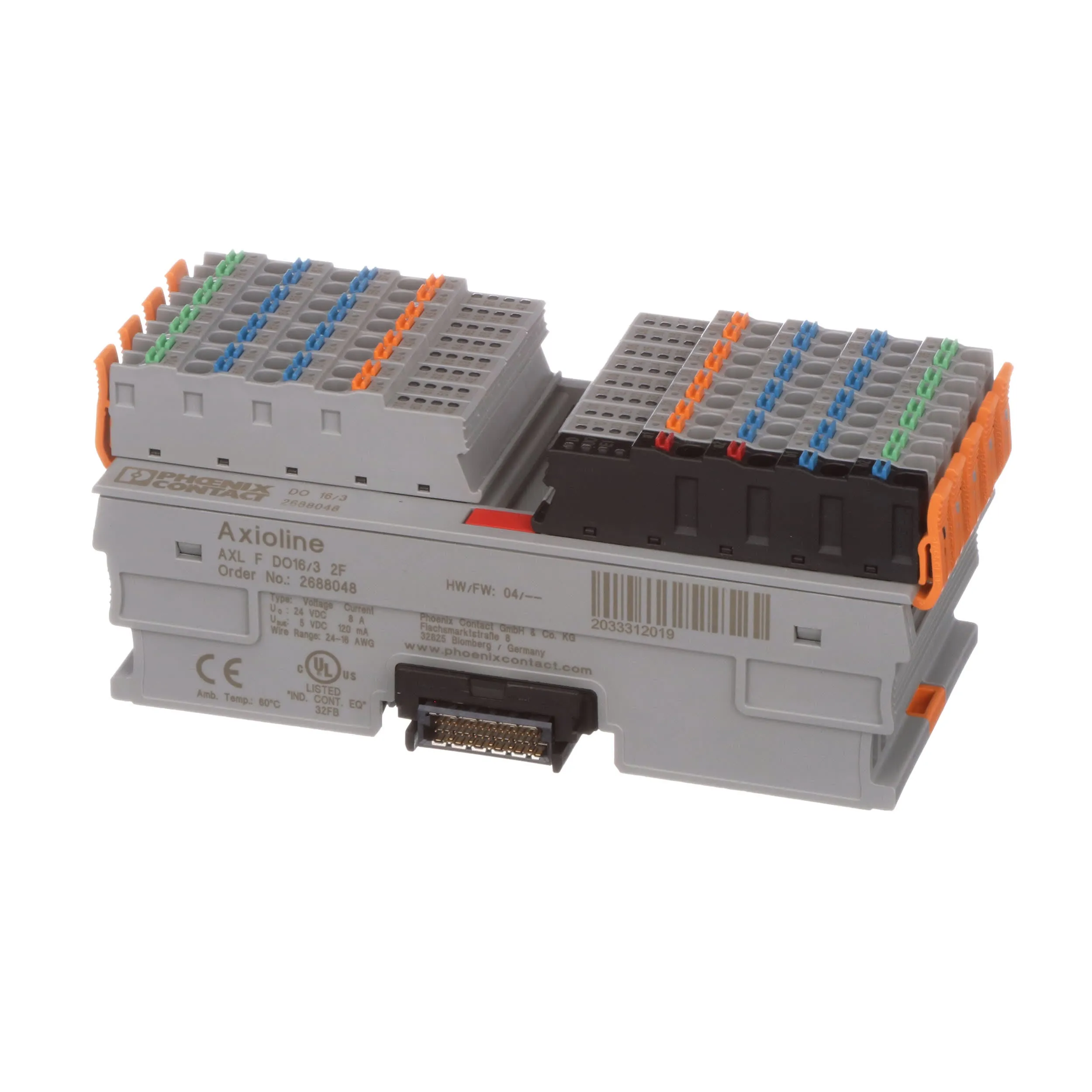

Phoenix Contact Axioline F Series – I/O systems for the control cabinet (IP20):
Axioline F is the fast, particularly robust I/O system with high signal density. Two new input modules for use in energy applications in accordance with IEC 61850 and a function module for evaluating magnetostrictive position sensors are being added to the product range.
Axioline F is the modular I/O system for the control cabinet. Open to all Ethernet-based communication protocols and available in various designs, Axioline F offers maximum flexibility. With Axioline F, you can transmit data in real time from the I/O level to the controller – Axioline F is particularly resistant to interference and EMI. Various safe I/O modules also enable safety-related signals to be acquired and output.
Features:
