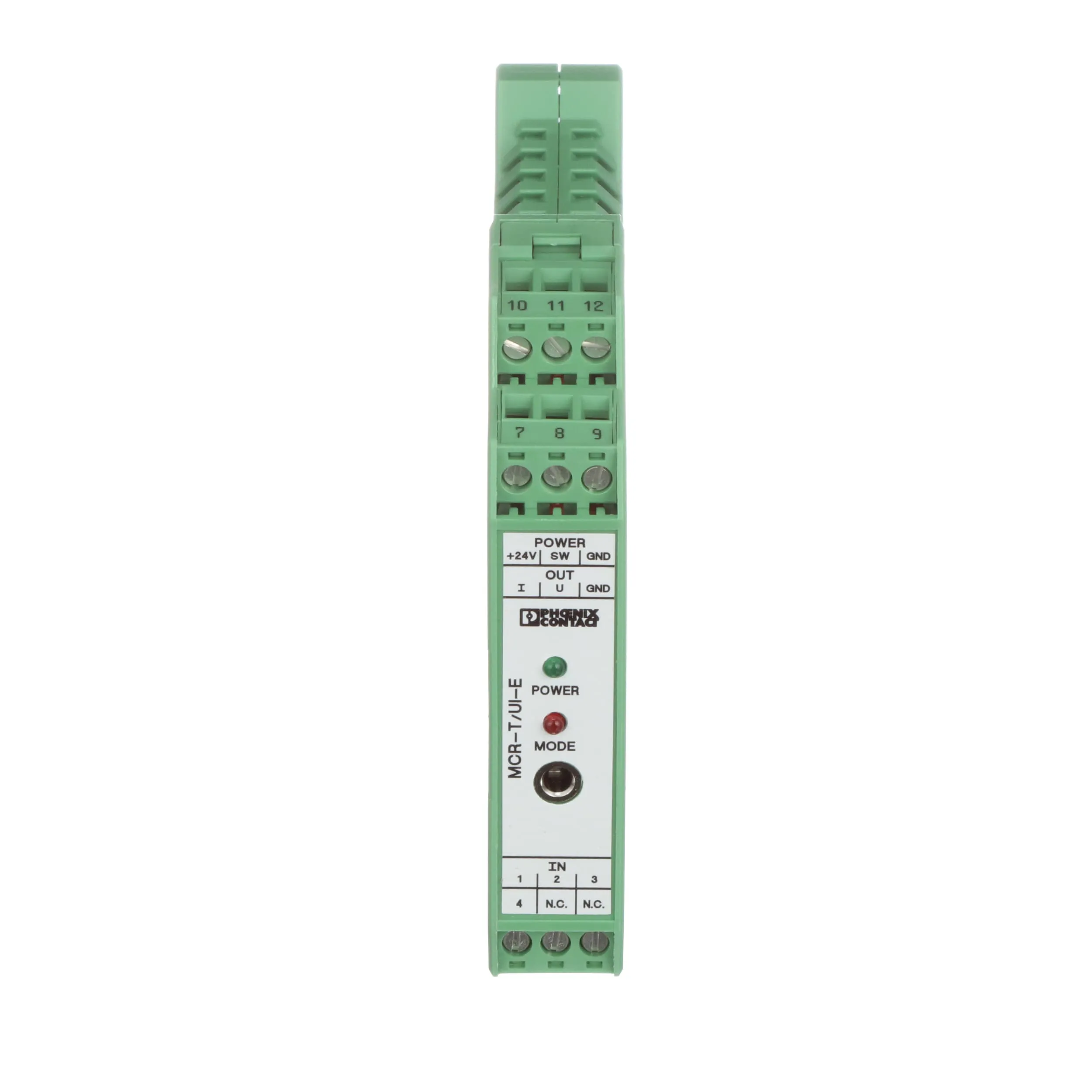

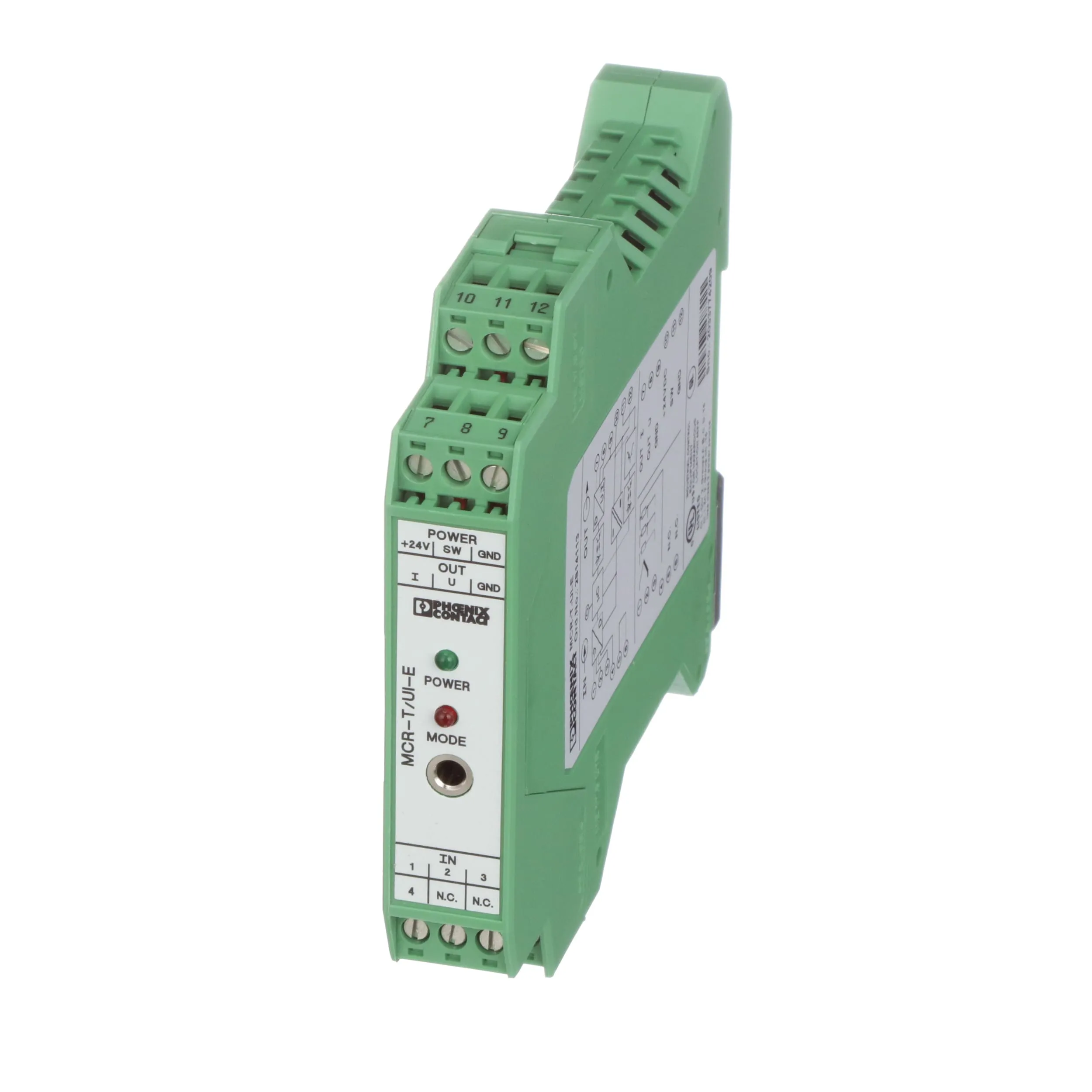

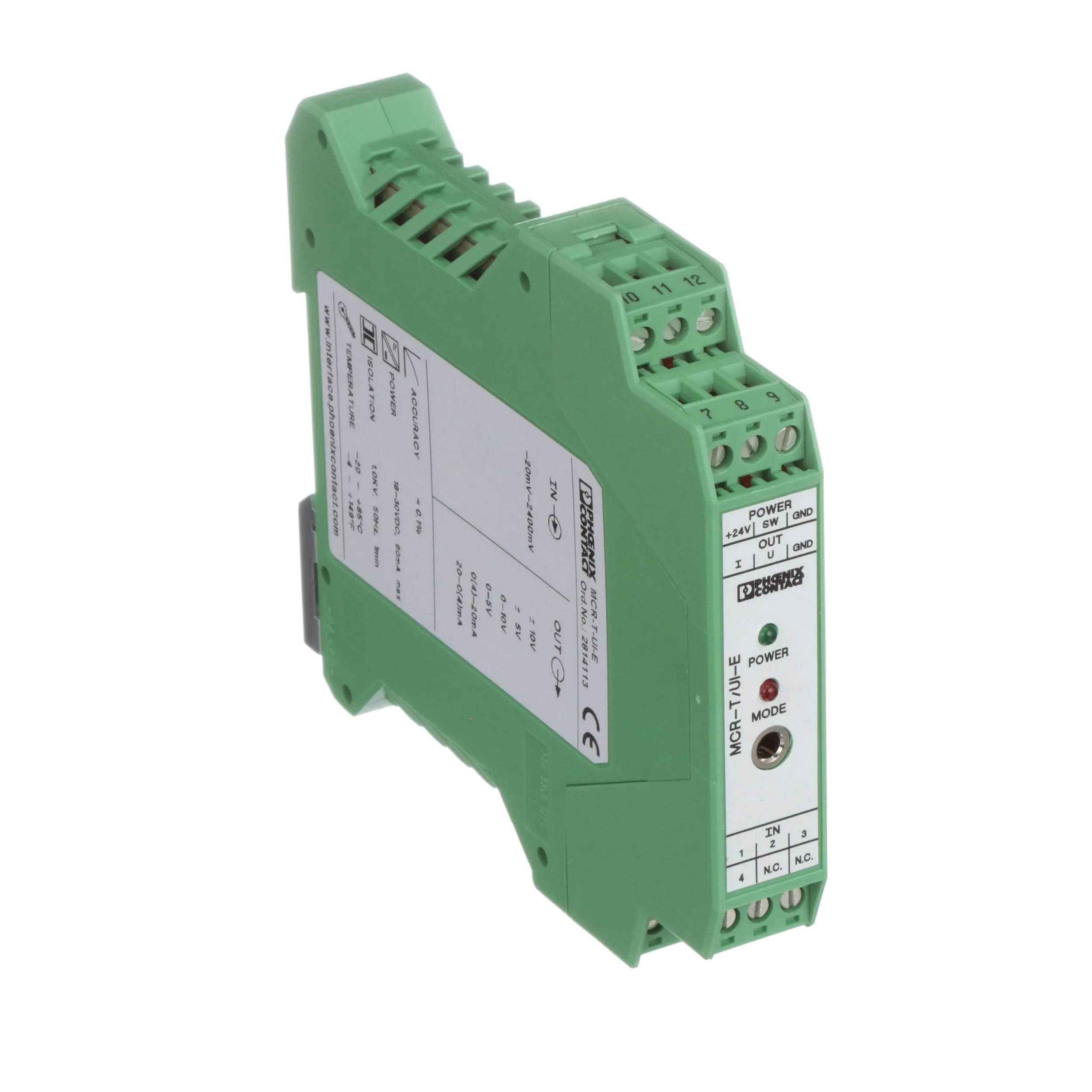

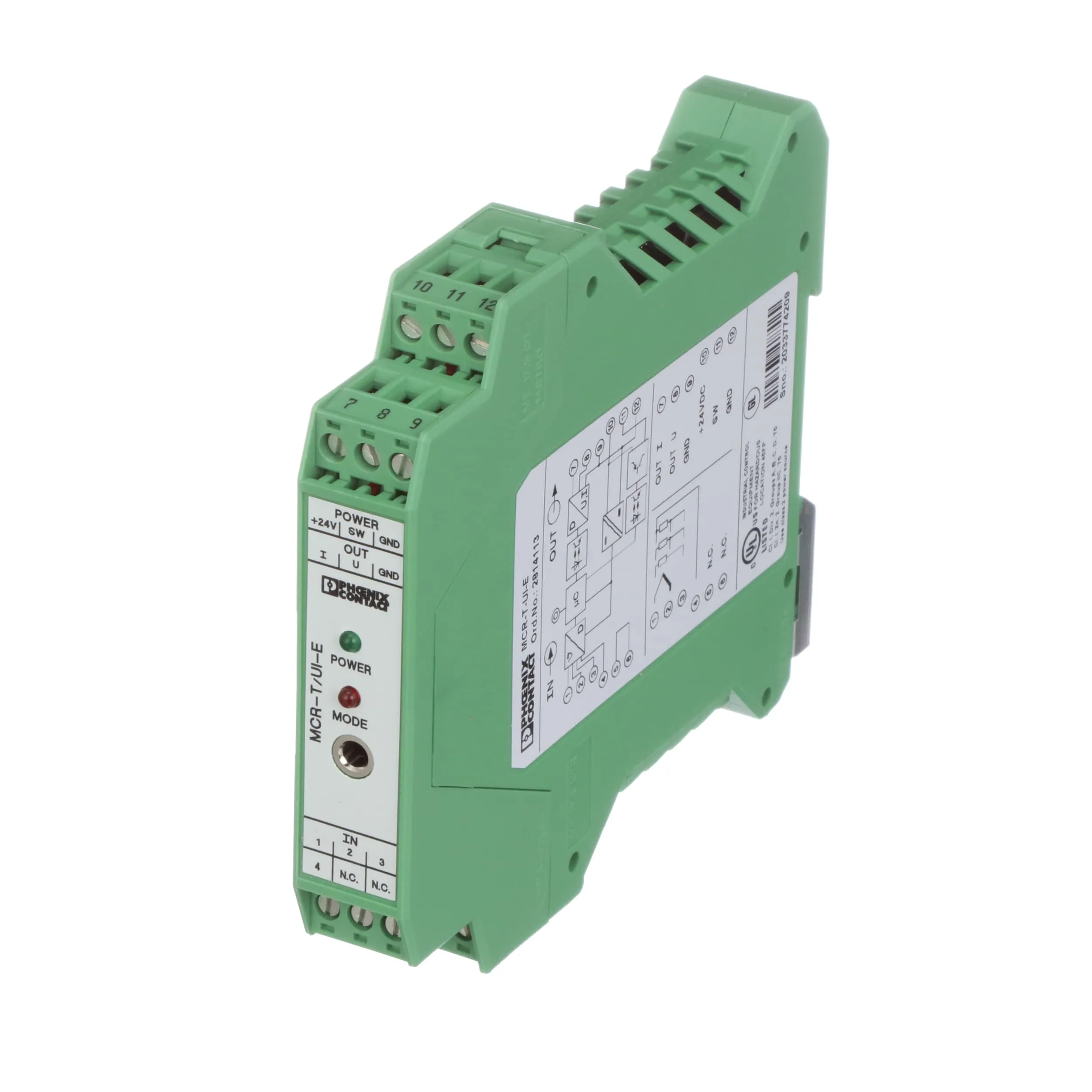

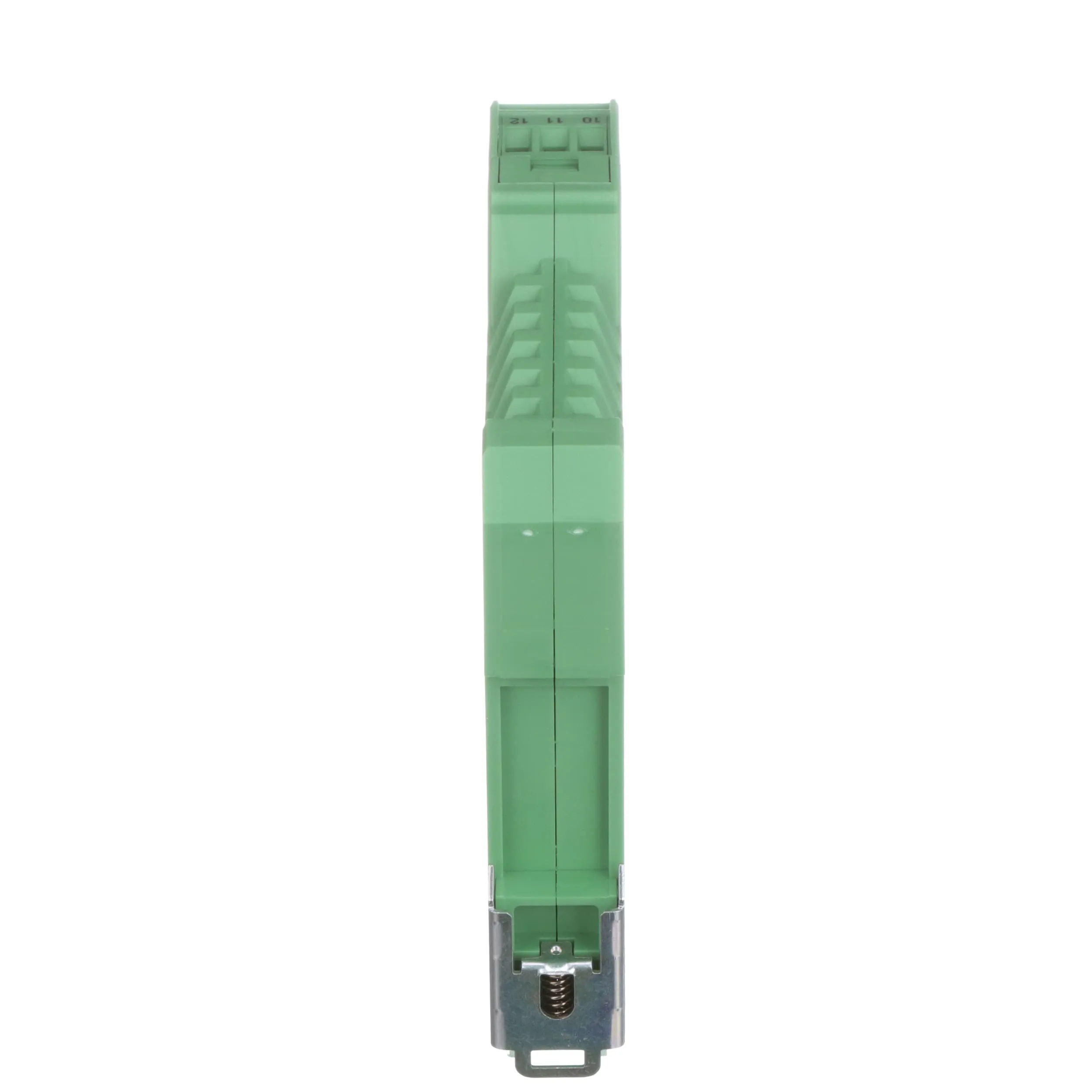

Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | MCR-T-UI-E-NC |
| Current Rating | 24 mA |
| Input Type | Analog |
| Interface | Plug |
| Module Type | Programmable Temperature Measuring Transducer |
| Mounting Type | DIN Rail |
| Number of Channels | 2, 3, 4 |
| Output Type | Digital |
| Series | |
| Special Features | Freely Programmable via MCR, PI-CONF-WIN, With Transistor Switching Output, Measure Differential Temperatures, Inverse Output Signal Ranges as an Option, For Resistance Thermometers and Thermocouples |
| Supply Voltage | 18 to 30 VDC |
| Termination | Screw |
| Type | Temperature Measuring Transducer |
| UPC Code | 4017918139445 |
Overview
Phoenix Contact MCR Series – MINI Analog highly compact signal conditioners:
Maximum signal quality with minimal space requirements – MINI Analog signal conditioners isolate, convert, filter, and amplify your analog signals – with a design width of just 6.2 mm. The configurable MINI Analog modules are easy to set with DIP switches – without the need for any software. Alternatively, Phoenix Contact can make the settings based on your individual ordering information.
Features:
For enhanced functionality and monitoring, you can also configure the modules with the robust S-Port interface conveniently using a free-of-charge software interface. Here you can choose between three solutions:
1. Standalone ANALOG -CONF software
2. FDT/DTM software package
3. Standalone DTMs, allowing you to use your existing FDT frame application
